Continuous Curve Switch


Product Details
DESCRIPTION
These switches are fully compatible with RC/PF LEGO® train tracks.
  • The continuous curve switches are designed to fit into a curve.

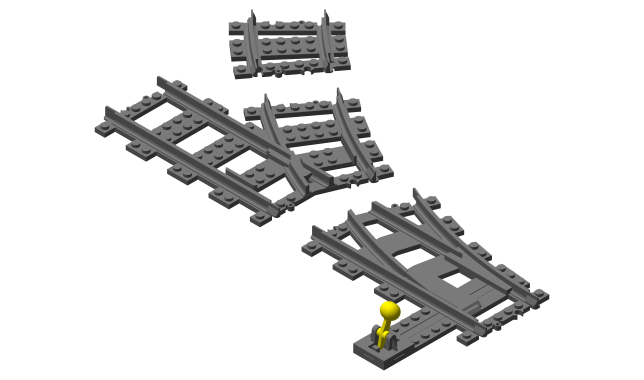

  • They are modular, they consist of 3 track parts that can be used to build different types of switches.
  • They come in a left-turn and right-turn variant.
  • Due to the modular design, the position of the ground throw can be fully customized.
All our switches have a spring mechanism so trains can pass even if the switch is not in the 'correct' postion. They have a LEGO® style ground throw so they will blend in seamlesly with your other switches. The switches are also fully compatible with our track switch motors, so they can easily be motorized.


DIMENSIONS

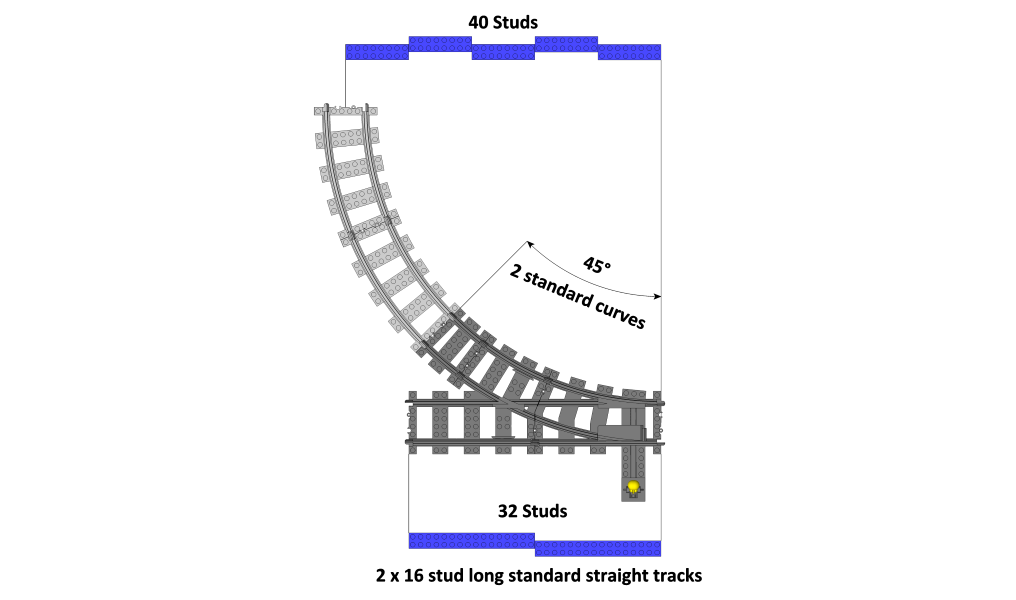

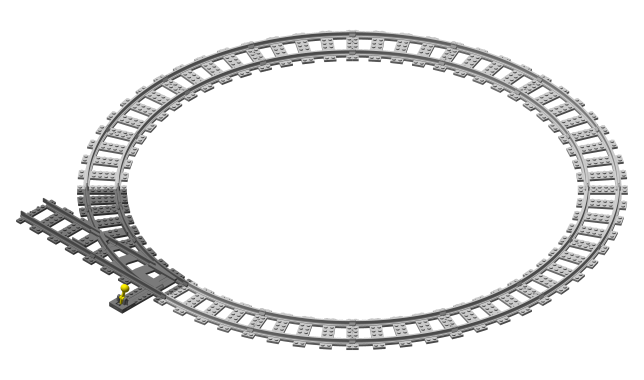

The continuous curve switches are designed to be fully compatible with the LEGO® grid. They fit right into a curve made with standard R40 curves. The curved part covers an angle of 45 degree which is the equivalent of 2 LEGO® curves. The straight part covers a distance of 32 studs, which is equivalent to 2 LEGO® straight tracks.

COLOR
Dark Bluish Gray; our train tracks are made in the same gray as the RC/PF train track.

MATERIAL
3D printed ABS

QUESTIONS
Don't hesitate to contact us if you have questions concerning our train tracks.



Sets

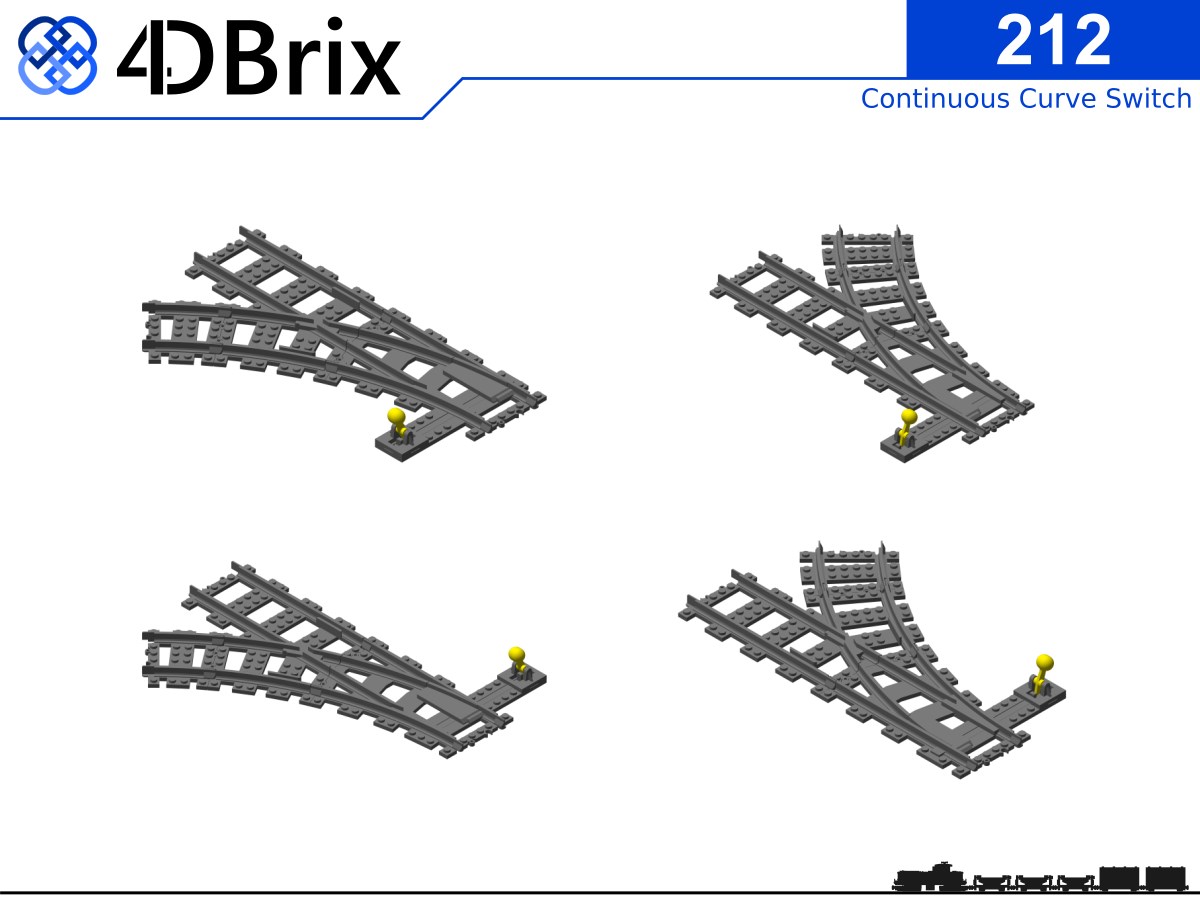

The single crossovers are available as 4DBrix™ set 212. There are four variants:

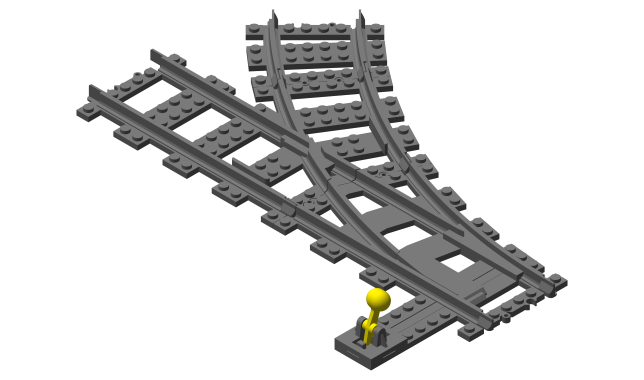

  • set 212.1: Right turn continuous curve switch with ground throw on the outside
  • set 212.2: Right turn continuous curve switch with ground throw on the inside

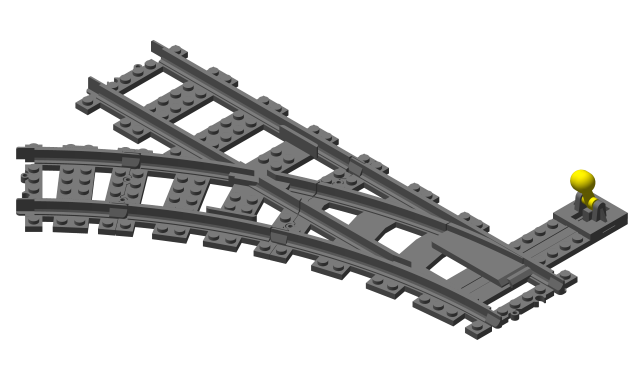

  • set 212.3: Left turn continuous curve switch with ground throw on the outside

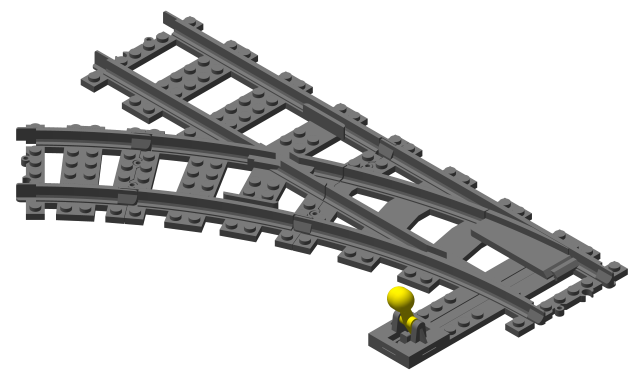

  • set 212.4: Left turn continuous curve switch with ground throw on the inside

Set image

Price Table
US flag$22.95webshop4DBrix Store 4DBrix Store
US flag€24.95webshopwebshop on bricklink
World flag$22.95webshop4DBrix Store 4DBrix Store
Set image

Price Table
US flag$22.95webshop4DBrix Store 4DBrix Store
US flag€24.95webshopwebshop on bricklink
World flag$22.95webshop4DBrix Store 4DBrix Store
Set image
Price Table
US flag$22.95webshop4DBrix Store 4DBrix Store
US flag€24.95webshopwebshop Bricklink Store
World flag$22.95webshop4DBrix Store 4DBrix Store
