Home > Products > Trains > Tracks

Set 210.2 - Double Crossover - Inside/Outside

Introduction

Set 210.2 is a double crossover with two ground throws on the outside and two on the inside. It's equivalent to the discontinued LEGO® set 7996.

Features

There are a few significant improvements compared to the LEGO® 7996:

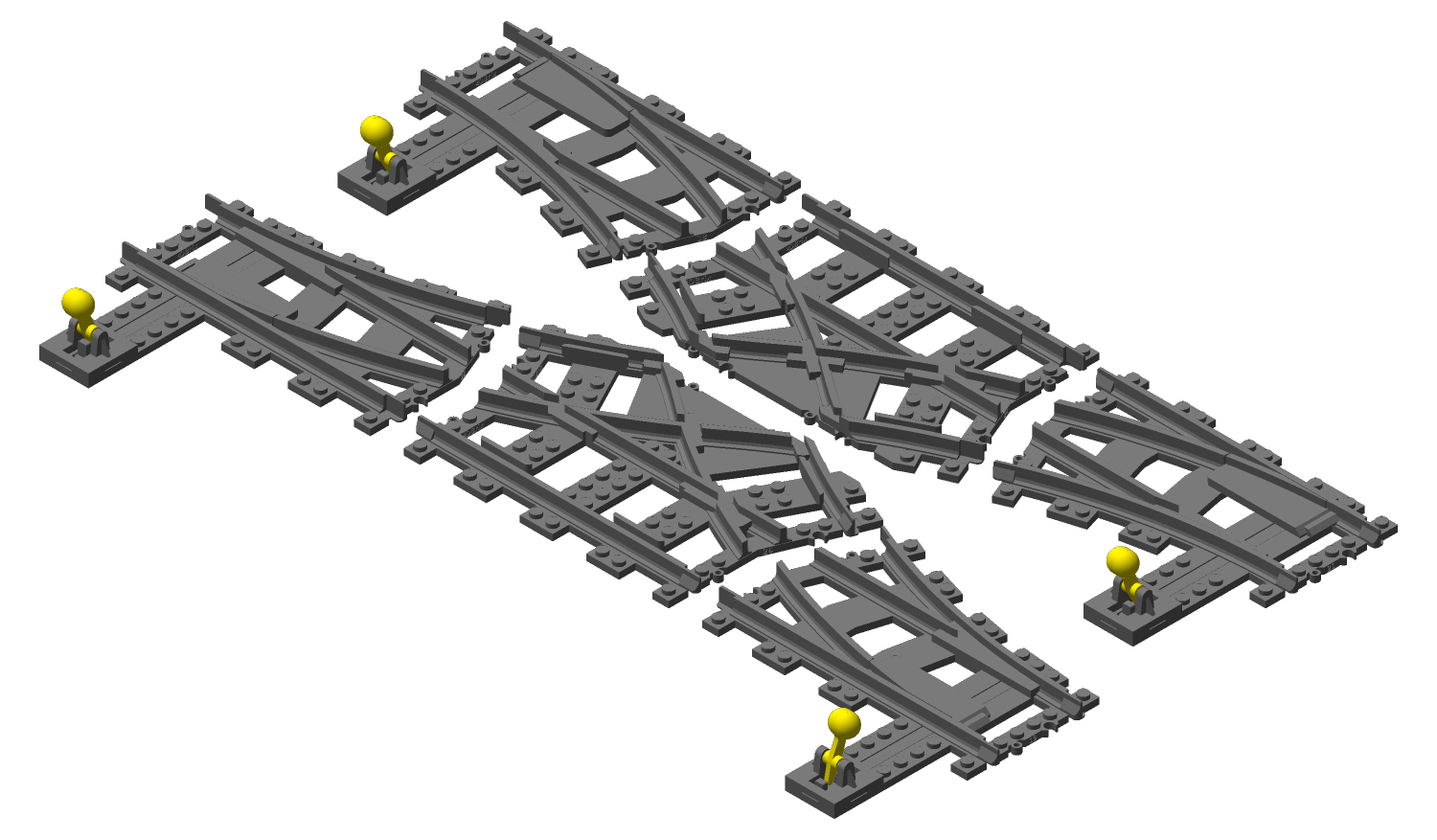

The crossover is modular, it consists of 6 track parts that can be used to build different types of switches.
The 4 switches of the crossover are independent, this means that two trains can pass the crossover simultaneously.

All our switches have a spring mechanism so trains can pass even if the switch is not in the 'correct' position. They have a LEGO® style ground throw so they will blend in seamlessly with your other switches.

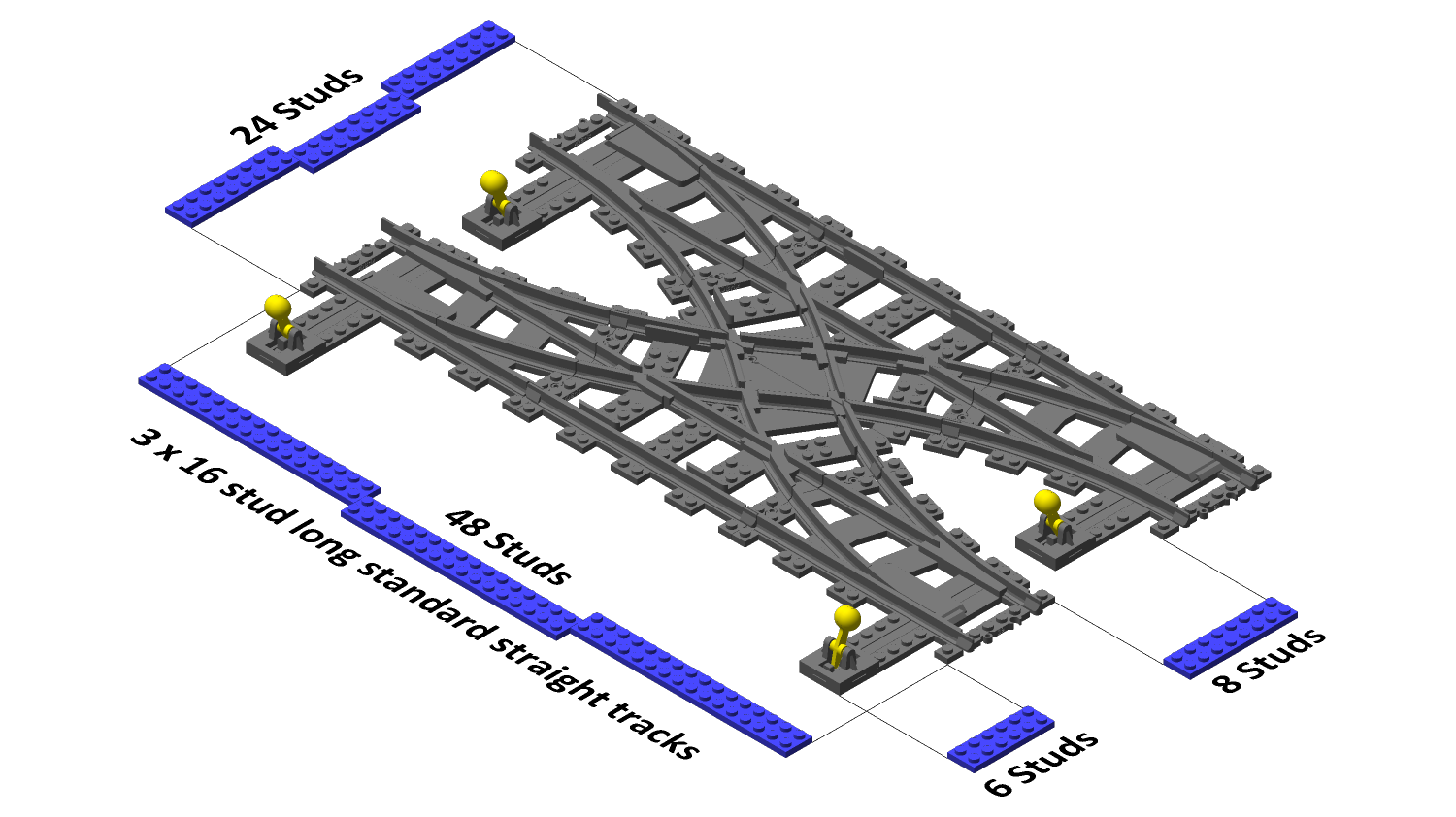

Dimensions

The double crossover is designed to be fully compatible with the LEGO® grid. It fits into layouts that have parallel tracks spaced at an 8 stud distance.

Variants

Our double crossovers come in a number of variants:

210.1: with the ground throws on the outside. This configuration has optimal ground throw accessibility. It can also be automated with our track switch motors.
210.2: with the ground throws on the inside/outside This configuration has a smaller foot print. It cannot be automated with our track switch motors, there is not enough space to mount the motor on the inside switch tracks.
210.3: with the ground throws on the inside. This configuration has the smallest foot print; it has the same footprint as the LEGO® 7996. In order to get all the ground throws on the inside they had to be moved 2 studs closer to the tracks. The ground throws are far enough from the track for standard LEGO® trains and cars to pass.

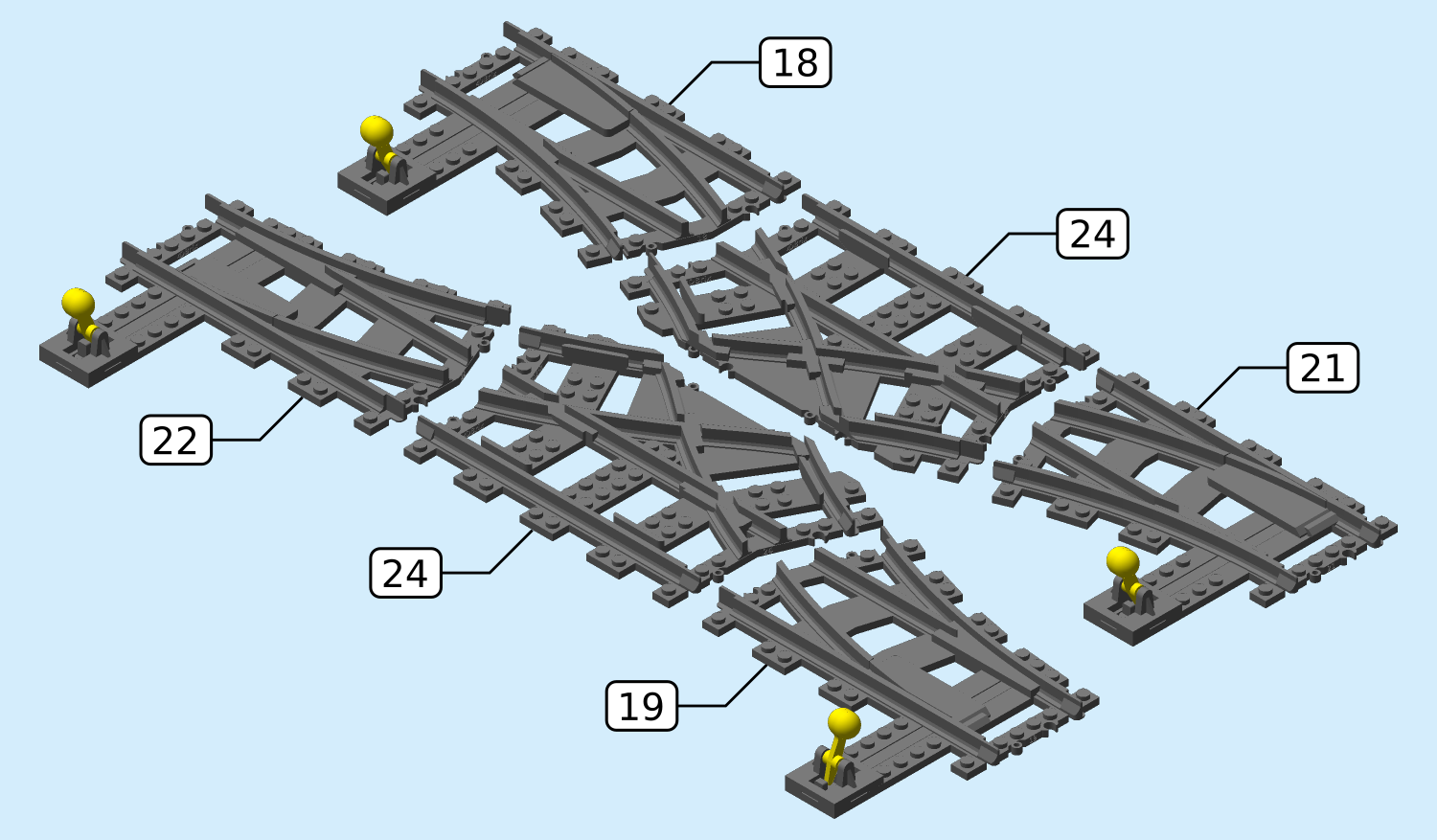

Assembly Instructions

Part List

1x #018

1x #019

1x #021

1x #022

2x #024

1x #018	1x #019
1x #021	1x #022
2x #024

1x #018	1x #019	1x #021
1x #022	2x #024
