Home > Products > Trains > Tracks > Straights & Curves

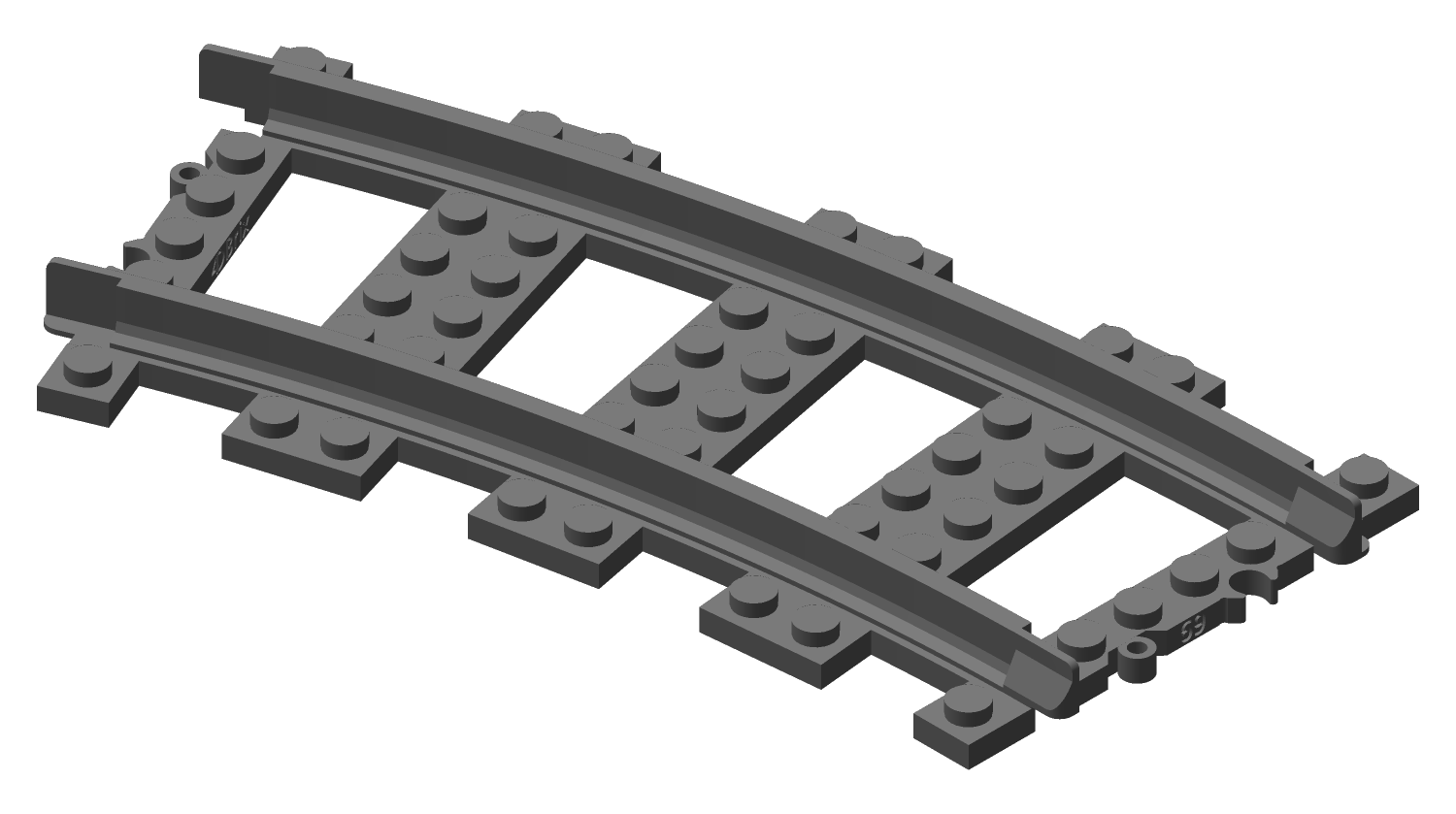

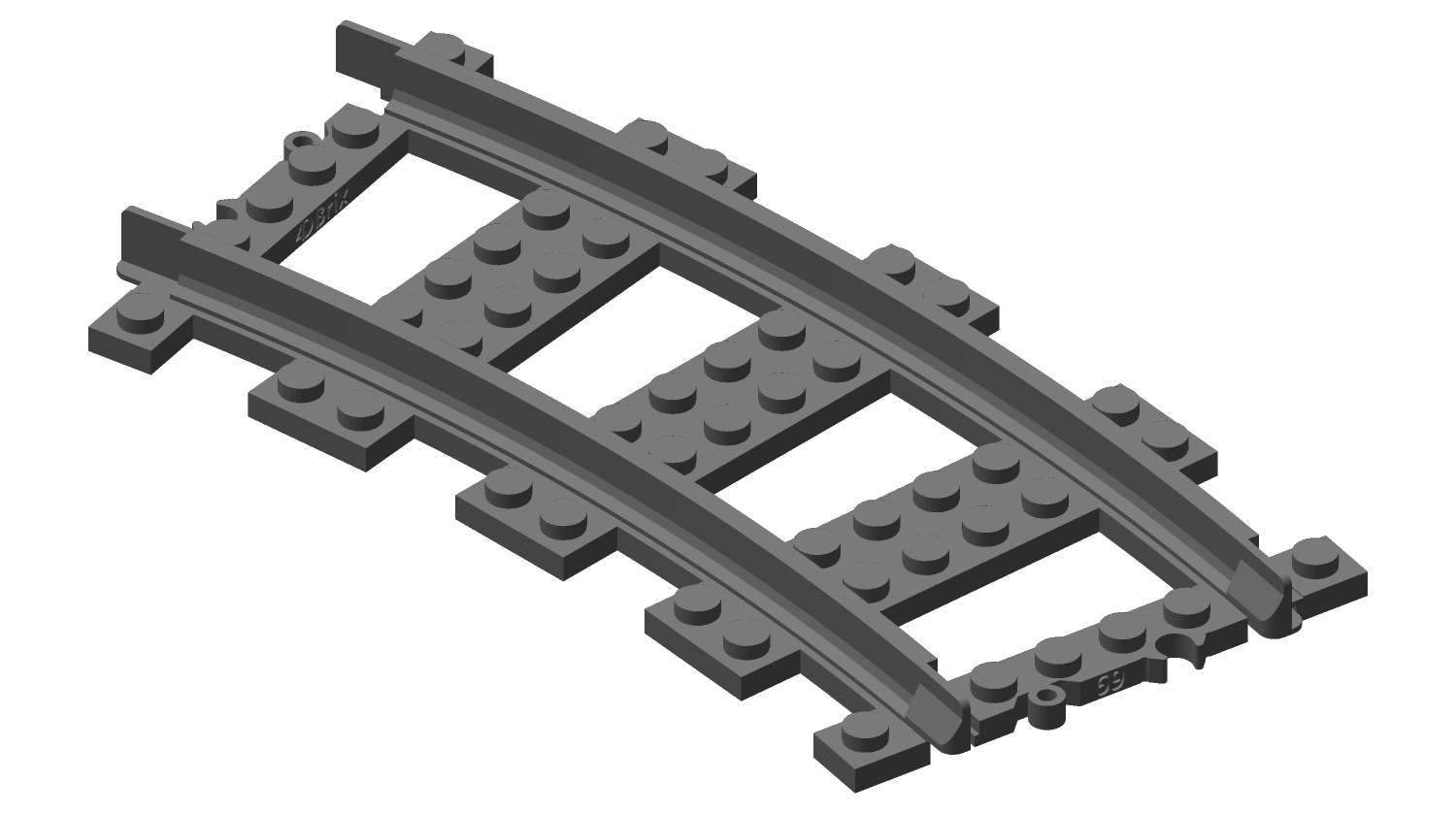

2.04.069 - R40 Curved Track

Introduction

Track 2.04.069 is a R40 curved train track. It's the equivalent of a standard LEGO® curved train track.

Width: 8 studs
Radius: 40 studs
Curve: 22.5°
Fully anti-studded

3D Models

Standard Model

Part: 2.04.069
Revision: v04
Release: 17-JAN-21
File: 2-04-069-std_v04.stl (1,489.6KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Surface Optimized Model

Part: 2.04.069
Revision: v04
Release: 17-JAN-21
File: 2-04-069-sur_v04.stl (1,560.3KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%
