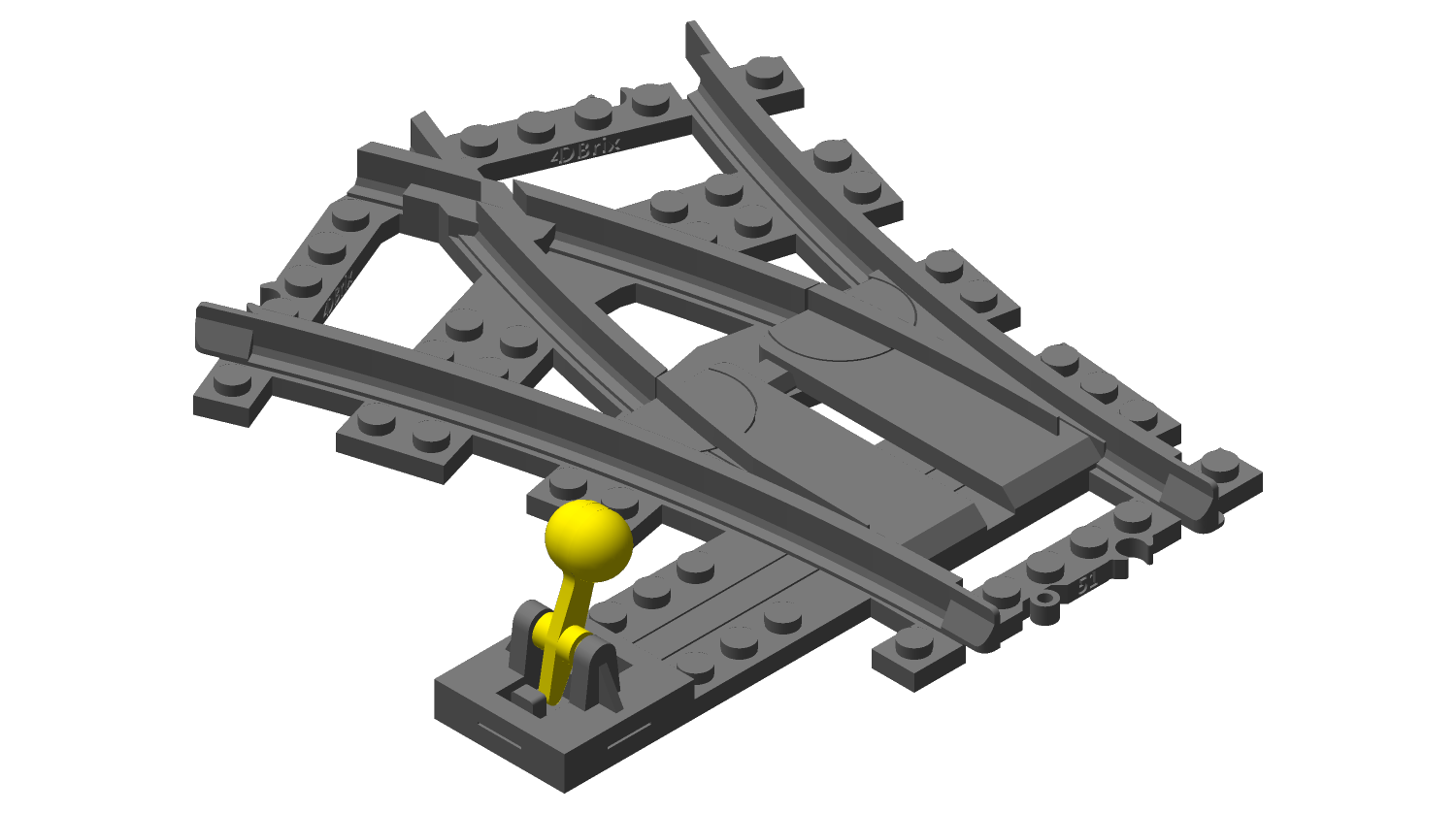

2.04.051 - Wye Switch Track

Introduction

Track 2.04.051 is a wye switch track with the ground throw on the left-hand side.

Length: 16 studs
Radius: 40 studs
Turn: 22.5°

3D Models

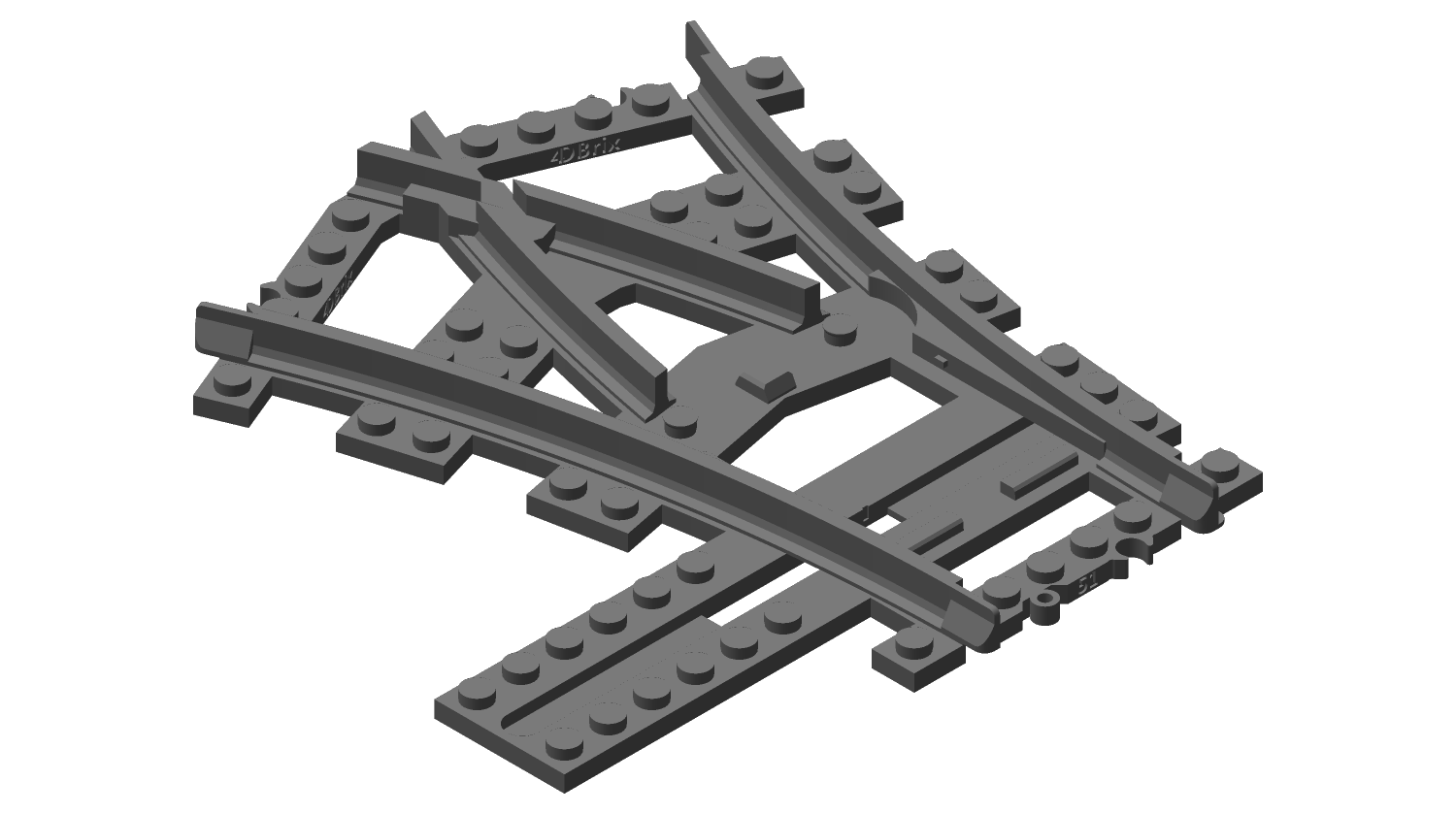

Standard Model

Part: 2.04.051
Revision: v03
Release: 27-MAR-21
File: 2-04-051-std_v03.stl (1,833.2KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v03: 27-MAR-21 - Initial upload.

Surface Optimized Model

Part: 2.04.051
Revision: v03
Release: 27-MAR-21
File: 2-04-051-sur_v03.stl (2,043.8KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v03: 27-MAR-21 - Initial upload.

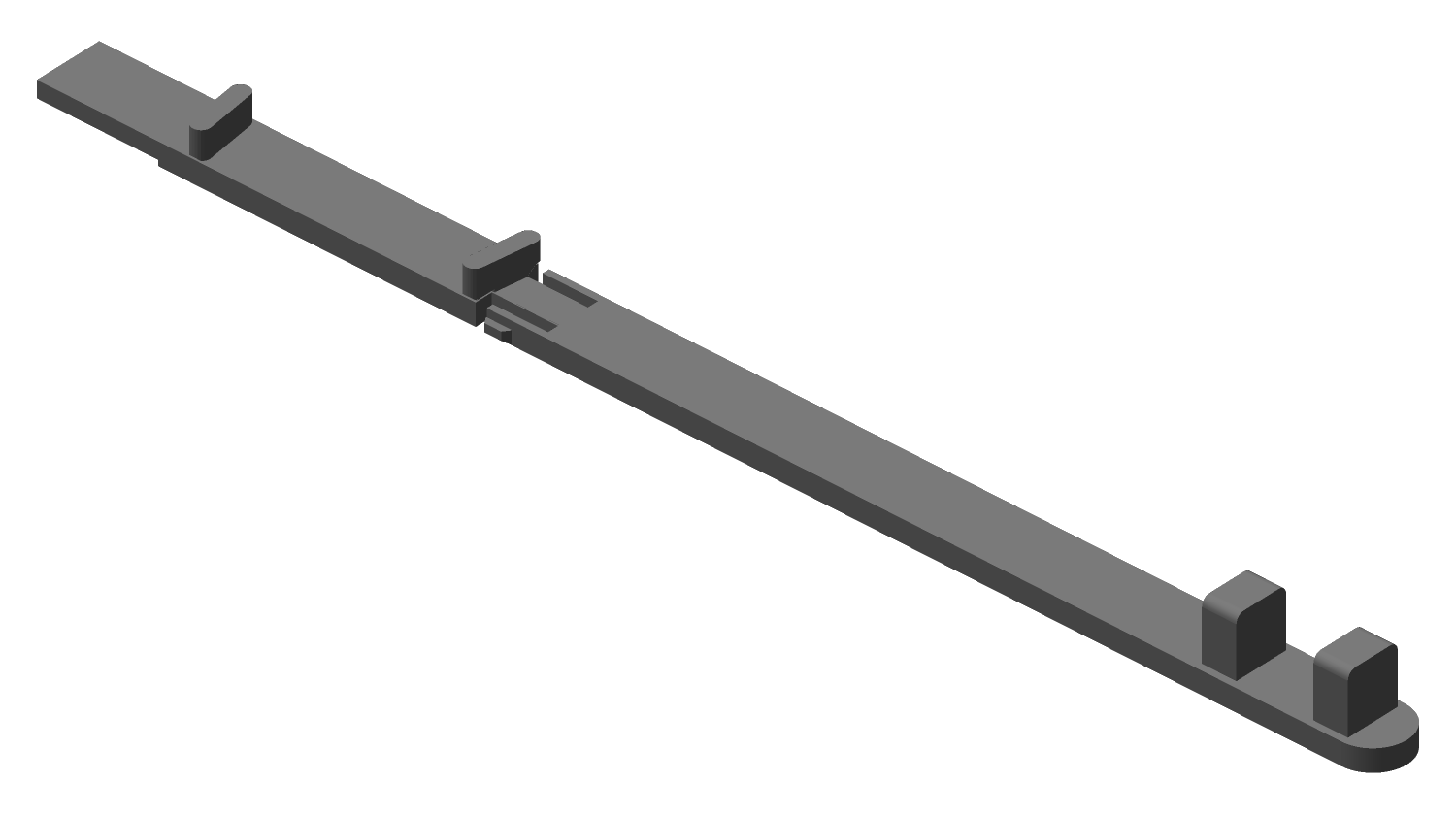

Wye Switch Slider - Left

Part: 2.05.024
Revision: v01
Release: 27-MAR-21
File: 2-05-024_v01.stl (46.7KB)
Suggested Print Settings

Platform: 80°C
Extruder: 245°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v01: 27-MAR-21 - Initial upload.

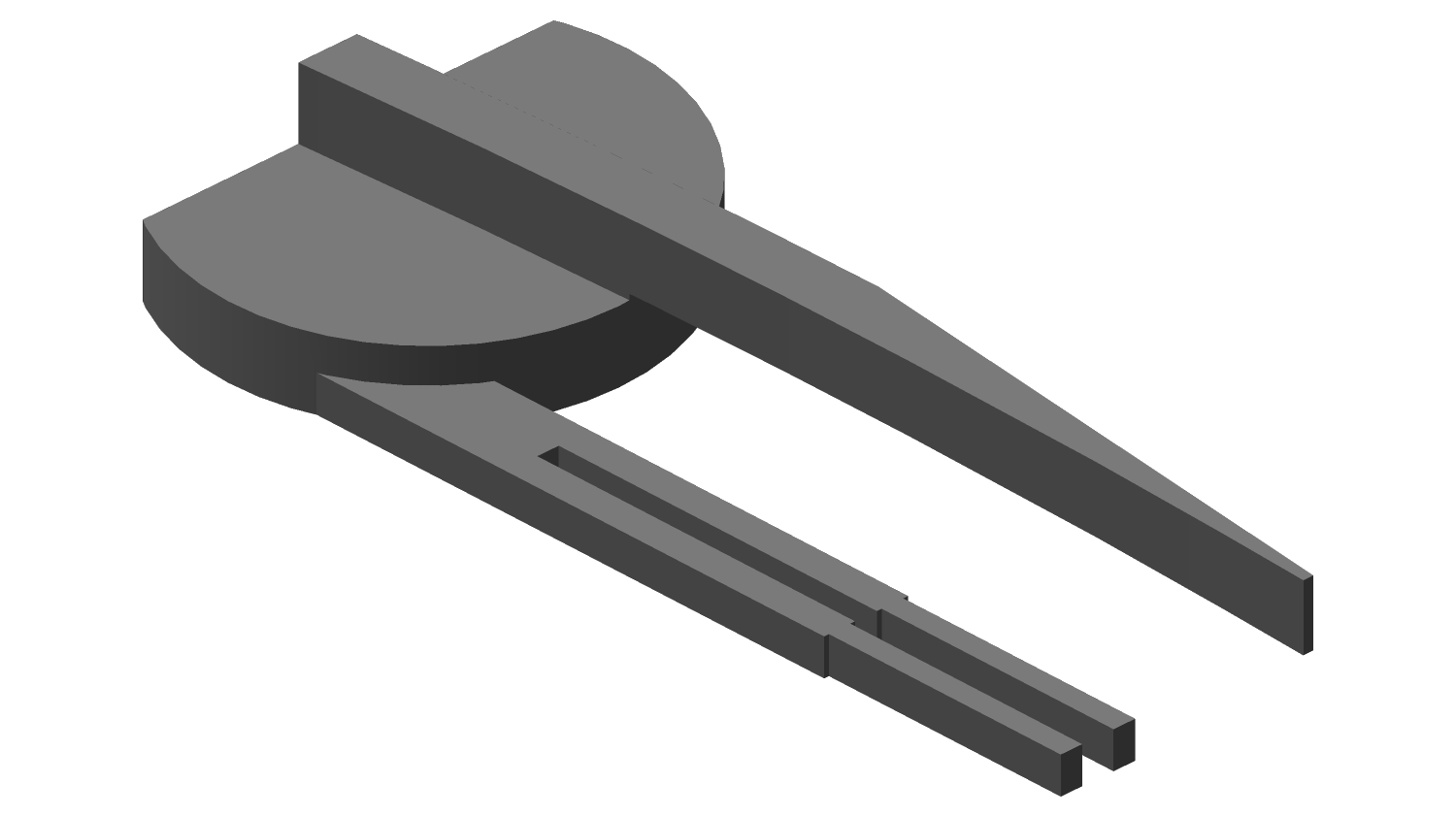

Wye Pivot, Right - Standard Model

Part: 2.05.021
Revision: v01
Release: 16-OCT-20
File: 2-05-021-std_v01.stl (35.5KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20° angle
Infill: 30%

Wye Pivot, Right - Surface Optimized

Part: 2.05.021
Revision: v01
Release: 16-OCT-20
File: 2-05-021-sur_v01.stl (40.4KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20° angle
Infill: 30%

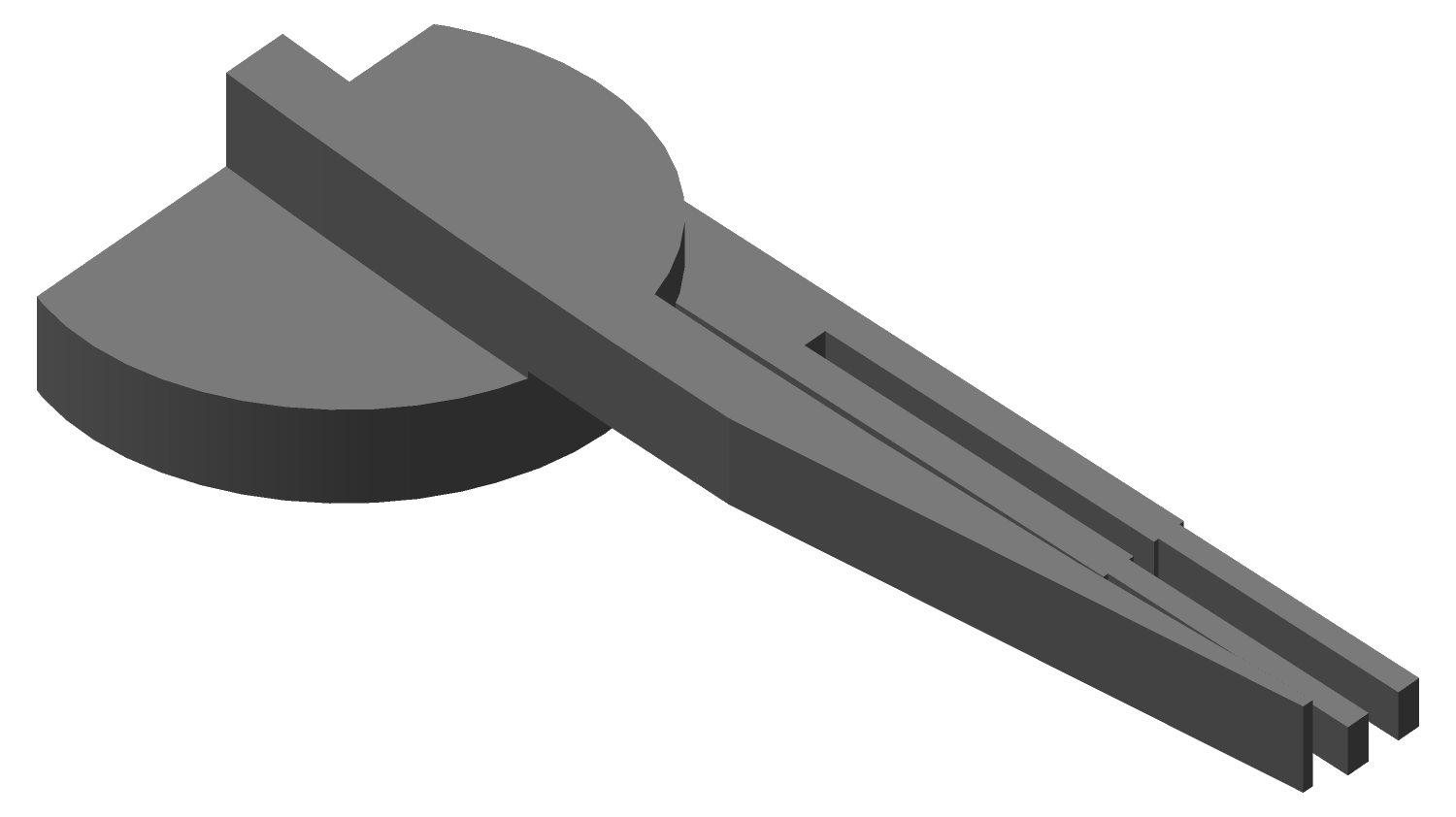

Wye Pivot, Left - Standard Model

Part: 2.05.022
Revision: v01
Release: 16-OCT-20
File: 2-05-022-std_v01.stl (28.1KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20° angle
Infill: 30%

Wye Pivot, Left - Surface Optimized

Part: 2.05.022
Revision: v01
Release: 16-OCT-20
File: 2-05-022-sur_v01.stl (33.0KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20° angle
Infill: 30%

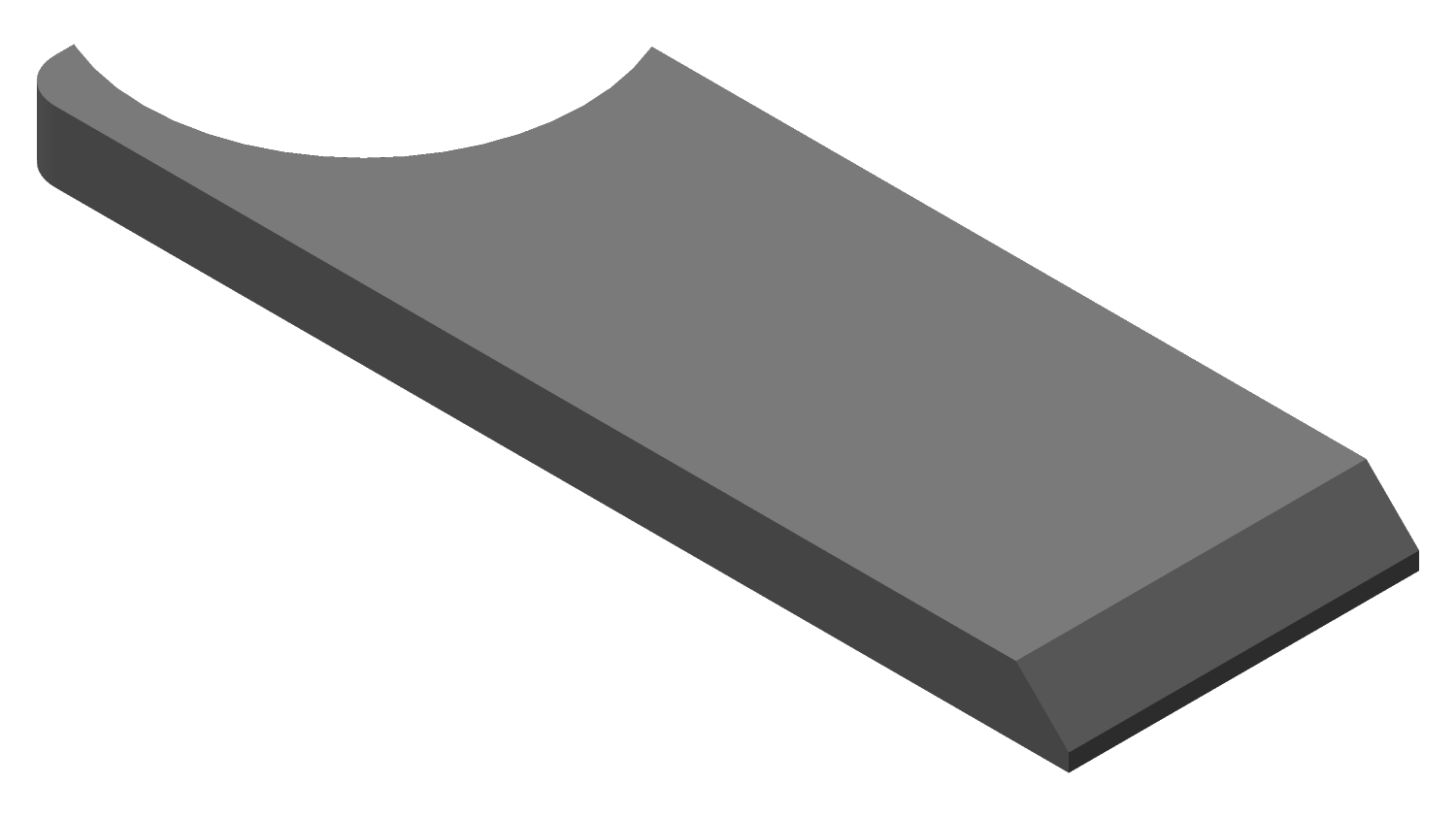

Switch Cover, Right

Part: 2.05.018
Revision: v01
Release: 15-OCT-20
File: 2-05-018_v01.stl (12.5KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20° angle
Infill: 30%

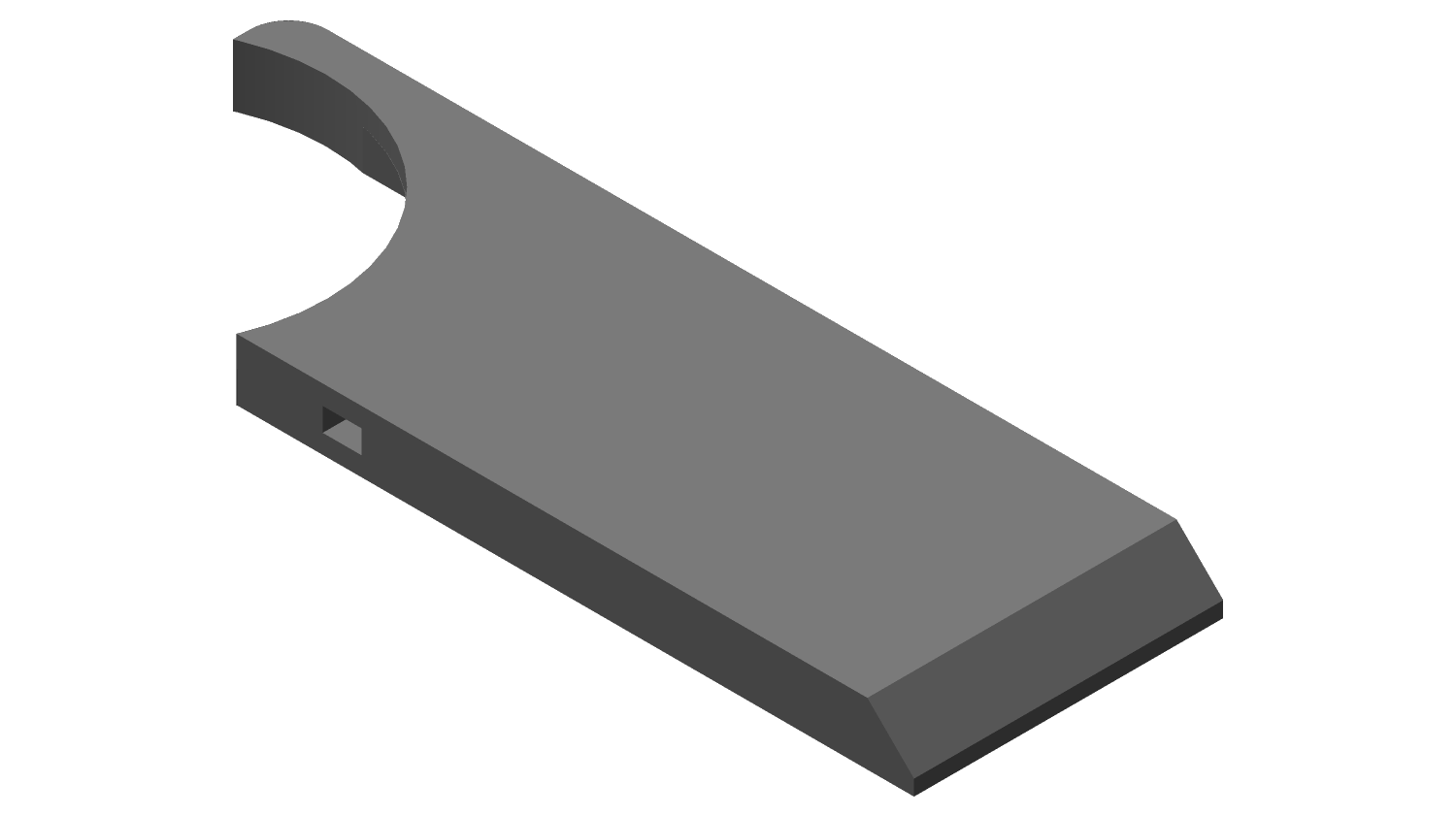

Switch Cover, Left

Part: 2.05.019
Revision: v01
Release: 15-OCT-20
File: 2-05-019_v01.stl (12.5KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20° angle
Infill: 30%

Ground Throw Bracket

Part: 2.05.003
Revision: v03
Release: 17-SEP-20
File: 2-05-003_v03.stl (89.3KB)
Suggested Print Settings

Platform: 80°C
Extruder: 245°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v02: 27-APR-20 - Initial upload.
v03: 17-SEP-20 - Remove internal faces / duplicate faces.

Switch Lever

Part: 2.05.004
Revision: v02
Release: 17-SEP-20
File: 2-05-004_v02.stl (153.3KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.14mm
Nozzle Diameter: 0.4mm
Support: 20° angle
Infill: 30%

Model History

v28: 27-APR-20 - Initial upload.
v16: 17-SEP-20 - Remove internal faces / duplicate faces.
