Home > Products > Trains > Tracks > Straights & Curves

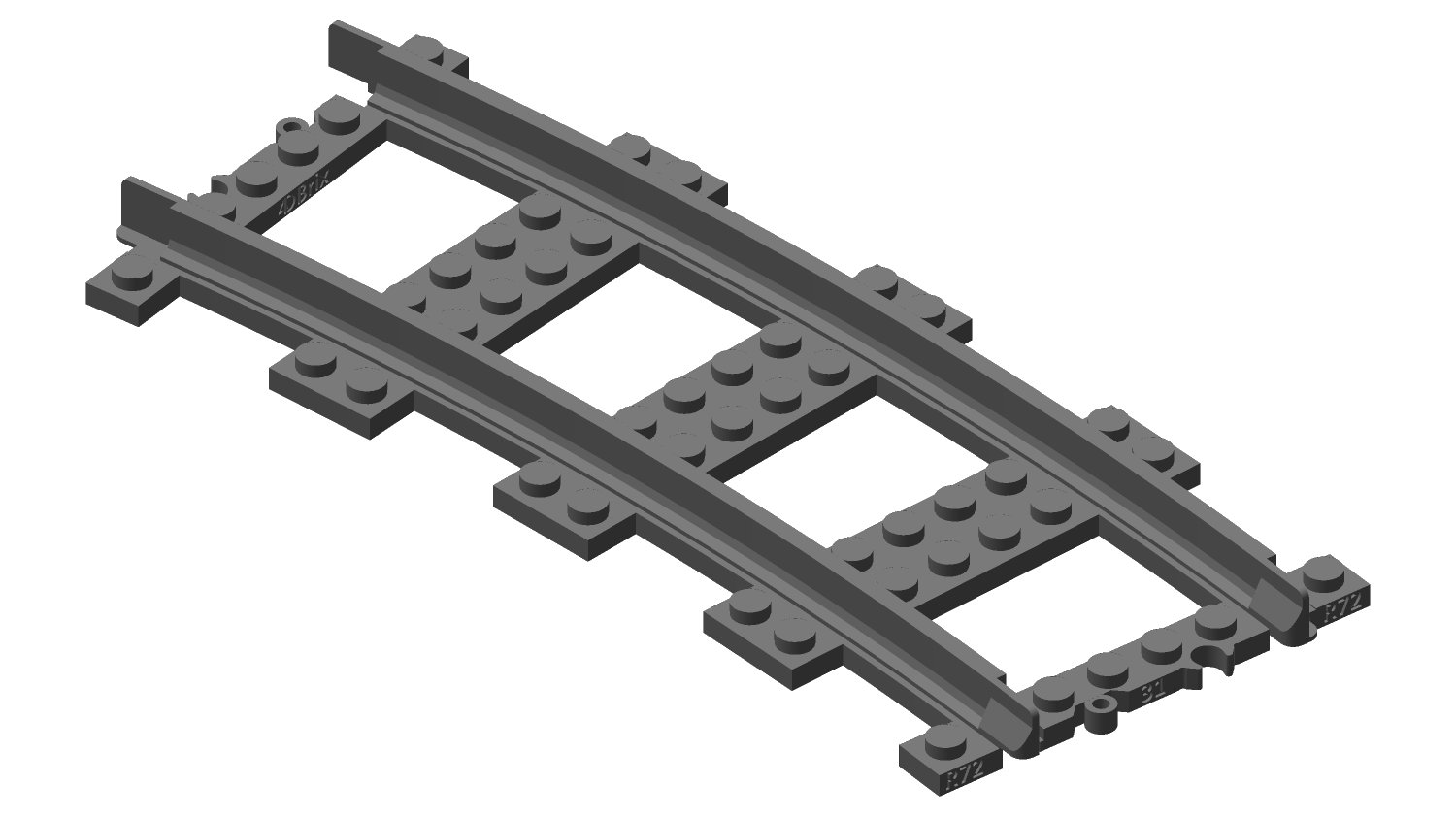

2.04.031 - R72 Curved Track

Introduction

Track 2.04.031 is a R72 curved train track.

Width: 8 studs
Radius: 72 studs
Curve: 15°
Fully anti-studded

Description

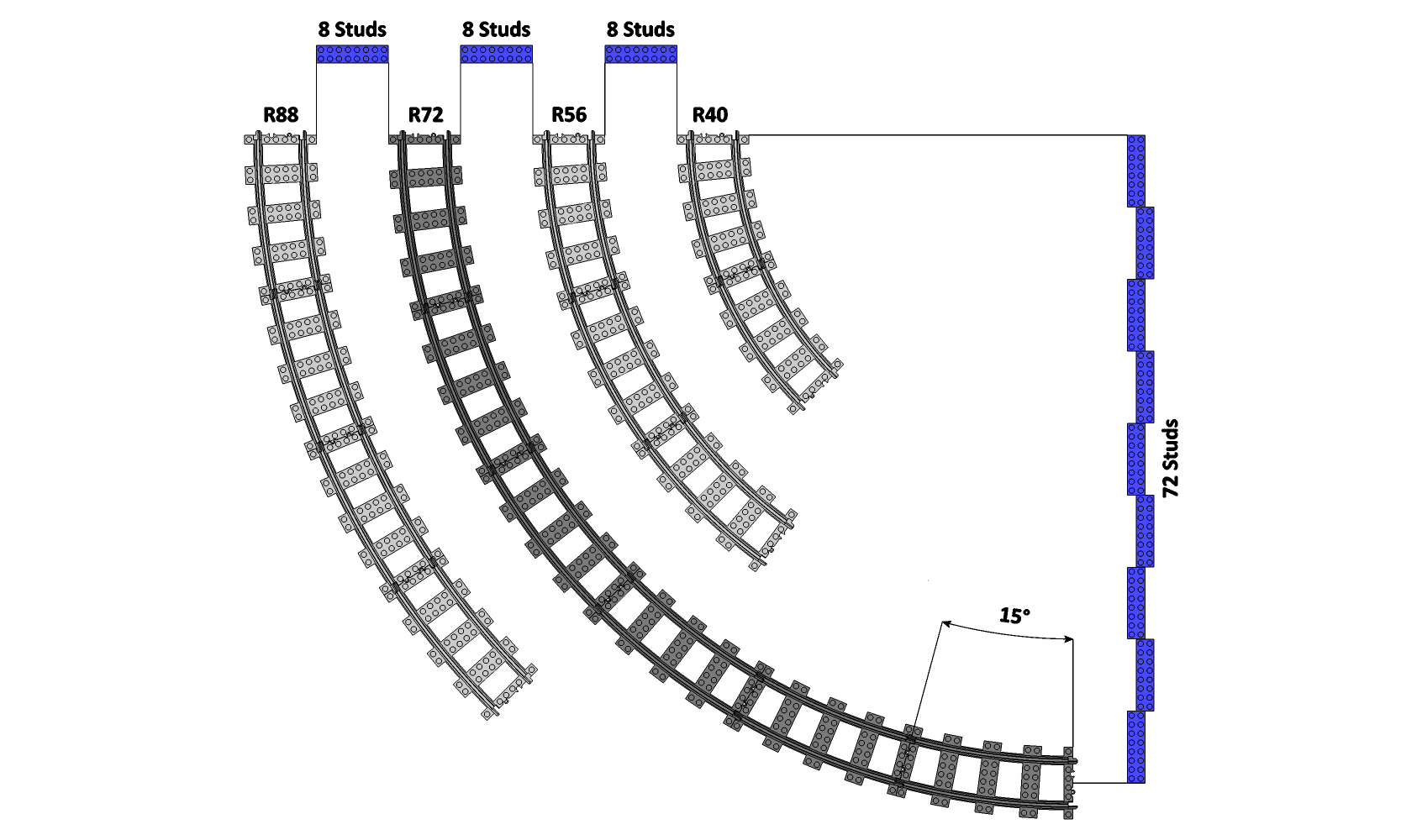

The R72 curves are designed to be fully compatible with the LEGO® grid. They fit into layouts that have parallel tracks spaced at an 8 stud distance. The curves cover an angle of 15° so you need 6 curves for a 90° turn or 24 for a closed loop.

3D Models

Standard Model

Part: 2.04.031
Revision: v22
Release: 14-SEP-20
File: 2-04-031-std_v22.stl (1,586.9KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v30: 16-MAY-20 - Initial upload.
v31: 14-SEP-20 - Remove internal faces / duplicate faces.

Surface Optimized Model

Part: 2.04.031
Revision: v22
Release: 14-SEP-20
File: 2-04-031-sur_v22.stl (1,946.3KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v30: 16-MAY-20 - Initial upload.
v31: 14-SEP-20 - Remove internal faces / duplicate faces.

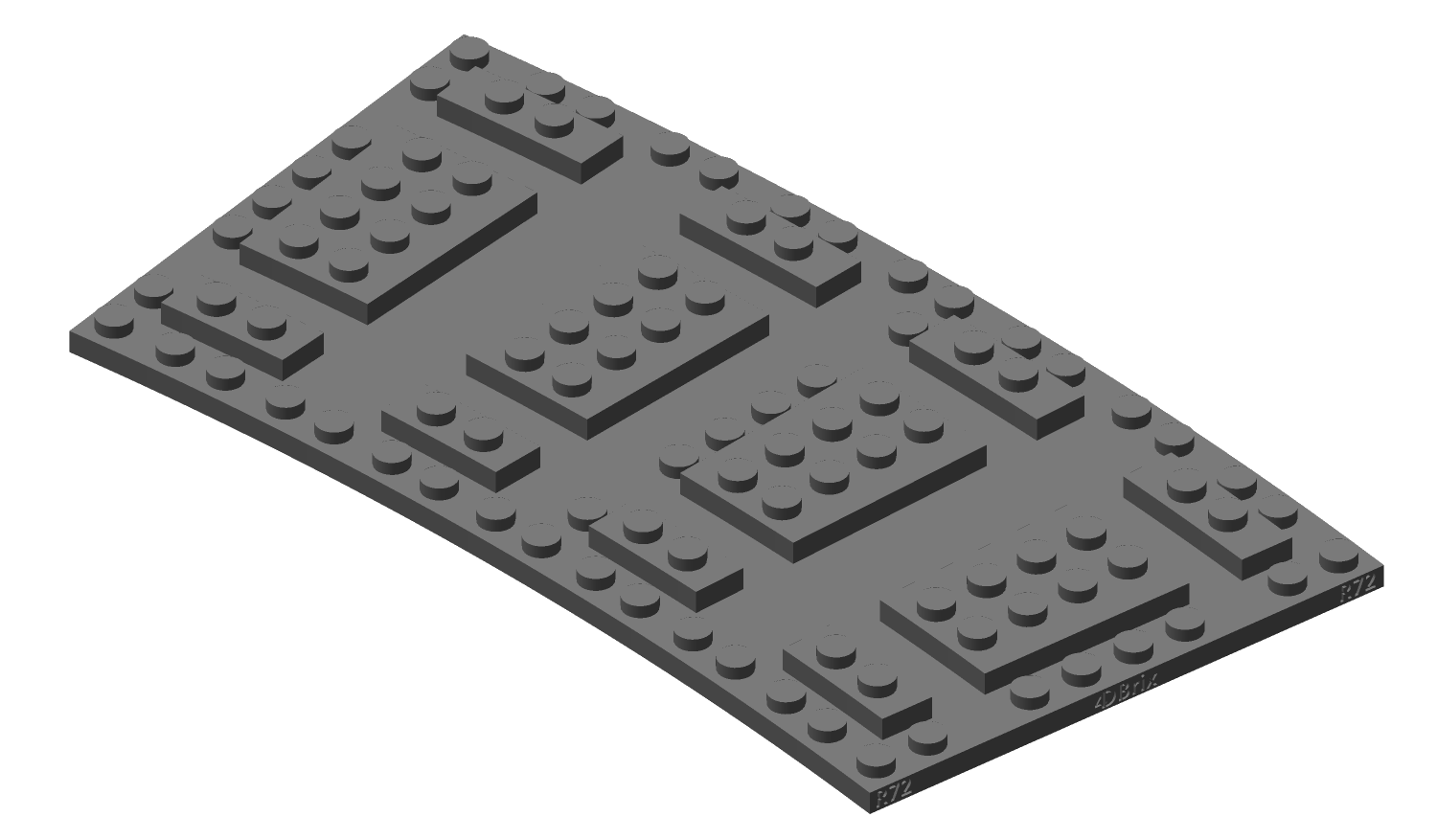

Ballast Plate Model

Part: 2.04.031.B
Revision: v06
Release: 08-JAN-23
File: 2-04-031-bal_v06.stl (1,644.4KB)
Model History

v06: 08-JAN-23 - Initial upload.
