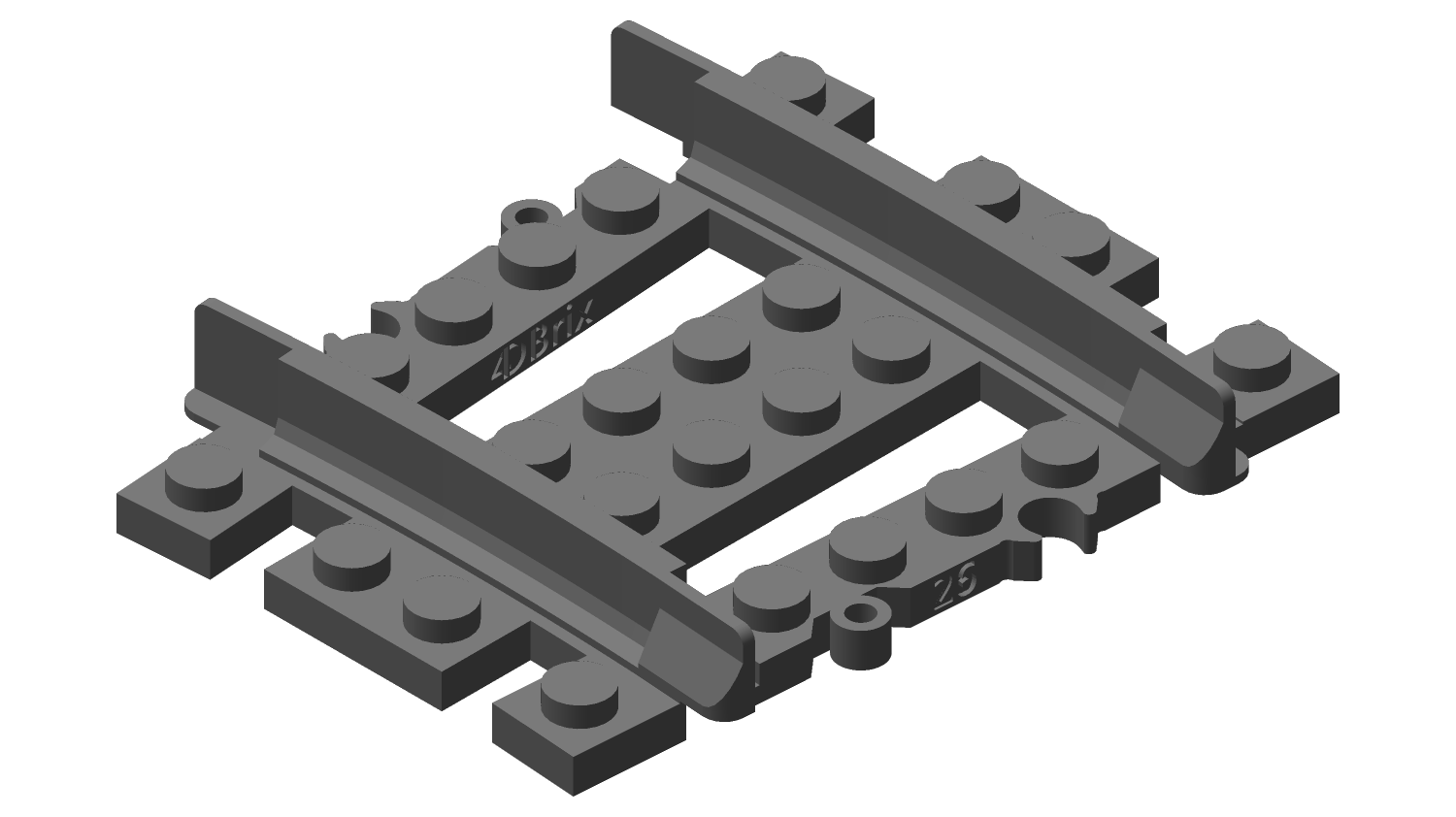

2.04.026 - Continuous Curve Adapter

Introduction

Track 2.04.026 is a continuous curve adapter; when connected to a #20 or #23 divergent track it can create a continuing circular track.

Radius: 40 studs
Turn: ~8.1°

3D Models

Standard Model

Part: 2.04.026
Revision: v08
Release: 17-SEP-20
File: 2-04-026-std_v08.stl (873.1KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Surface Optimized Model

Part: 2.04.026
Revision: v08
Release: 17-SEP-20
File: 2-04-026-sur_v08.stl (920.7KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%
