2.04.018S - Switch Track - Short
Introduction
 Track 2.04.018S is a right turn switch track with the ground throw on the inside. The switch mechanism is 2 studs shorter than the 2.04.018 track, which makes it possible to build double crossovers with all ground throws on the inside.
  • Length: 16 studs
  • Radius: 40 studs
  • Turn: 22.5°
3D Models

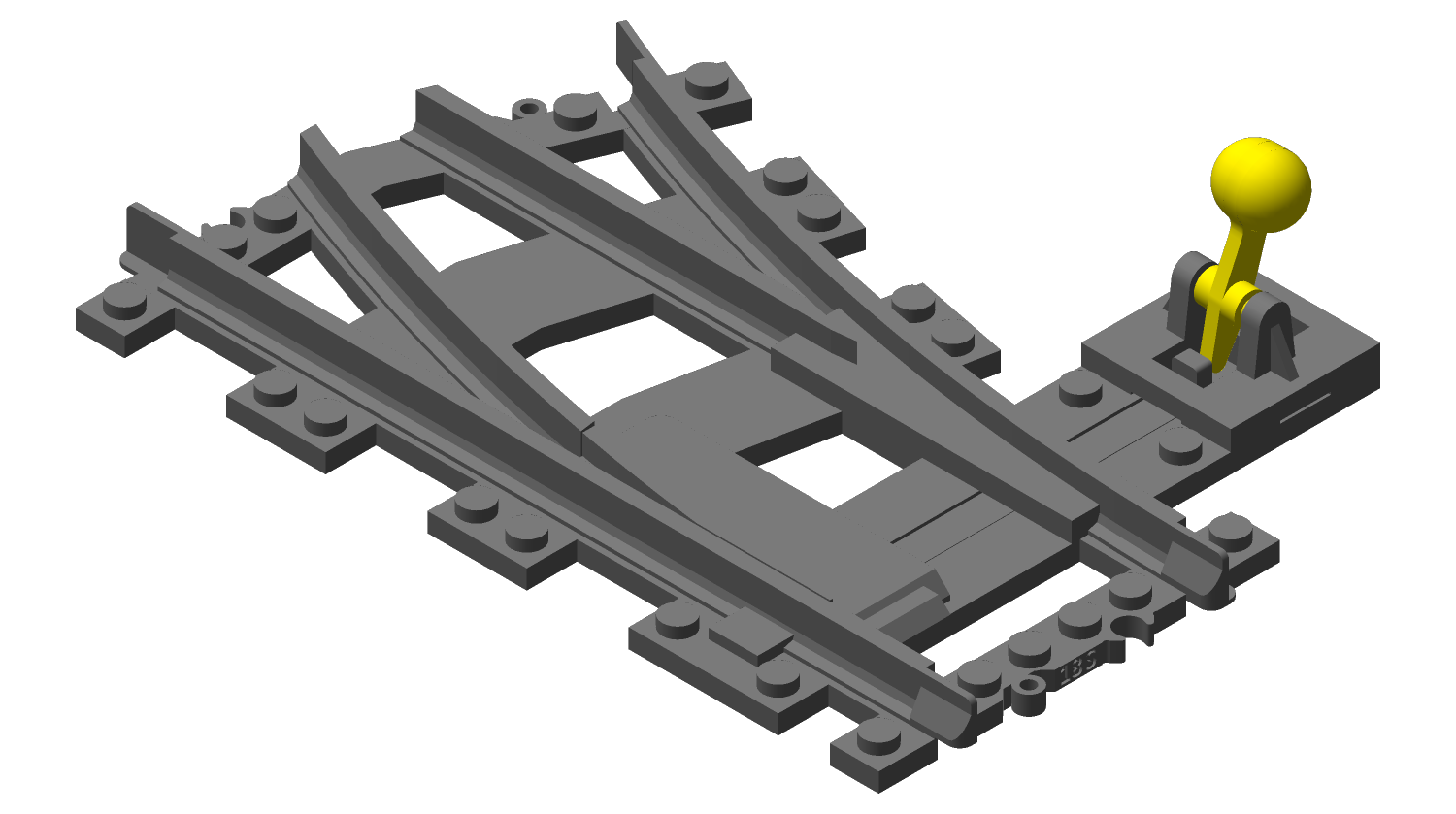

Standard Model
Part: 2.04.018S
Revision: v20
Release: 14-MAR-21
File: 2-04-018S-std_v20.stl (1,235.9KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v20: 14-MAR-21 - Initial release.

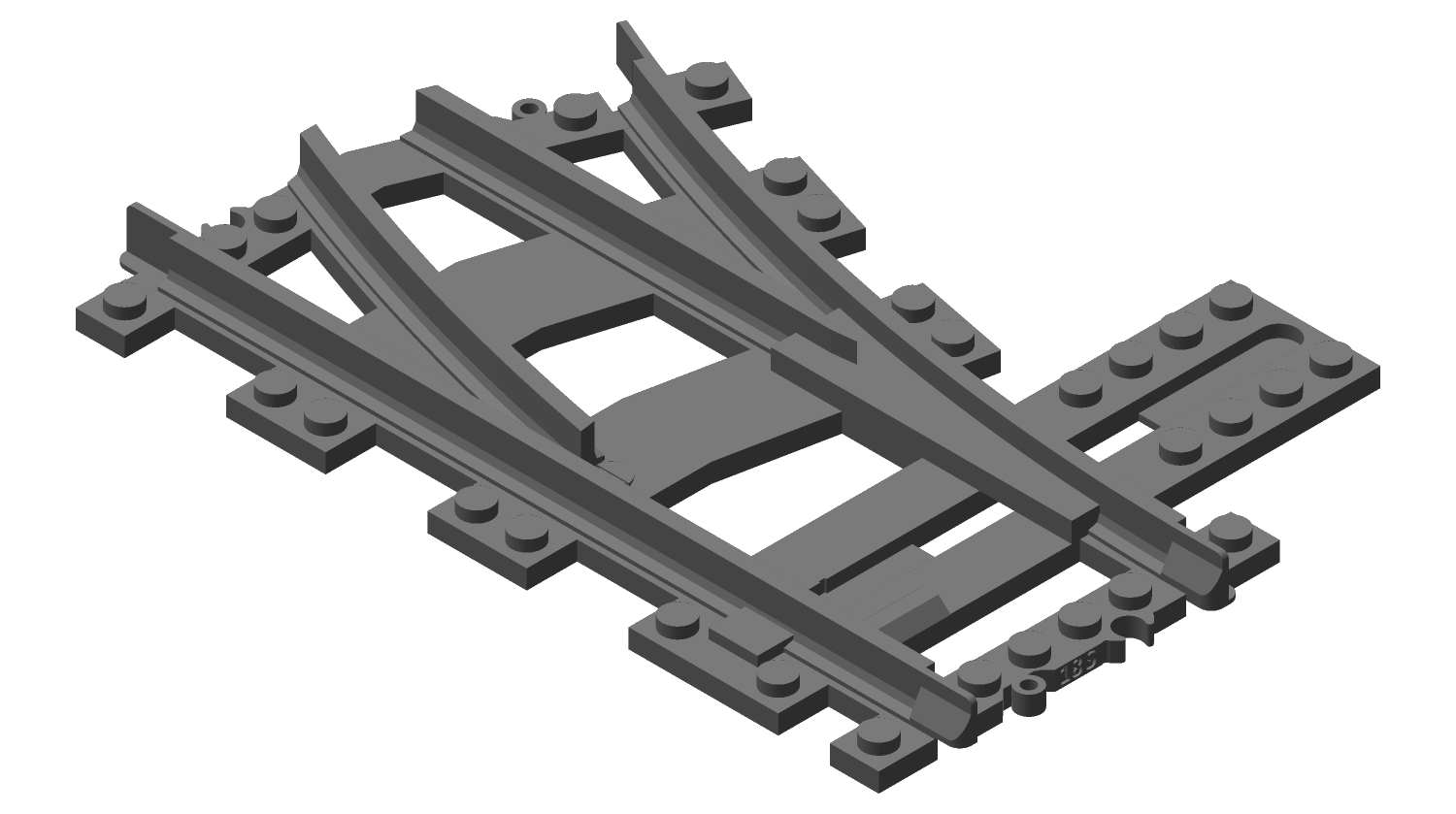

Surface Optimized Model
Part: 2.04.018S
Revision: v20
Release: 14-MAR-21
File: 2-04-018S-sur_v20.stl (1,350.7KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v20: 14-MAR-21 - Initial release.

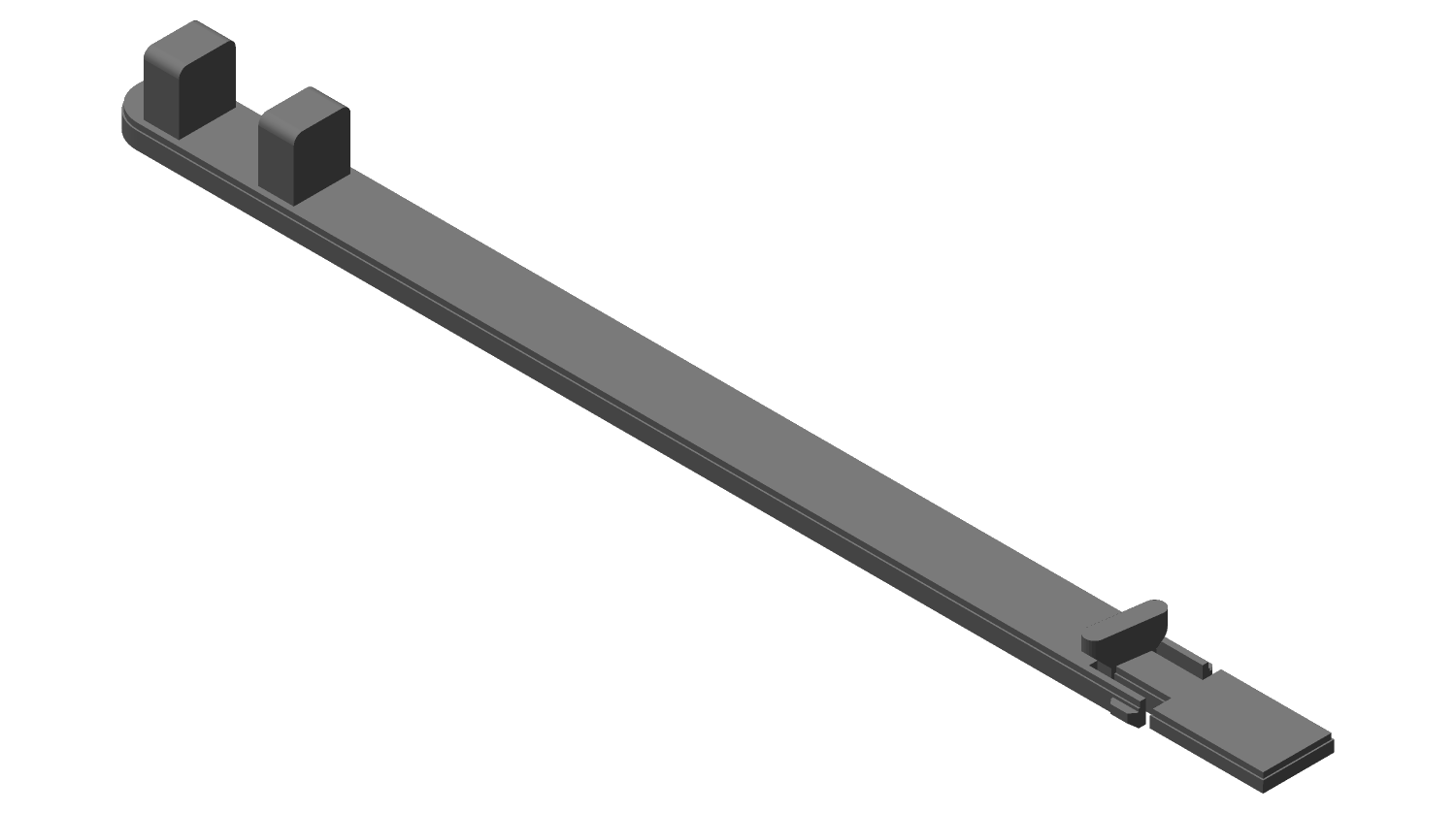

Switch Slider - short
Part: 2.05.023
Revision: v01
Release: 14-MAR-21
File: 2-05-023_v01.stl (30.2KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 245°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v01: 14-MAR-21 - Initial release.

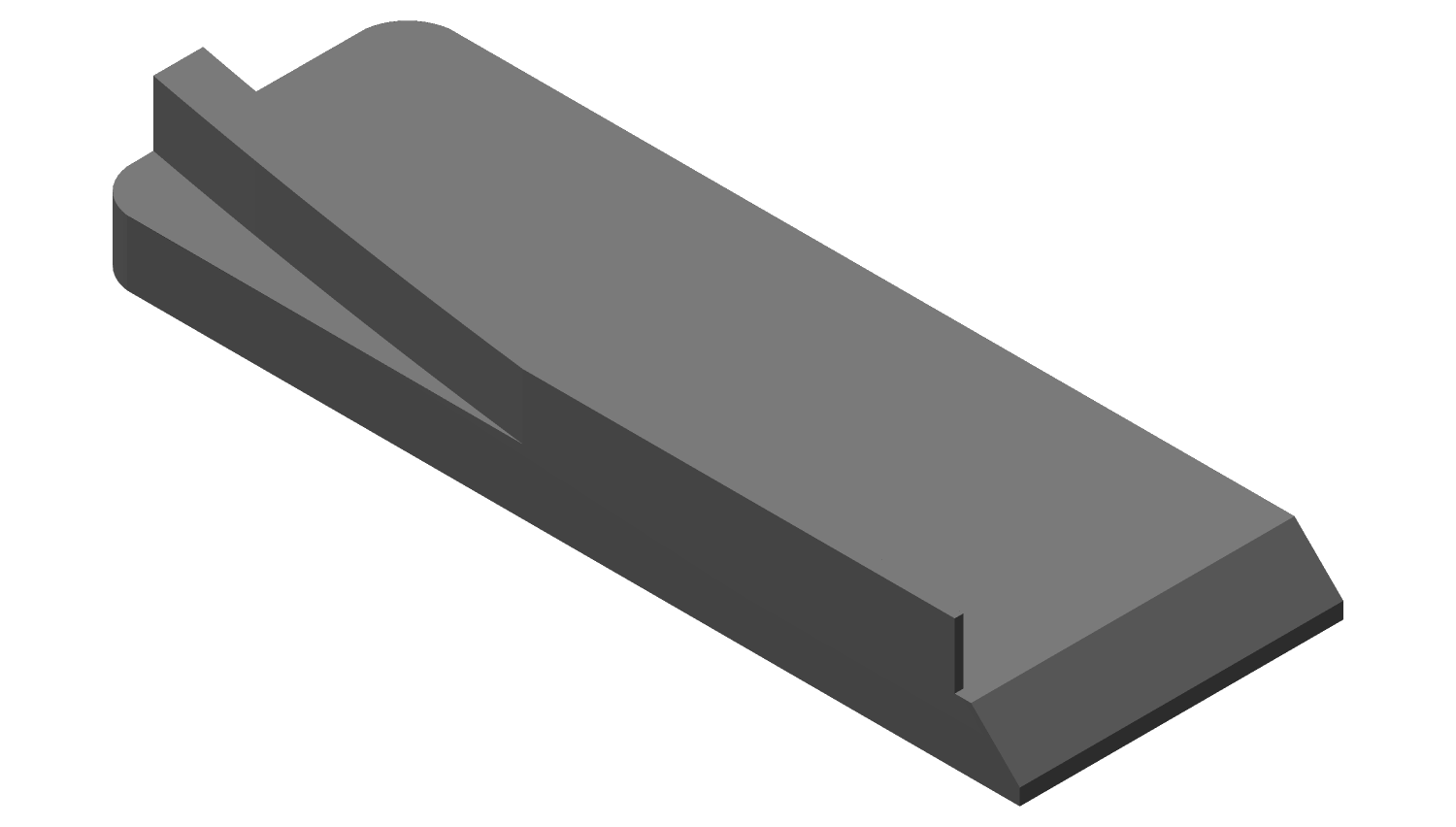

Switch Pivot - Standard Model
Part: 2.05.011
Revision: v01
Release: 27-APR-20
File: 2-05-011-std_v01.stl (34.0KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%
Switch Pivot - Surface Optimized
Part: 2.05.011
Revision: v01
Release: 27-APR-20
File: 2-05-011-sur_v01.stl (50.2KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

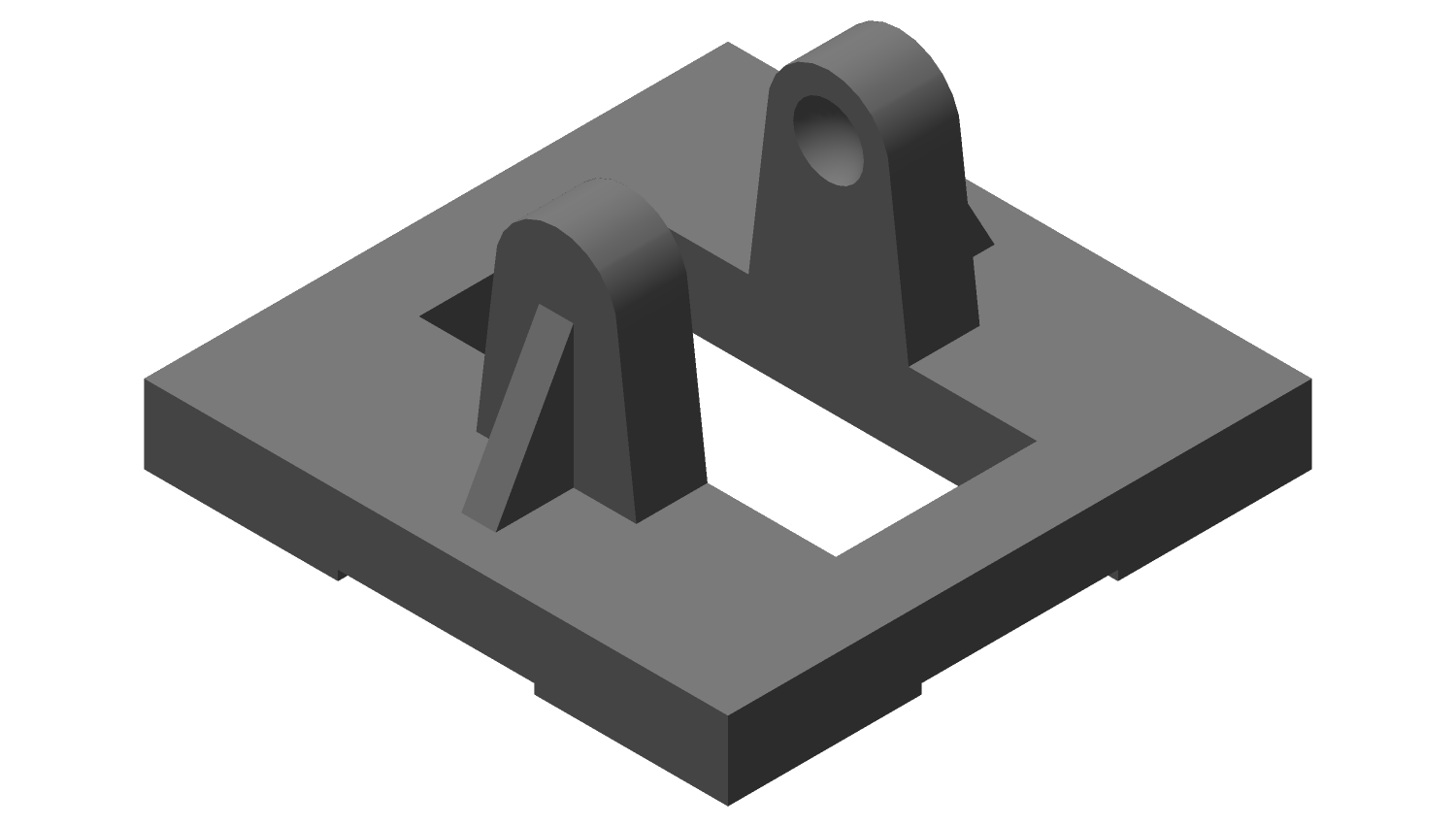

Ground Throw Bracket
Part: 2.05.003
Revision: v03
Release: 17-SEP-20
File: 2-05-003_v03.stl (89.3KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 245°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v02: 27-APR-20 - Initial upload.
  • v03: 17-SEP-20 - Remove internal faces / duplicate faces.

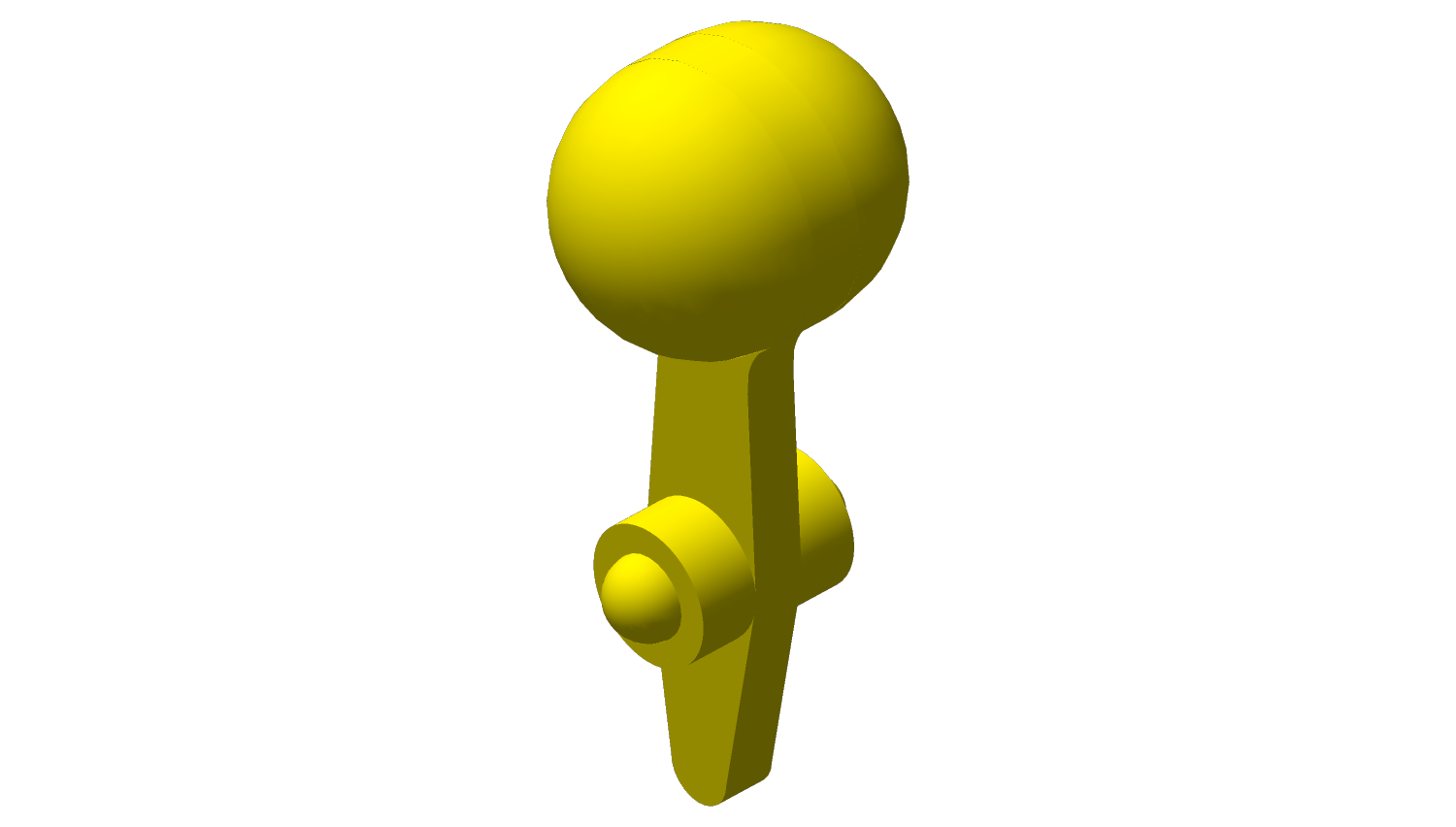

Switch Lever
Part: 2.05.004
Revision: v02
Release: 17-SEP-20
File: 2-05-004_v02.stl (153.3KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.14mm
  • Nozzle Diameter: 0.4mm
  • Support: 20° angle
  • Infill: 30%

Model History
  • v28: 27-APR-20 - Initial upload.
  • v16: 17-SEP-20 - Remove internal faces / duplicate faces.
