2.03.001 - IR Train Detector

Introduction

This IR sensor is designed to detect LEGO® trains; it can also detect monorail trains. It can be used with our nControl™ automation software or using a DIY software application.

Manuals

3D Models

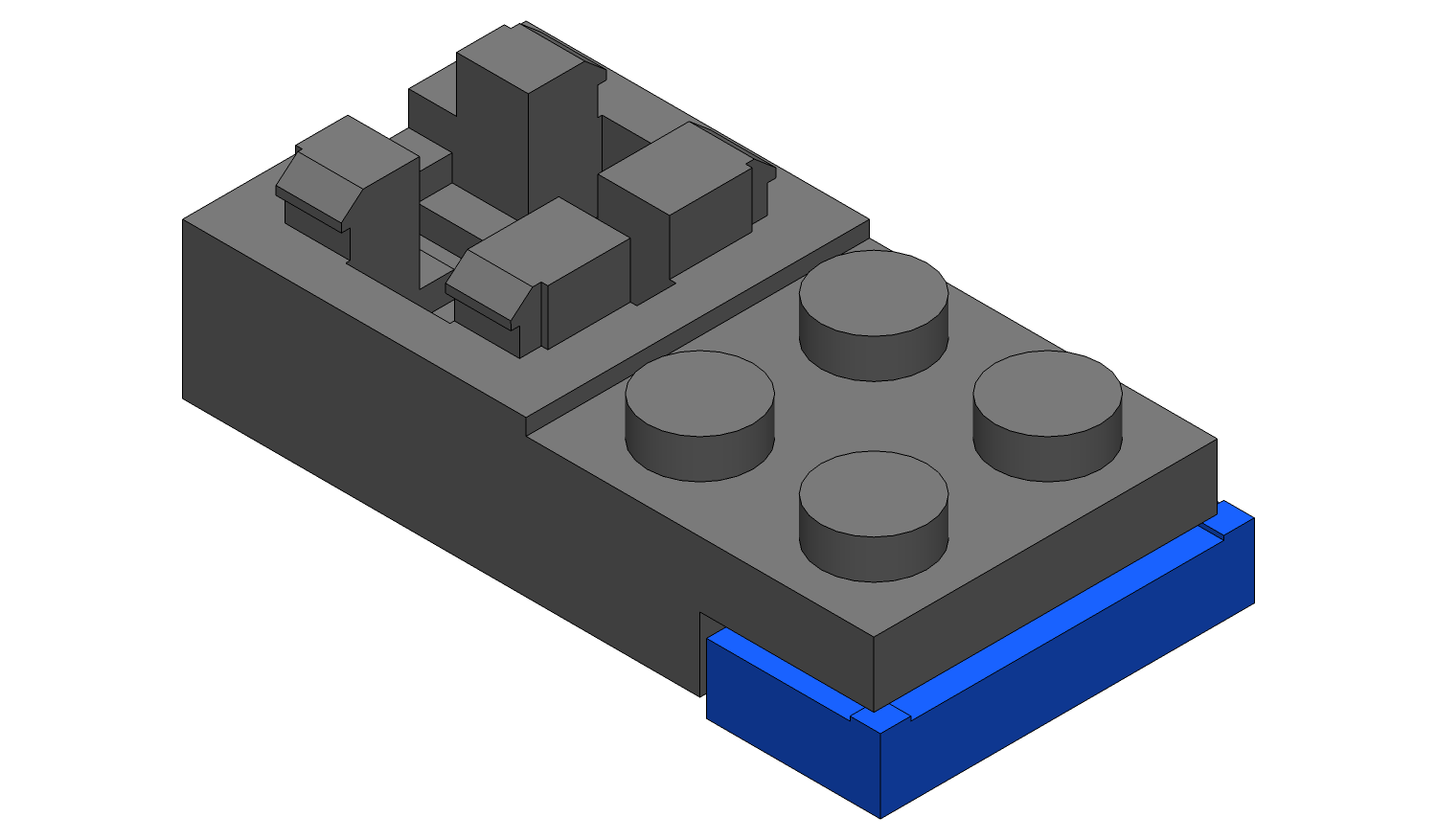

Sensor Base

Sensor base with integrated supports

Part: 2.03.001-1
Revision: v24
Release: 27-JUN-21
File: 2-03-001-1_v24.stl (121.2KB)
Model History

v24: 27-JUN-21 - Initial upload.

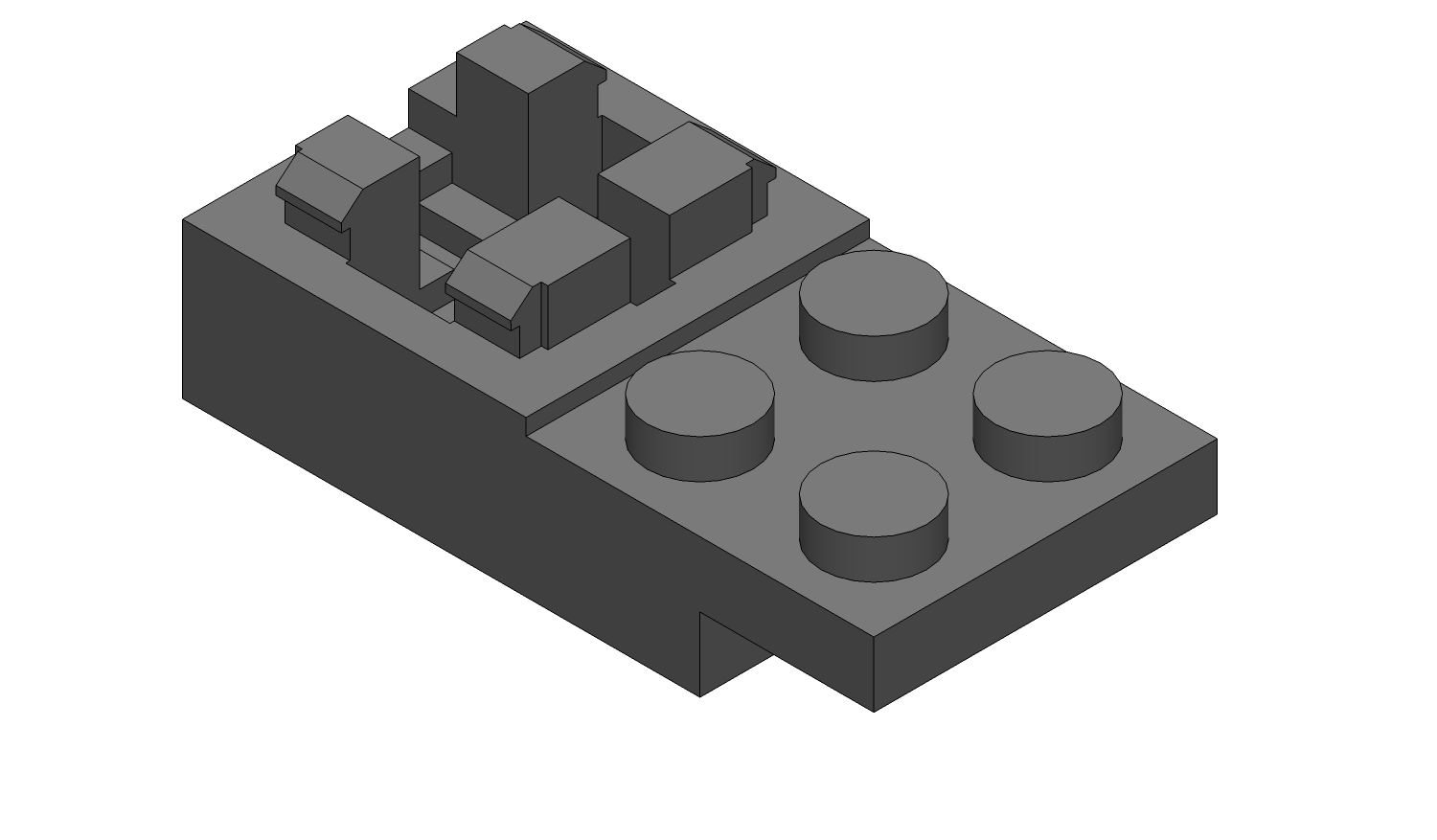

Sensor Base

Sensor base without supports

Part: 2.03.001-1
Revision: v24
Release: 27-JUN-21
File: 2-03-001-1-nsp_v24.stl (111.6KB)
Model History

v24: 27-JUN-21 - Initial upload.

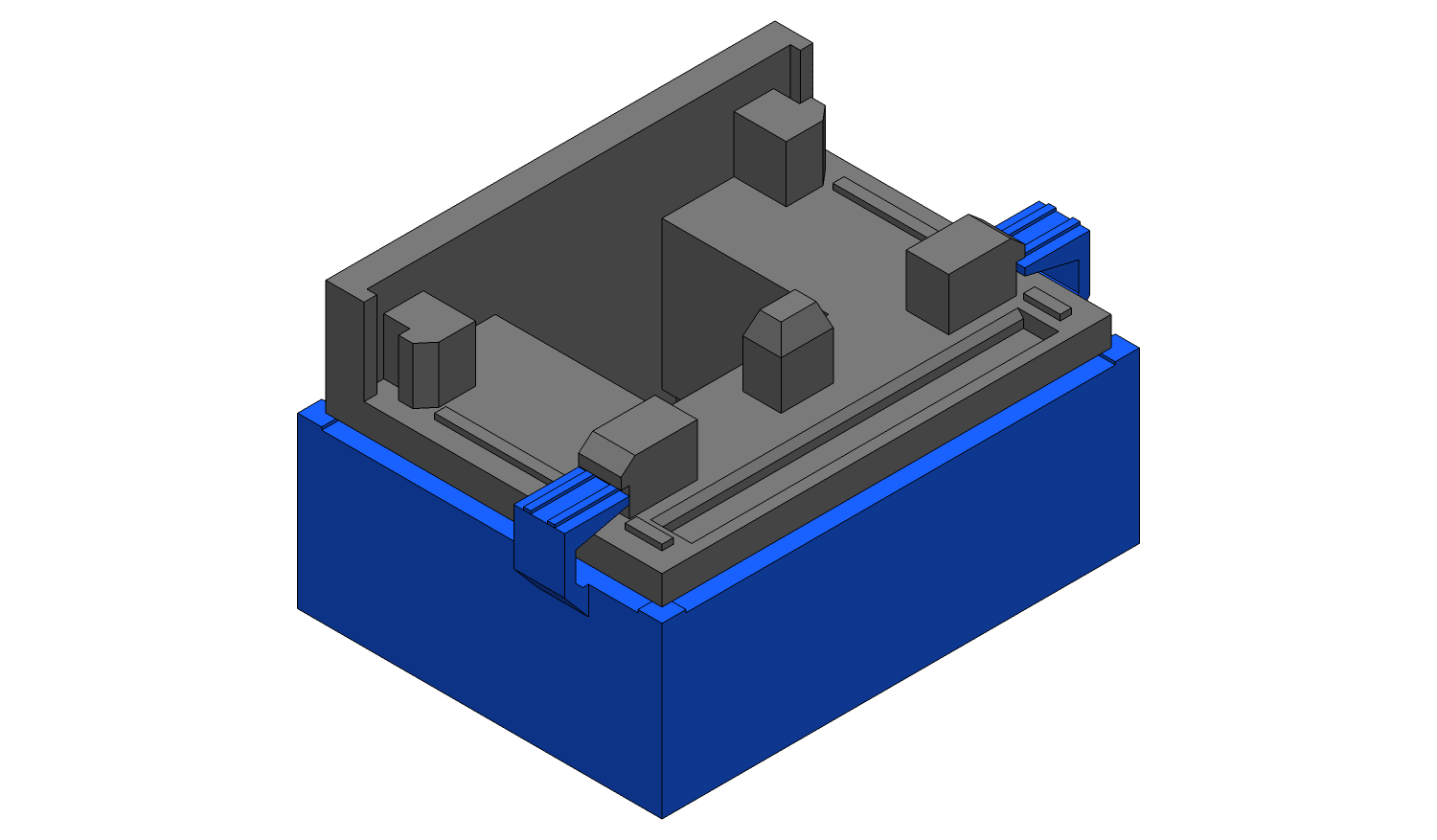

Sensor Body

Sensor body with integrated supports

Part: 2.03.001-2
Revision: v25
Release: 25-JAN-23
File: 2-03-001-2_v25.stl (90.0KB)
Model History

v24: 27-JUN-21 - Initial upload.
v25: 25-JAN-23 - Updated for laser cut windows.

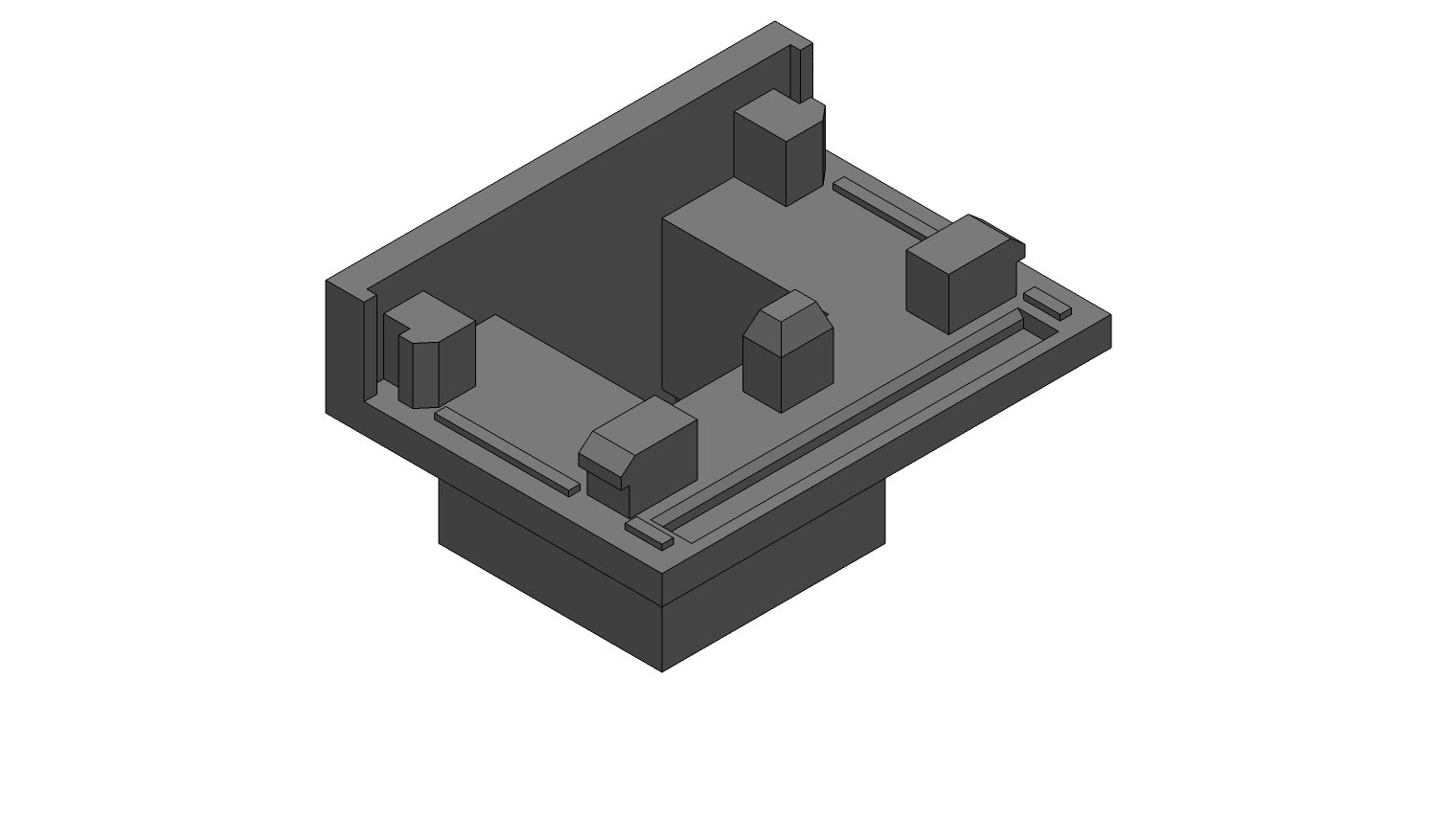

Sensor Body

Sensor body without supports

Part: 2.03.001-2
Revision: v25
Release: 23-JAN-23
File: 2-03-001-2-nsp_v25.stl (71.6KB)
Model History

v24: 27-JUN-21 - Initial upload.
v25: 25-JAN-23 - Updated for laser cut windows.

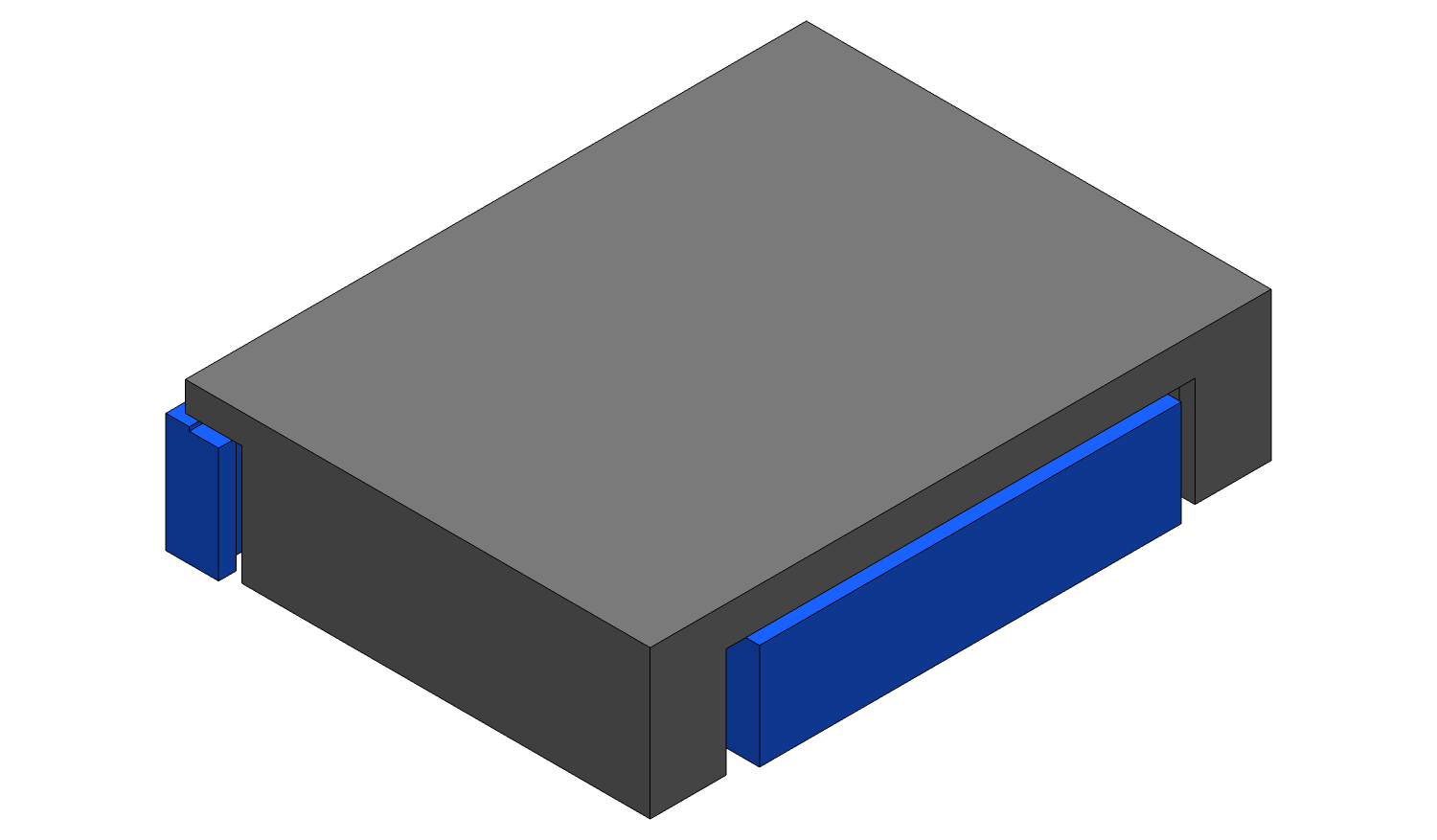

Sensor Top

Sensor top with integrated supports

Part: 2.03.001-3
Revision: v25
Release: 25-JAN-23
File: 2-03-001-3_v25.stl (28.9KB)
Model History

v24: 27-JUN-21 - Initial upload.
v25: 25-JAN-23 - Updated for laser cut windows.

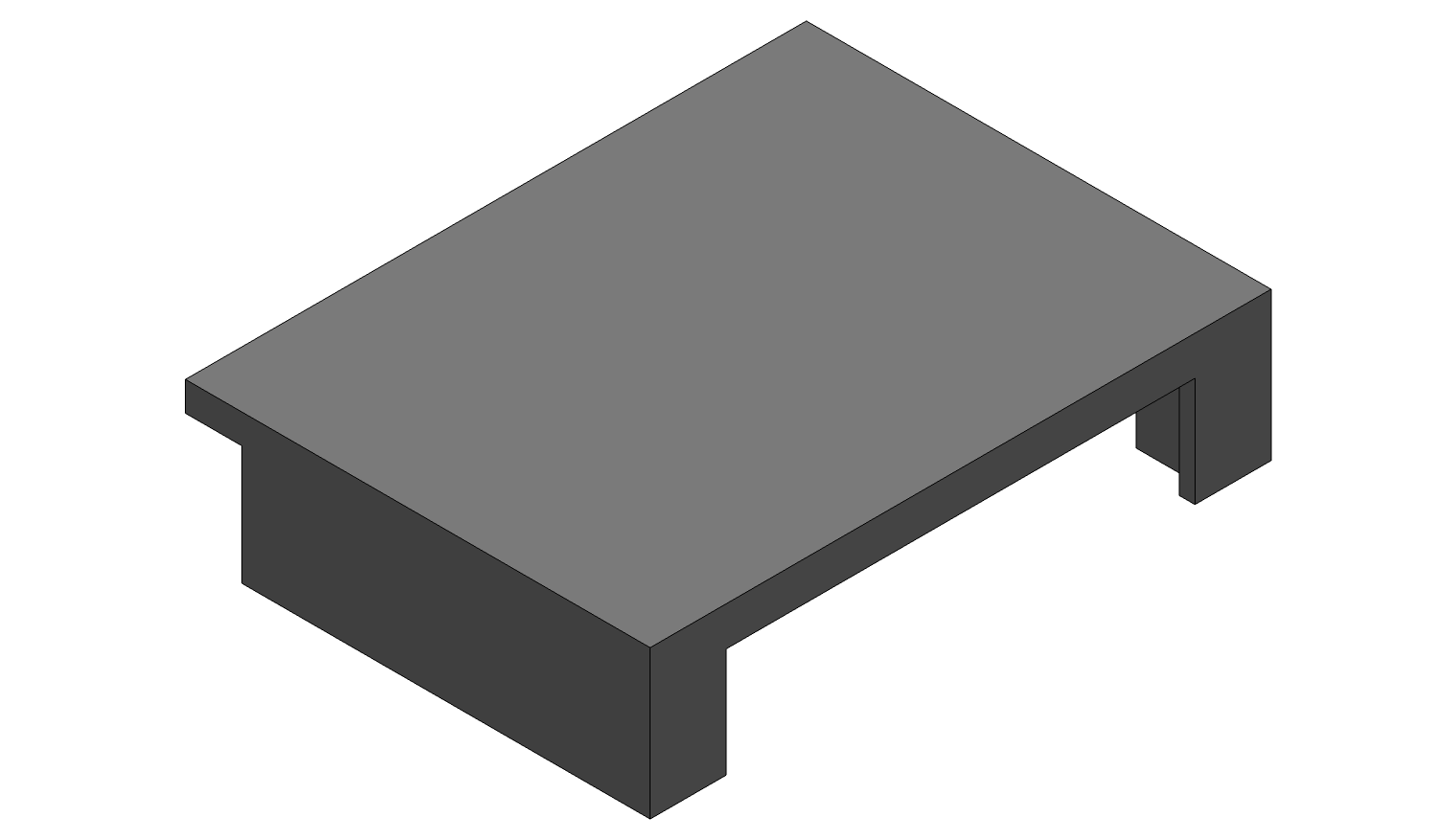

Sensor Top

Sensor top without supports

Part: 2.03.001-3
Revision: v25
Release: 25-JUN-23
File: 2-03-001-3-nsp_v25.stl (15.7KB)
Model History

v24: 27-JUN-21 - Initial upload.
v25: 25-JAN-23 - Updated for laser cut windows.

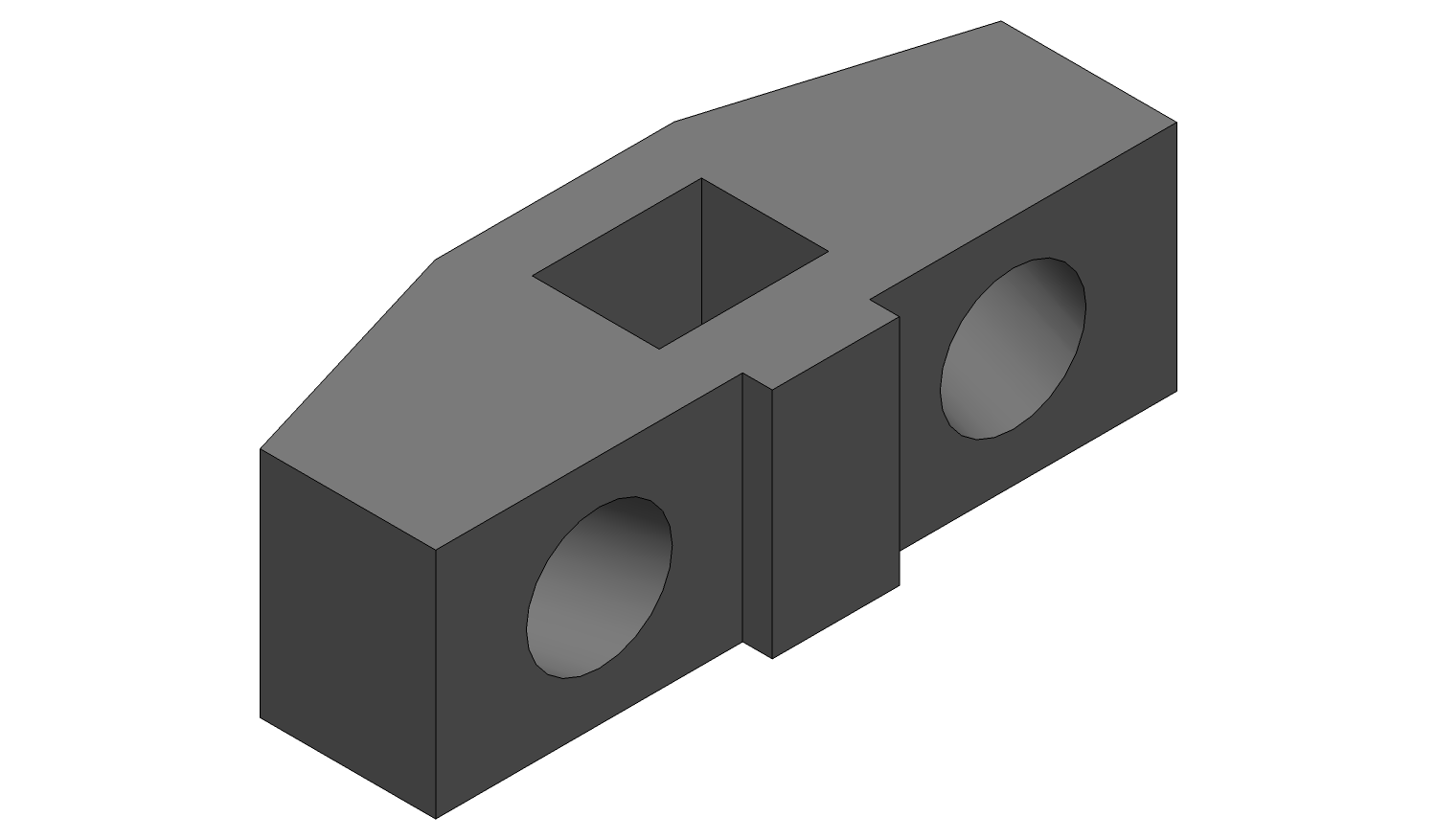

LED Holder

LED holder

Part: 2.03.001-4
Revision: v24
Release: 27-JUN-21
File: 2-03-001-4_v24.stl (22.7KB)
Model History

v24: 27-JUN-21 - Initial upload.

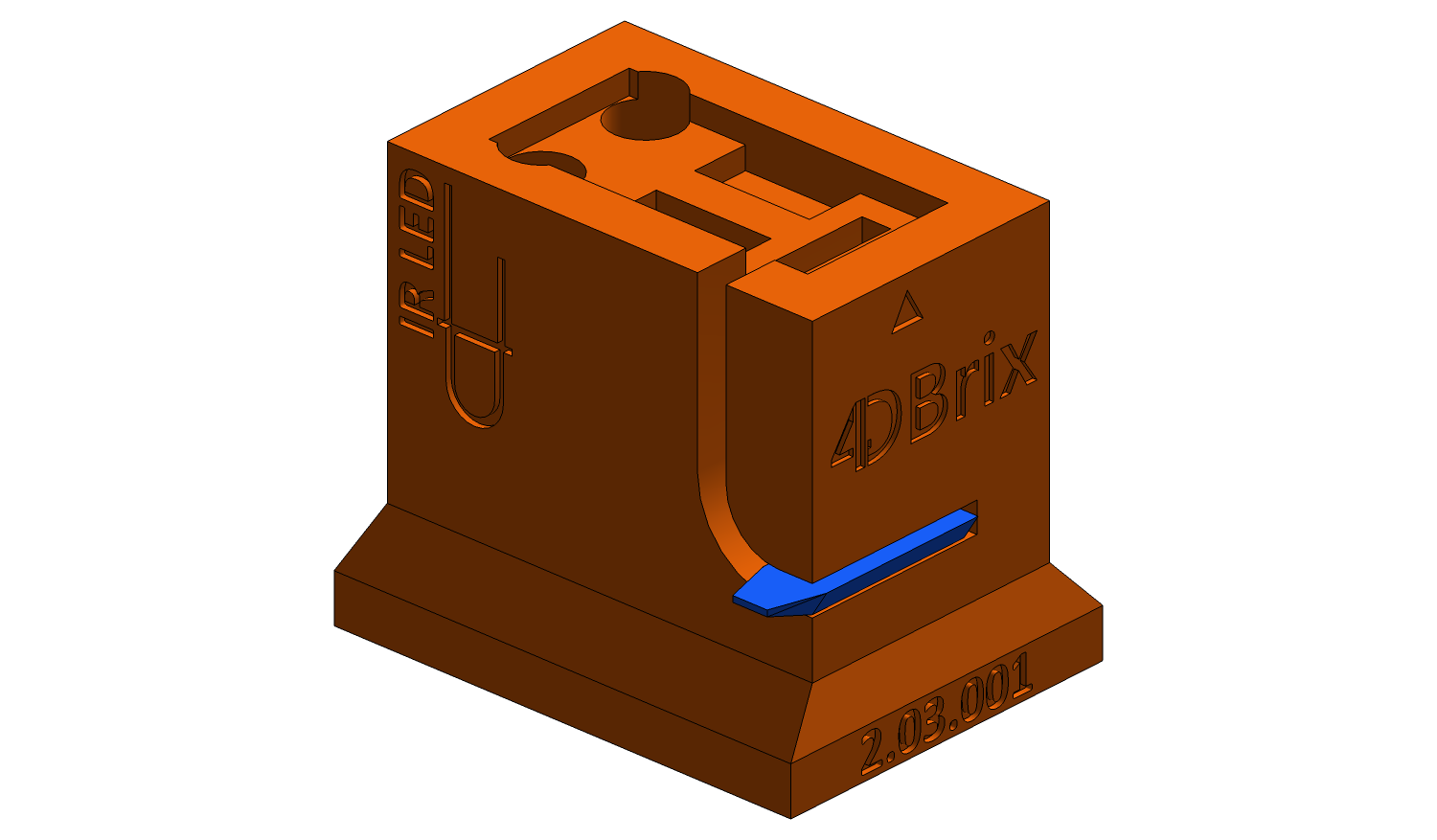

Assembly Jig

Assembly jig for IR train detector.

Part: 2.03.001-5
Revision: v25
Release: 25-JAN-23
File: 2-03-001-5_v25.stl (325.3KB)
Model History

v25: 25JAN-23 - Initial upload.
