2.01.102 - Light Control Button
Introduction
 The light control button is designed to control twin LED based lights.
Description
These light control buttons allow you to automate your train layout without needing a computer. They are part of an automation system inspired by the vintage LEGO® 12V control system but designed for PF / 9V tracks.
The servo control buttons are compatible with all our twin LED based lights:
They have 2 integrated LEDs that show the current state of the switch, decoupler or boom barriers. The top of the control button is studded so you can customize the look with standard LEGO® tiles. The LEDs are white and have a hollow stud, as such the color can be customized using transparent tiles or plates.
The control buttons are interconnectable, so you can easily create a control panel with them. The first control button is powered by a Power Brick which has to be plugged into a wall outlet. The second control button is powered by the first one, etc.

The base of the control buttons is fully anti-studded to make it easy to integrate them into your LEGO® set-up. They are 8 studs wide, 8 studs deep and 5 plates high.
These control buttons can also be used to automate LEGO® monorail layouts. Detailed information can be found on our monorail product pages.
More detailed information on the capabilities of these light control buttons can be found in the instruction manual.

Manuals
BETA Version
This manual is work-in-progress


3D Models

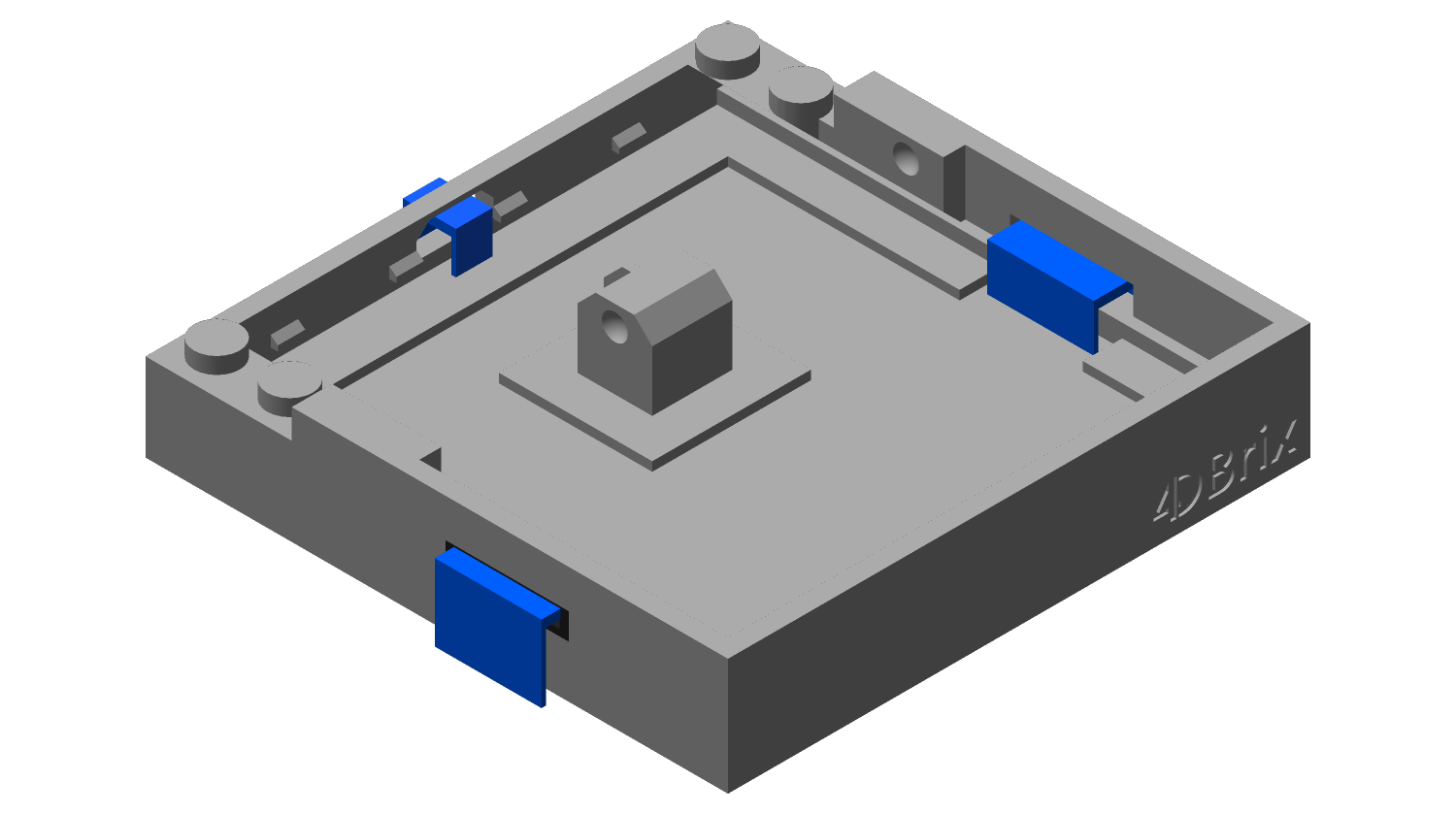

Light Control Button Base
Part: 2.01.102-1
Revision: v03
Release: 26-JUN-21
File: 2-01-102-1_v03.stl (485.5KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v03: 26-JUN-21 - Initial release.

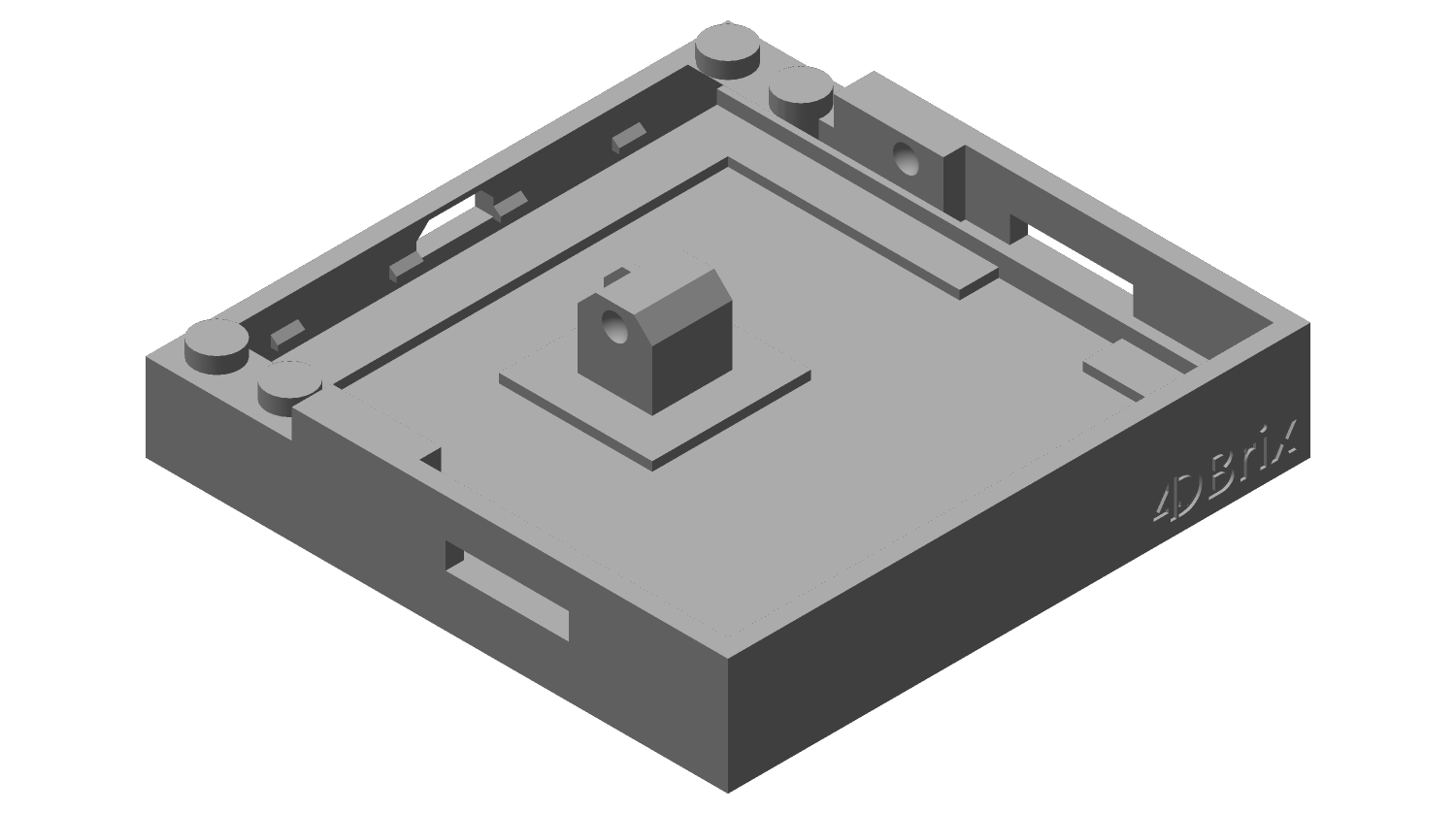

Light Control Button Base - No support
Part: 2.01.102-1
Revision: v03
Release: 26-JUN-21
File: 2-01-102-1-nsp_v03.stl (481.3KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: 20°
  • Infill: 30%

Model History
  • v03: 26-JUN-21 - Initial release.

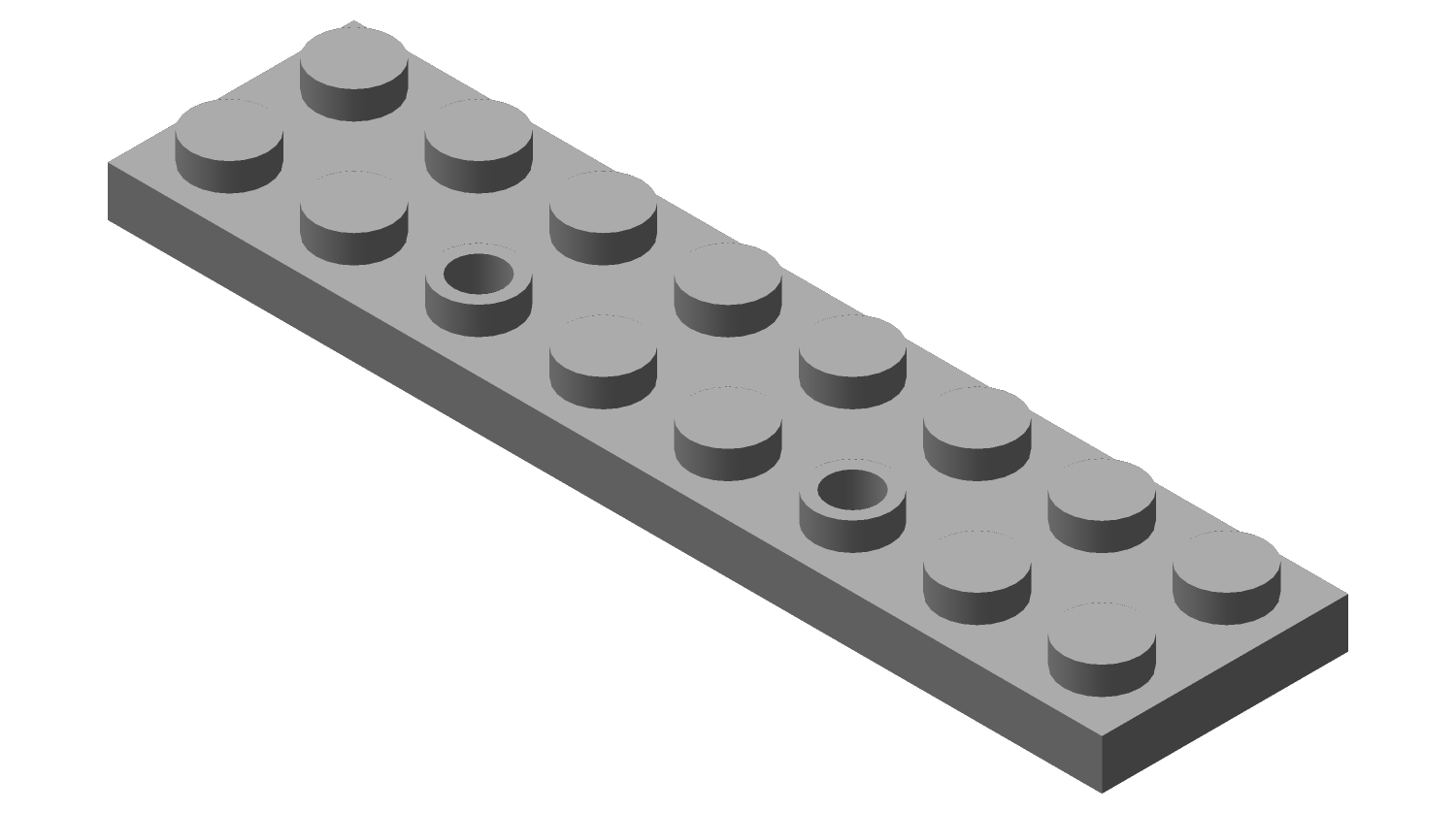

Control Button Plate
Part: 2.01.101-2
Revision: v15
Release: 26-JUN-21
File: 2-01-101-2_v15.stl (258.6KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v15: 26-JUN-21 - Initial release.

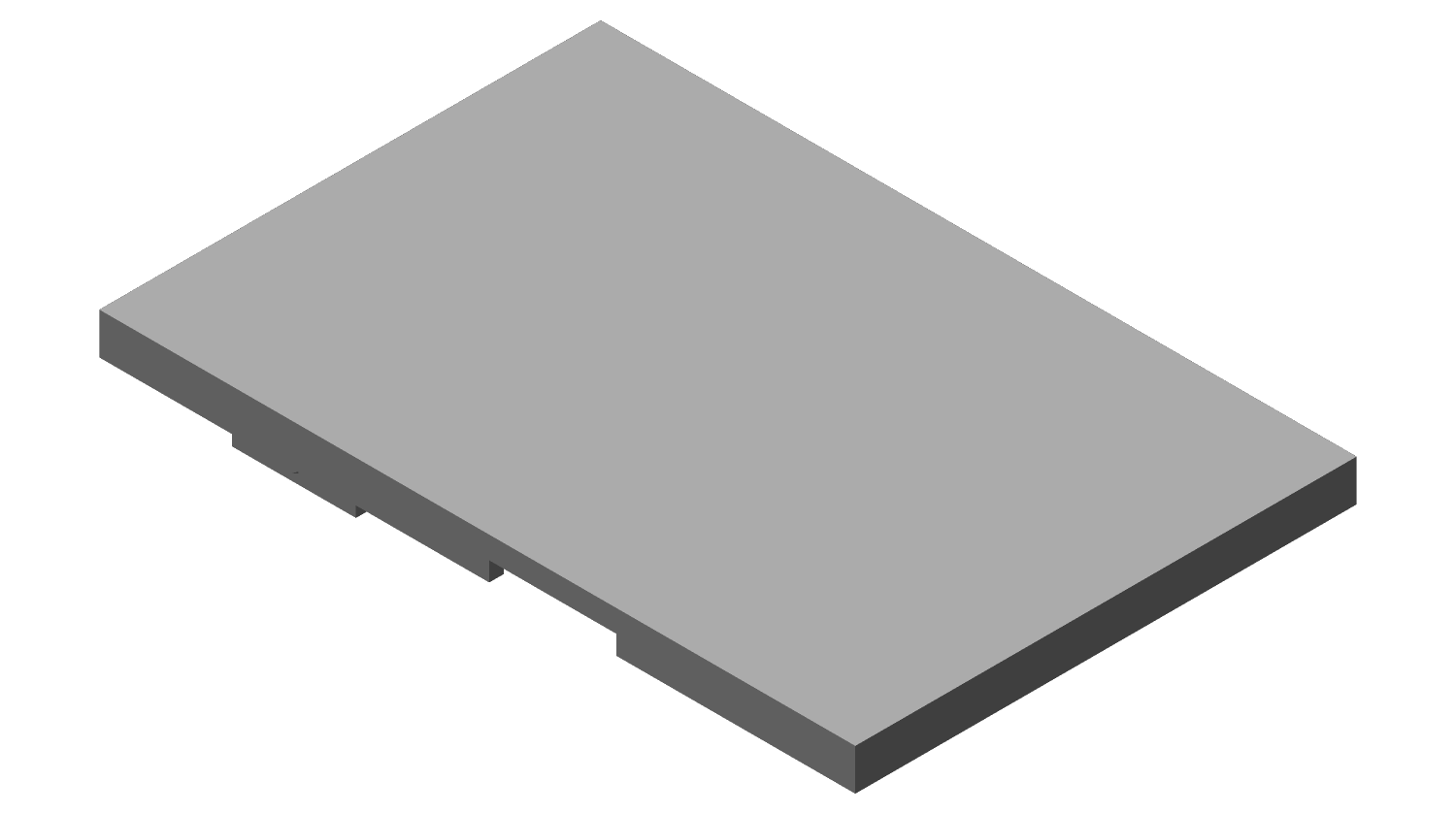

Control Button - Right
Part: 2.01.101-3
Revision: v15
Release: 26-JUN-21
File: 2-01-101-3_v15.stl (27.9KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: 20°
  • Infill: 30%

Model History
  • v15: 26-JUN-21 - Initial release.

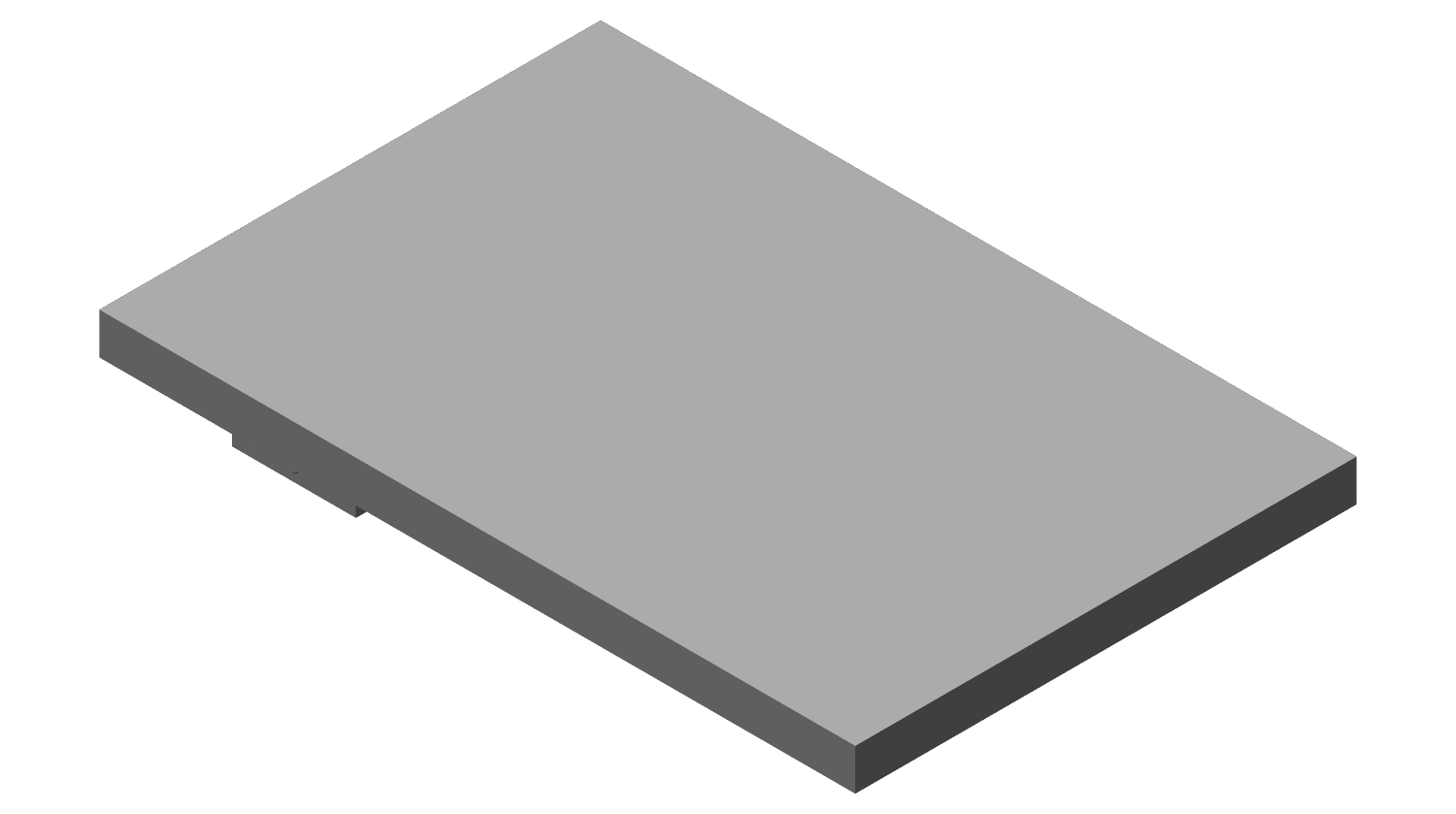

Control Button - Left
Part: 2.01.101-4
Revision: v15
Release: 26-JUN-21
File: 2-01-101-4_v15.stl (27.9KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: 20°
  • Infill: 30%

Model History
  • v15: 26-JUN-21 - Initial release.

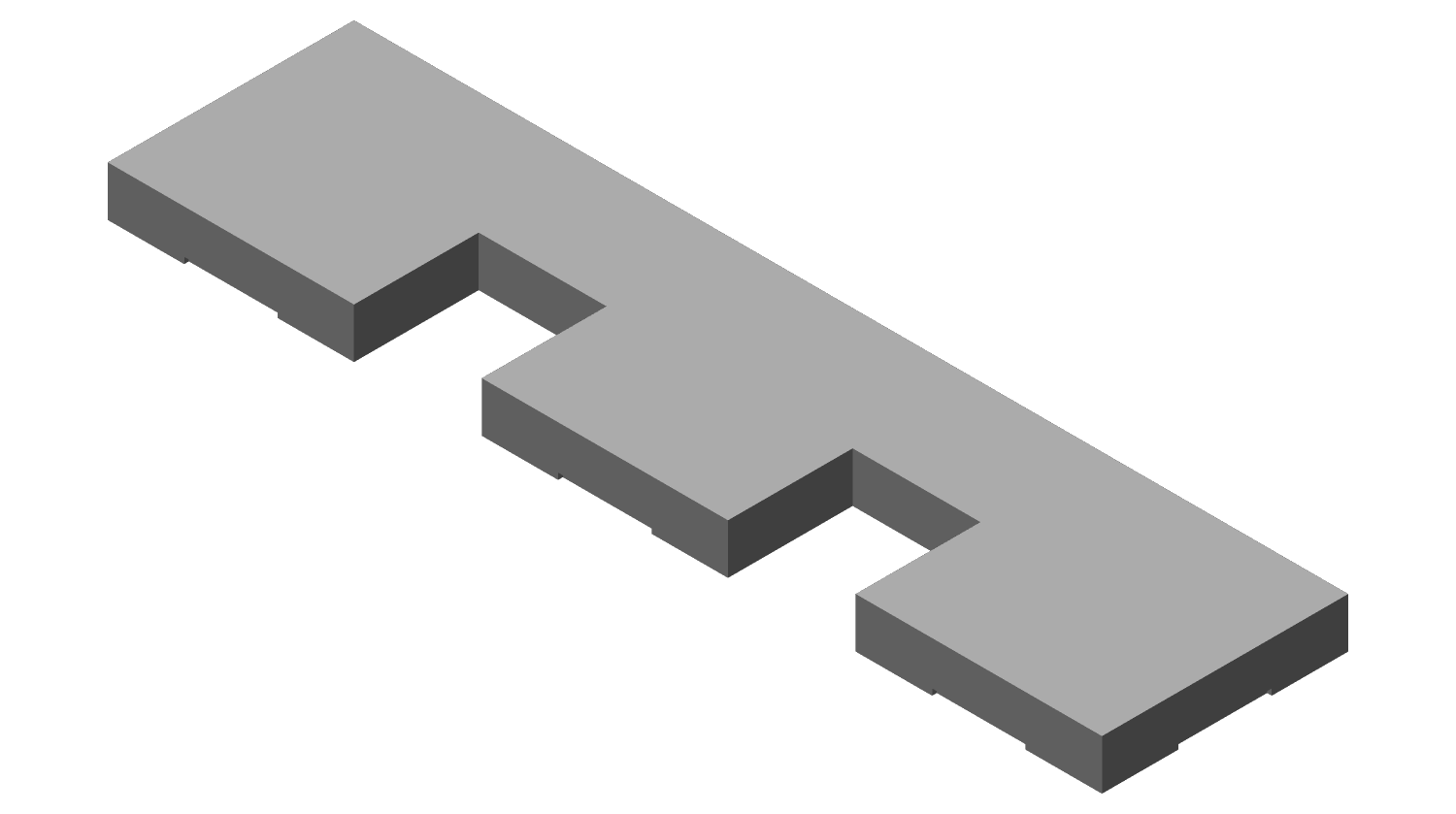

Power Brick Button
Part: 2.01.101-5
Revision: v15
Release: 26-JUN-21
File: 2-01-101-5_v15.stl (65.7KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v15: 26-JUN-21 - Initial release.
