2.01.100 - Power Brick
Introduction
 The power brick is designed to provide power to our control buttons.
Description
The power brick is designed to provide power to our control buttons that allow you to automate your train layout without needing a computer. It's part of an automation system inspired by the vintage LEGO® 12V control system but designed for PF / 9V tracks.
The power brick can provide power to:

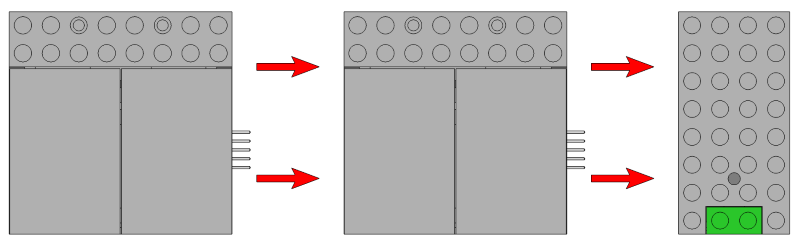

The control buttons are interconnectable, so you can easily create a control panel with them. The first control button is powered by a power brick which has to be plugged into a wall outlet. The second control button is powered by the first one, etc.

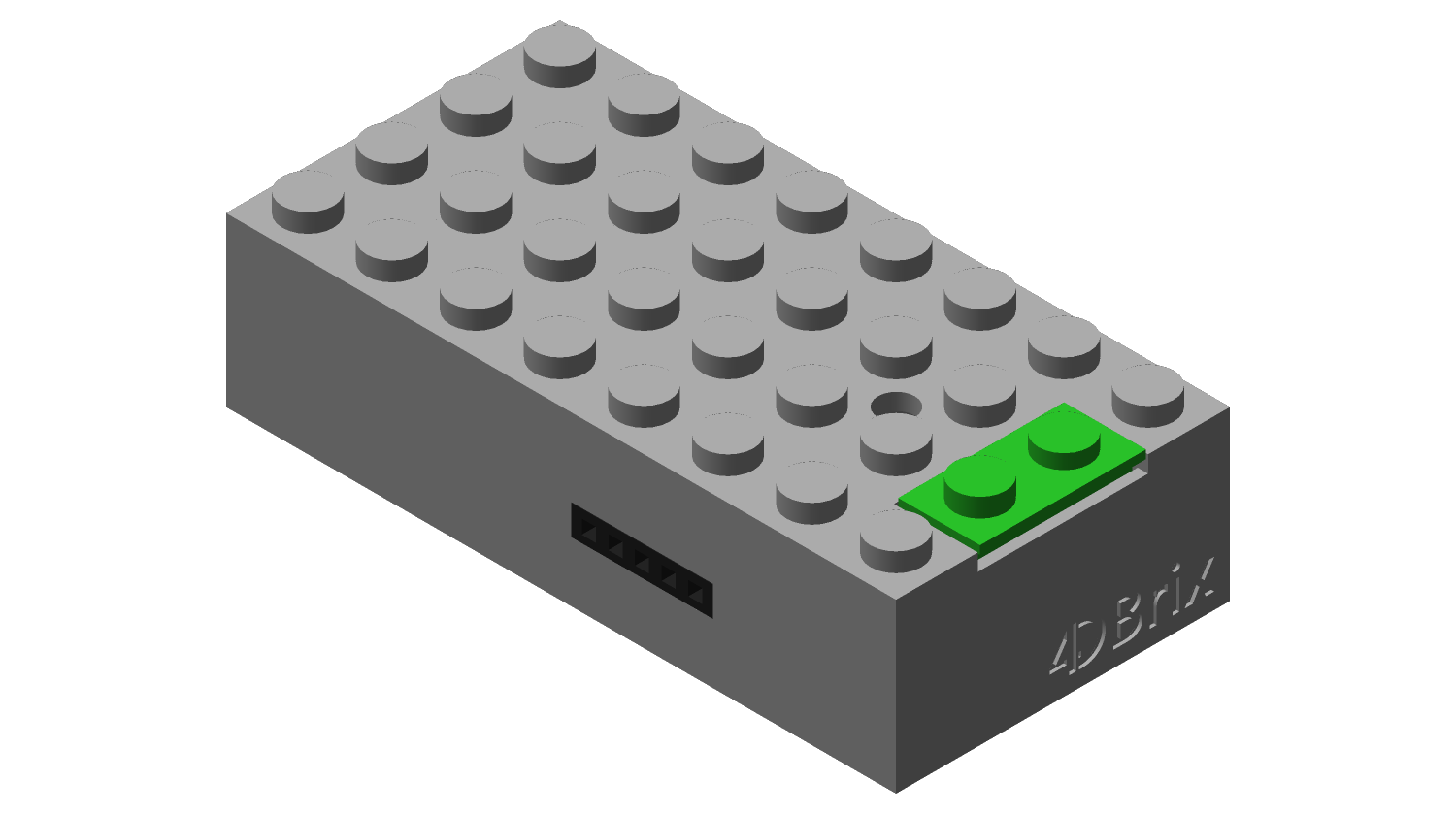

The LED of the power brick provide feedback on the power consumption. When too many control buttons are connected to the power brick the LED, which is normally green, will turn red. The base of the power brick is fully anti-studded to make it easy to integrate them into your LEGO® set-up. They are 4 studs wide, 8 studs deep and 5 plates high.
More detailed information on the capabilities of these light control buttons can be found in the instruction manual.
Manuals
BETA Version
This manual is work-in-progress


3D Models

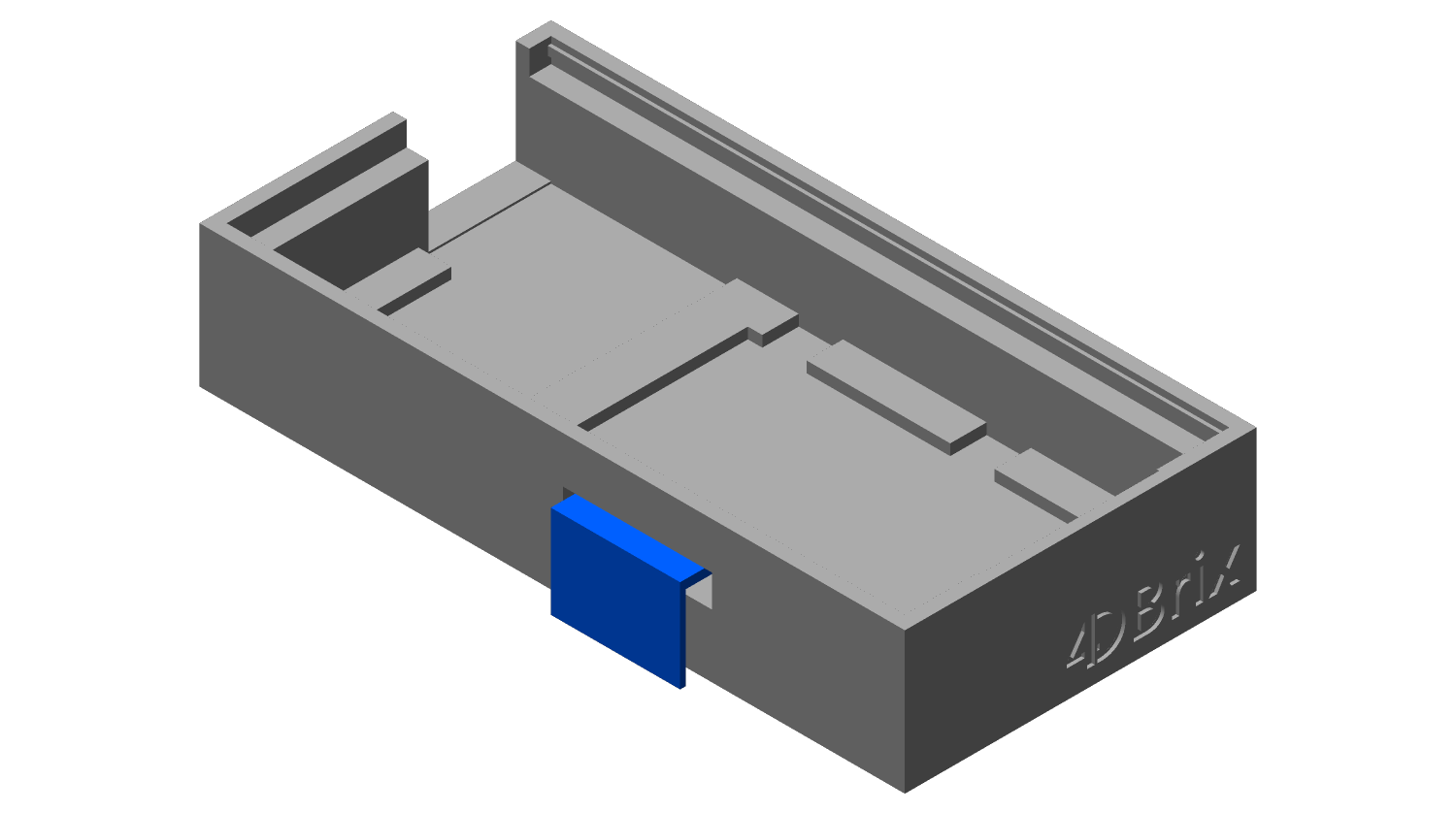

Power Brick Base
Part: 2.01.100-1
Revision: v16
Release: 26-JUN-21
File: 2-01-100-1_v16.stl (190.2KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v16: 26-JUN-21 - Initial release.

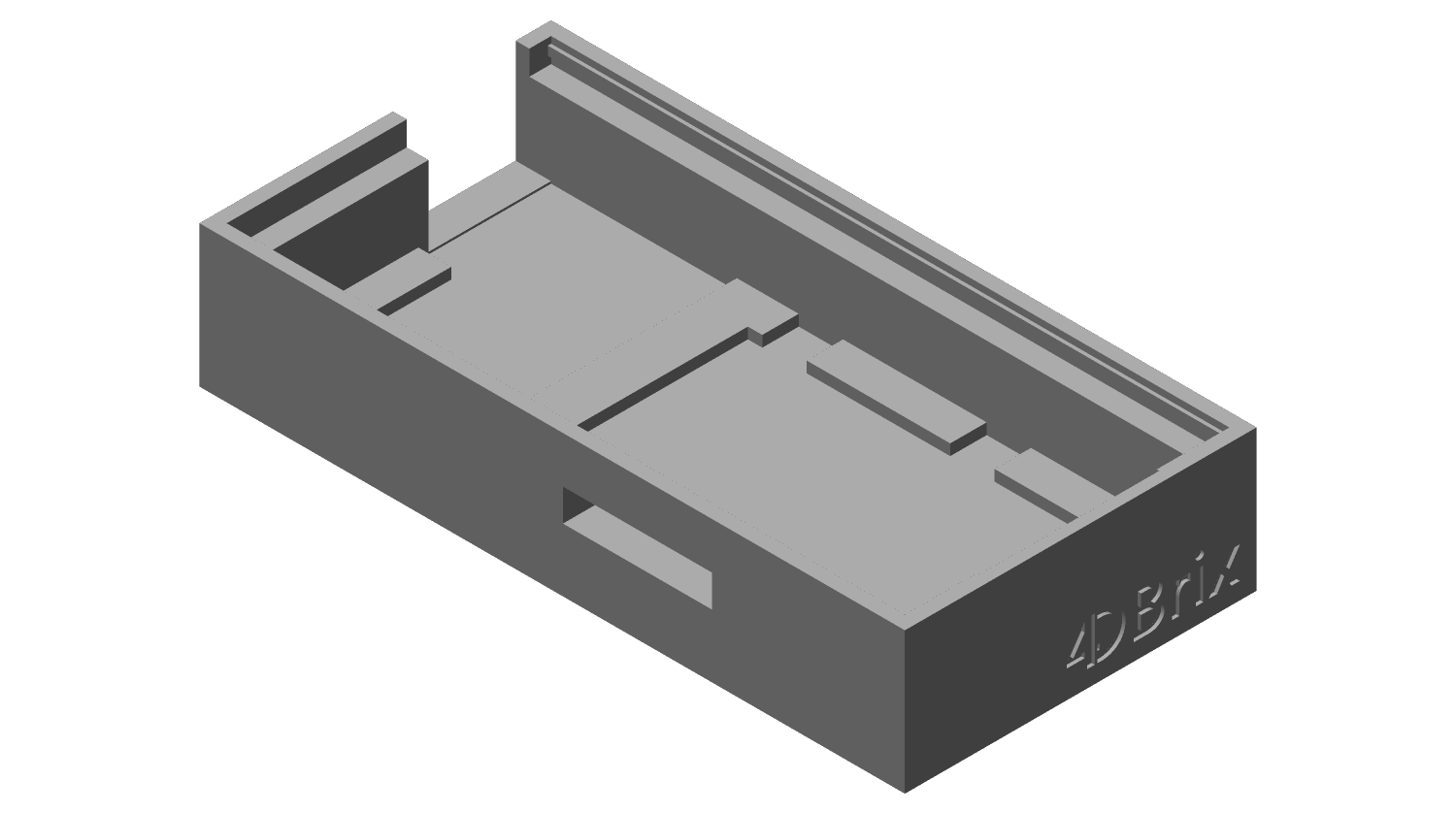

Power Brick Base - No support
Part: 2.01.100-1
Revision: v16
Release: 26-JUN-21
File: 2-01-100-1-nsp_v16.stl (188.9KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v16: 26-JUN-21 - Initial release.

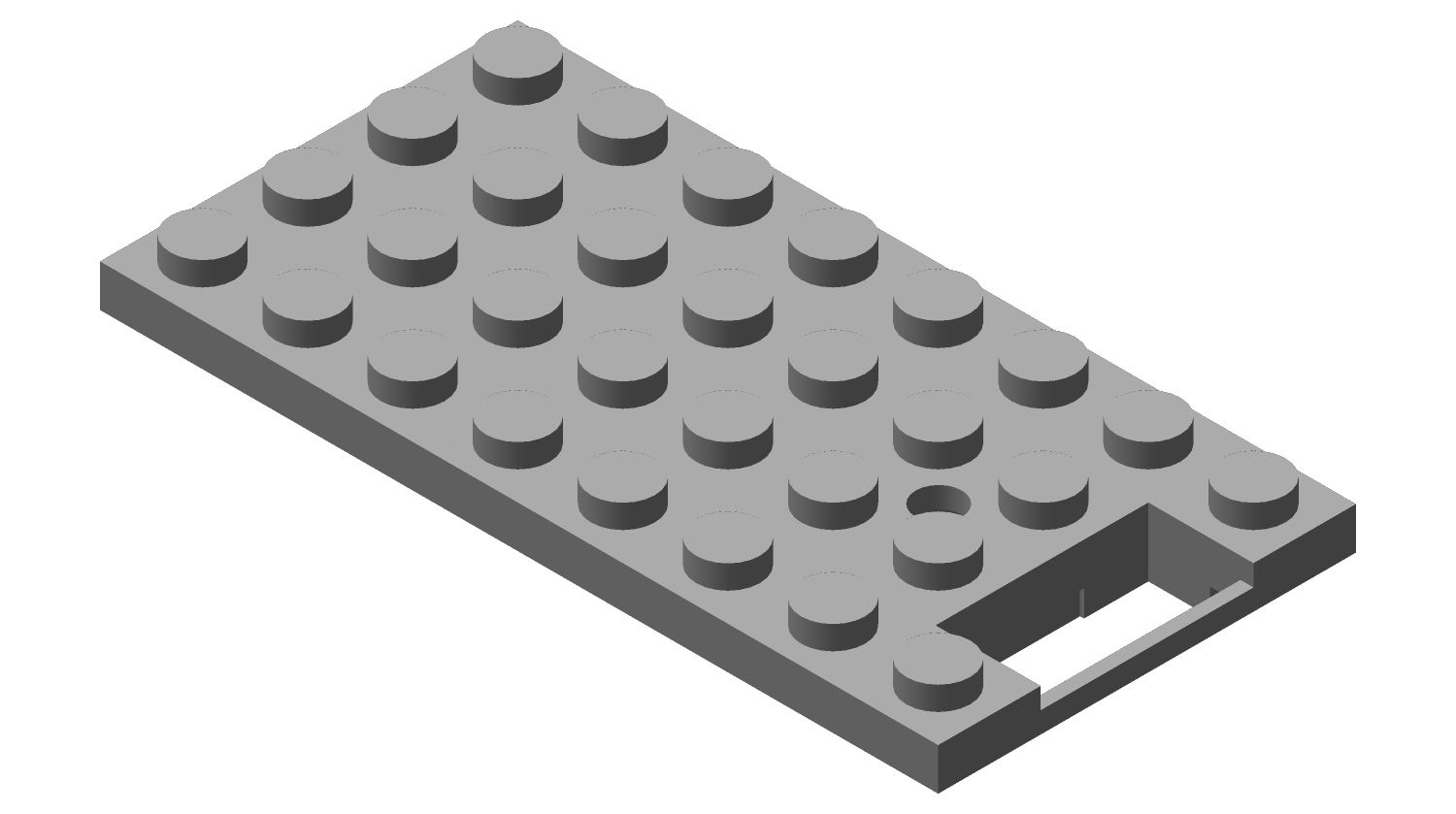

Power Brick Cover
Part: 2.01.100-2
Revision: v16
Release: 26-JUN-21
File: 2-01-100-2_v16.stl (436.0KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: 20°
  • Infill: 30%

Model History
  • v16: 26-JUN-21 - Initial release.

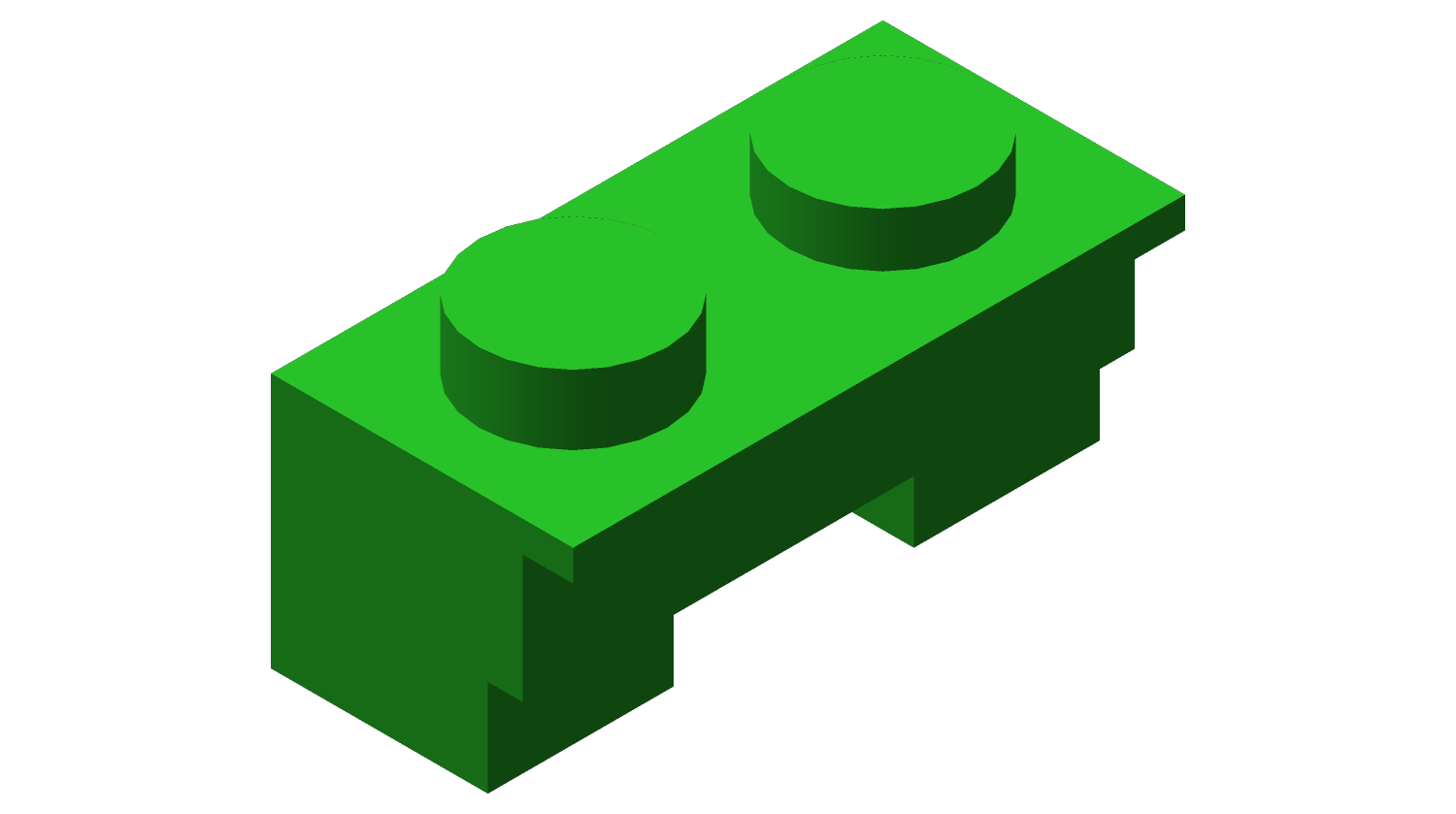

Power Brick Button
Part: 2.01.100-3
Revision: v16
Release: 26-JUN-21
File: 2-01-100-3_v16.stl (36.4KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: 20°
  • Infill: 30%

Model History
  • v16: 26-JUN-21 - Initial release.
