Home > Products > Trains > Controllers

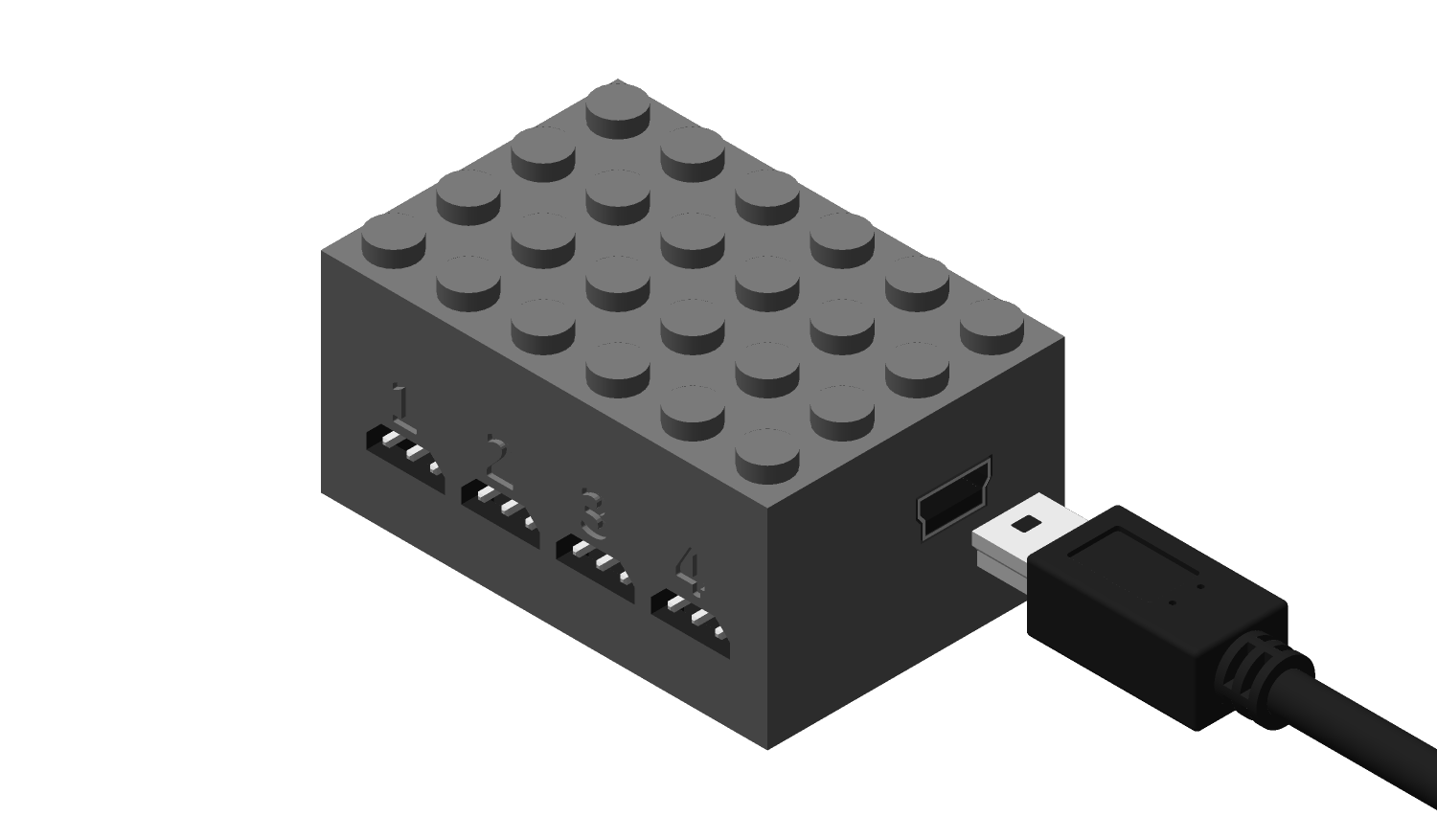

2.01.001 - Quad Switch Controller

Introduction

This USB controller can control up to 4 servo motors. It can be used with our nControl™ automation software or using a DIY software application.

Manuals

BETA Version

This manual is work-in-progress

3D Models

Controller Base

Part: 2.01.001-1
Revision: v20
Release: 28-FEB-21
File: 2-01-001-1_v20.stl (283.4KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v20: 28-FEB-21 - Initial release.

Controller Cover

This model has an integrated support.

Part: 2.01.001-2
Revision: v20
Release: 28-FEB-20
File: 2-01-001-2_v20.stl (380.0KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v20: 28-FEB-21 - Initial release.

Controller Cover

This model has no integrated support.

Part: 2.01.001-2
Revision: v20
Release: 28-FEB-21
File: 2-01-001-2-nsp_v20.stl (354.3KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20° angle
Infill: 30%

Model History

v20: 28-FEB-21 - Initial release.
