Home > Products > Monorail > Automation

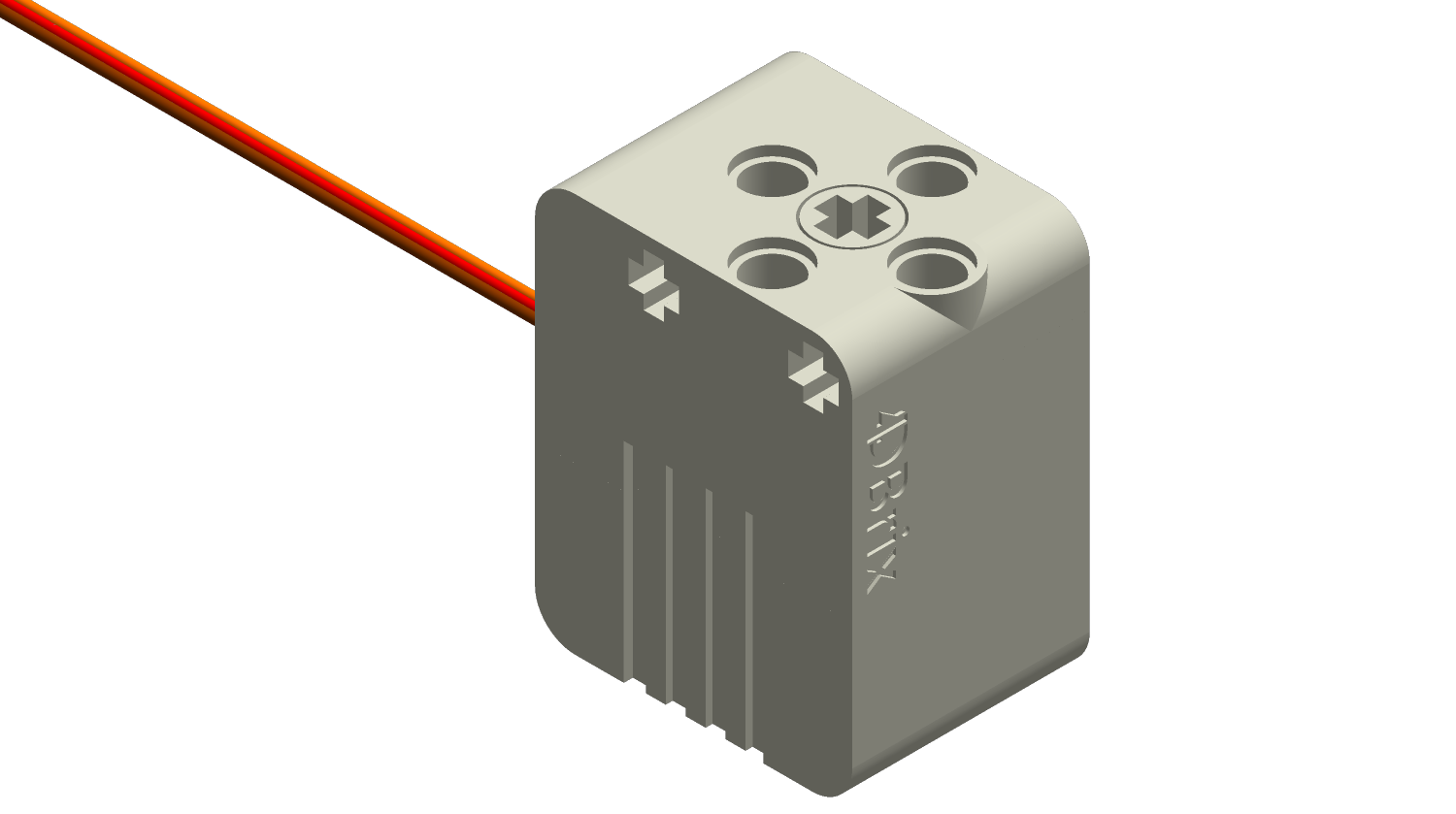

1.02.001 - Servo Motor

Introduction

In combination with the monorail motor brackets, this servo motor can be used to automate the LEGO® mono and directional monorail switches. They can be controlled with a quad switch or starter controller.

Width: 3 studs
Depth: 4 studs
Height: 5 studs

Manuals

3D Models

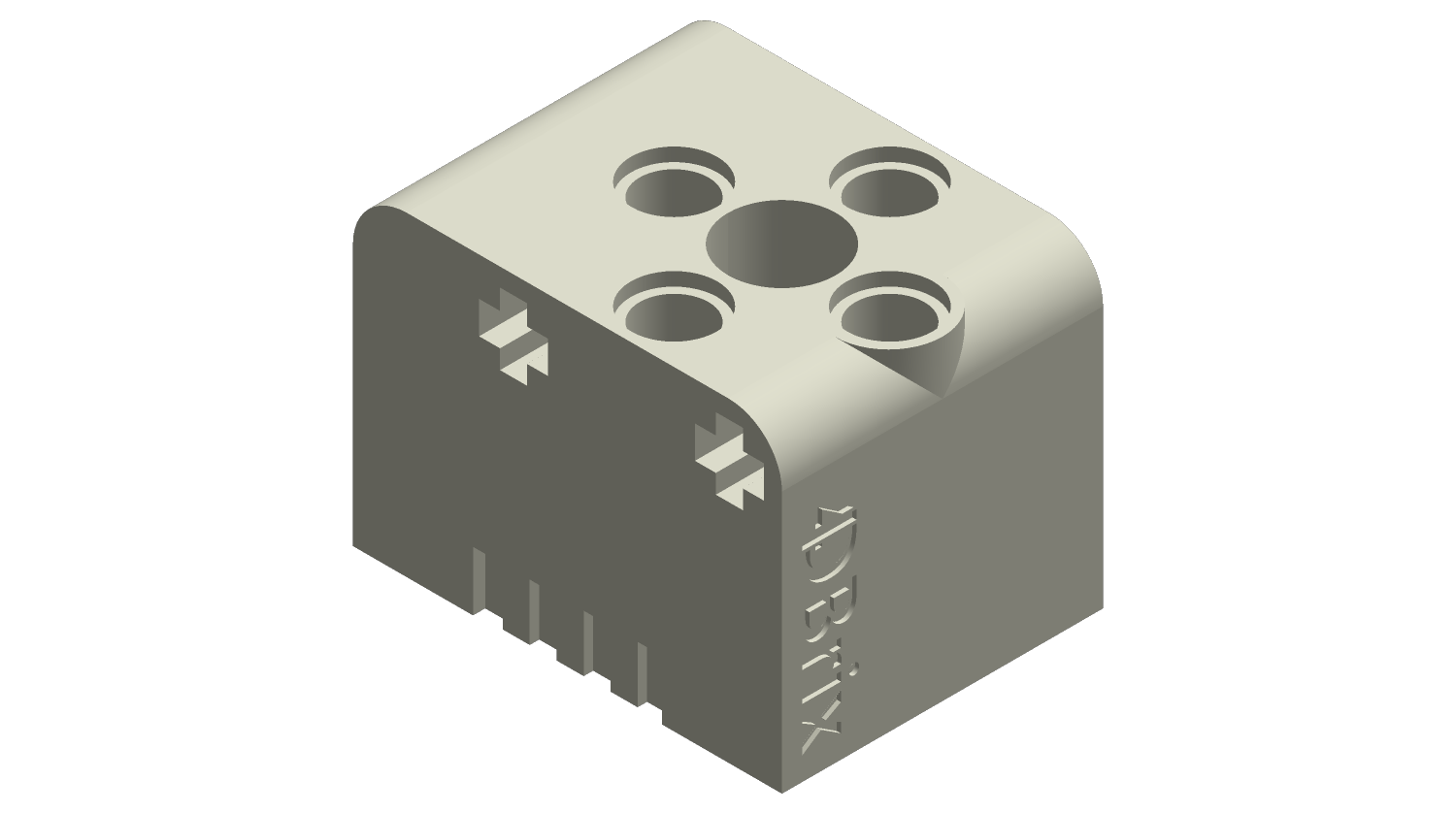

Servo Motor - Base

Motor base with integrated supports

Part: 1.02.001-1
Revision: v41
Release: 16-JUN-21
File: 1-02-001-1_v41.stl (342.3KB)
Model History

v41: 16-JUN-21 - Initial upload.

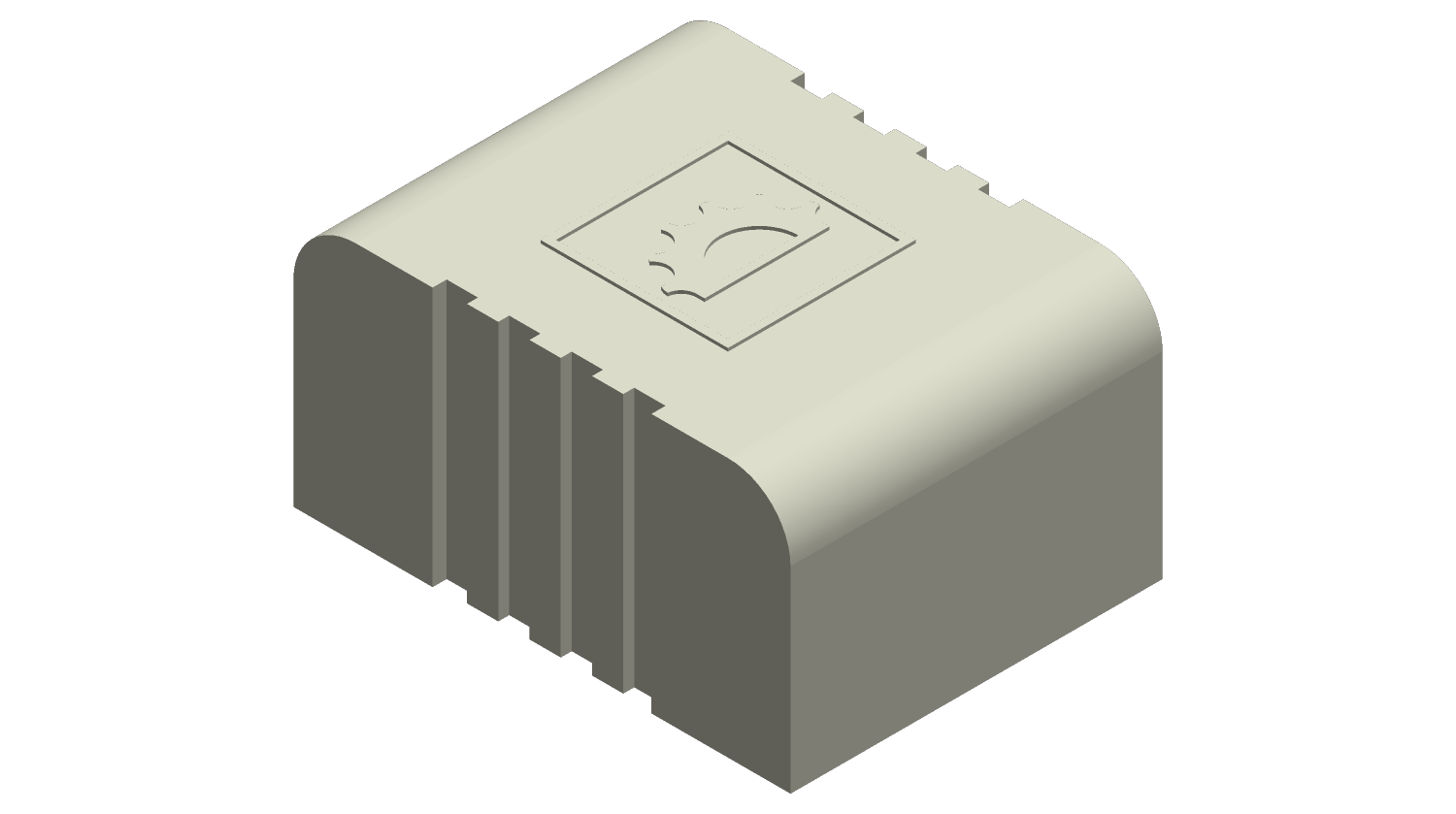

Servo Motor - Base

Motor cover with integrated supports

Part: 1.02.001-2
Revision: v41
Release: 16-JUN-21
File: 1-02-001-2_v41.stl (105.7KB)
Model History

v41: 16-JUN-21 - Initial upload.

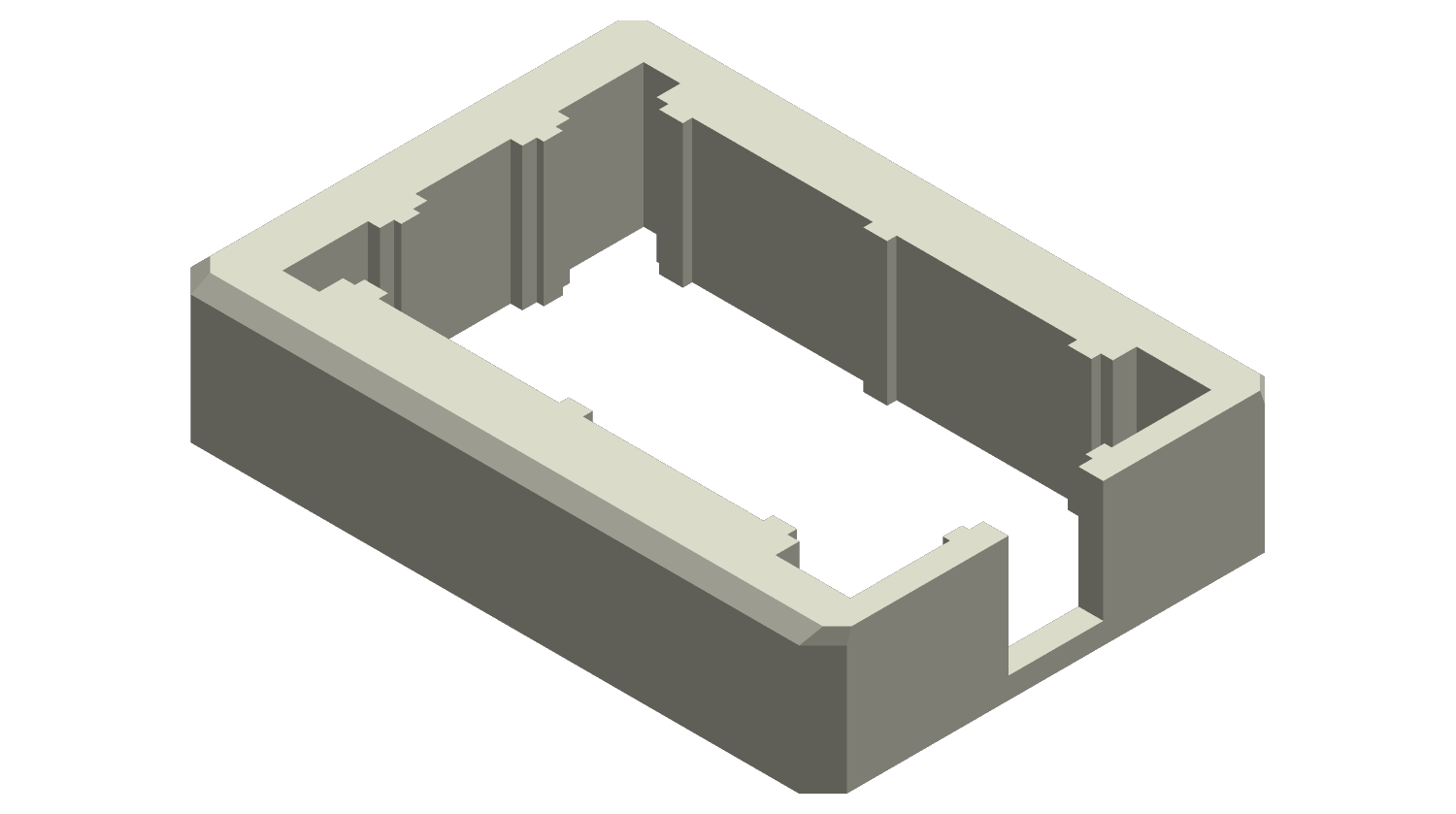

Servo Motor - Connector

Servo motor connector

Part: 1.02.001-3
Revision: v41
Release: 16-JUN-21
File: 1-02-001-3_v41.stl (14.9KB)
Model History

v41: 16-JUN-21 - Initial upload.

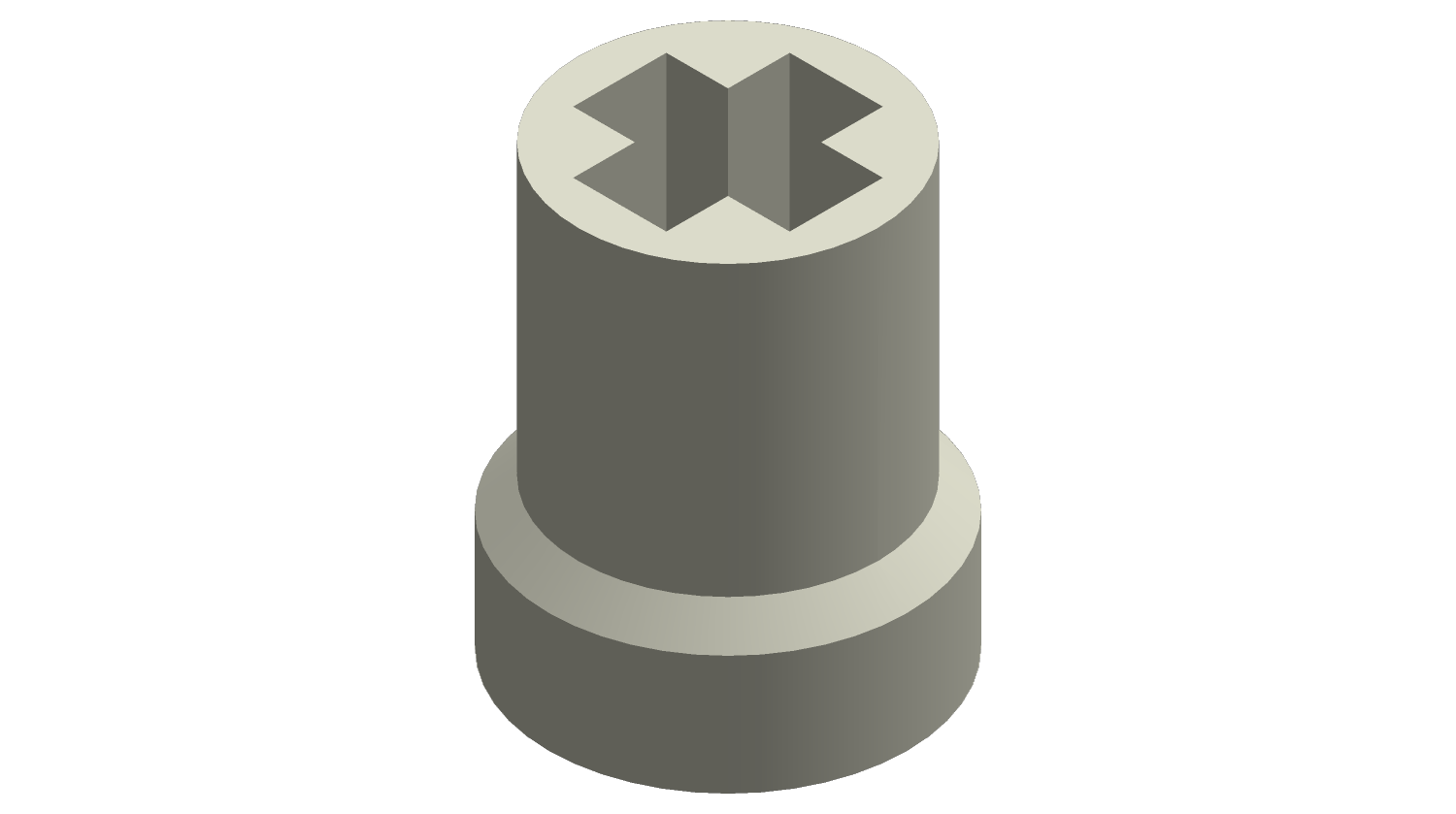

Servo Motor - Gear

Servo motor gear

Part: 1.02.001-4
Revision: v41
Release: 16-JUN-21
File: 1-02-001-4_v41.stl (36.3KB)
Model History

v41: 16-JUN-21 - Initial upload.
