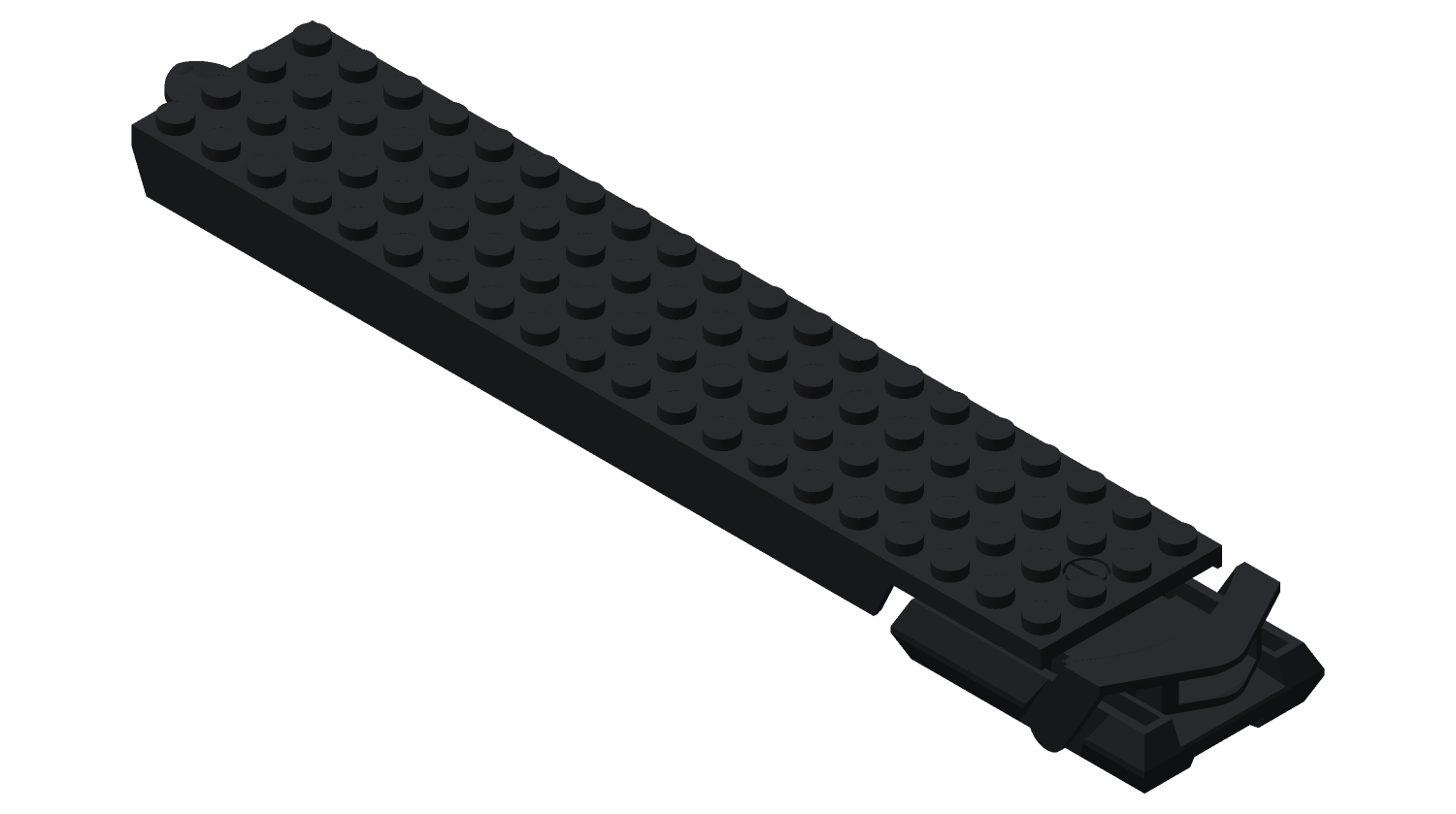

3.02.005 - 20 Stud Long Extension Car

Introduction

Part 3.02.005 is a 20 stud long extension car.

3D Models

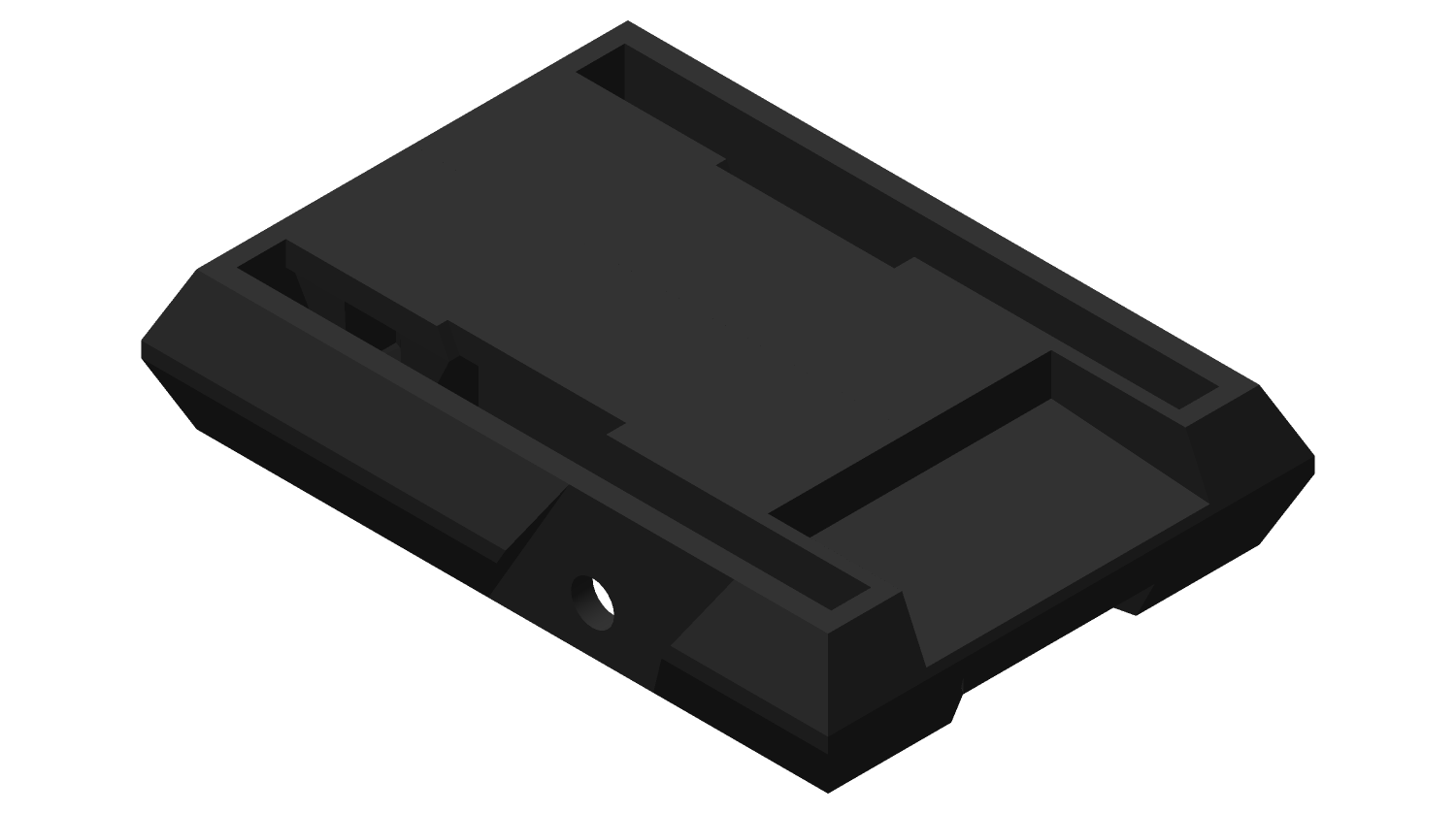

Extension Car Bogey

Part: 3.02.001-1
Revision: v05
Release: 24-JAN-21
File: 3-02-001-1_v05.stl (90.9KB)
Suggested Print Settings

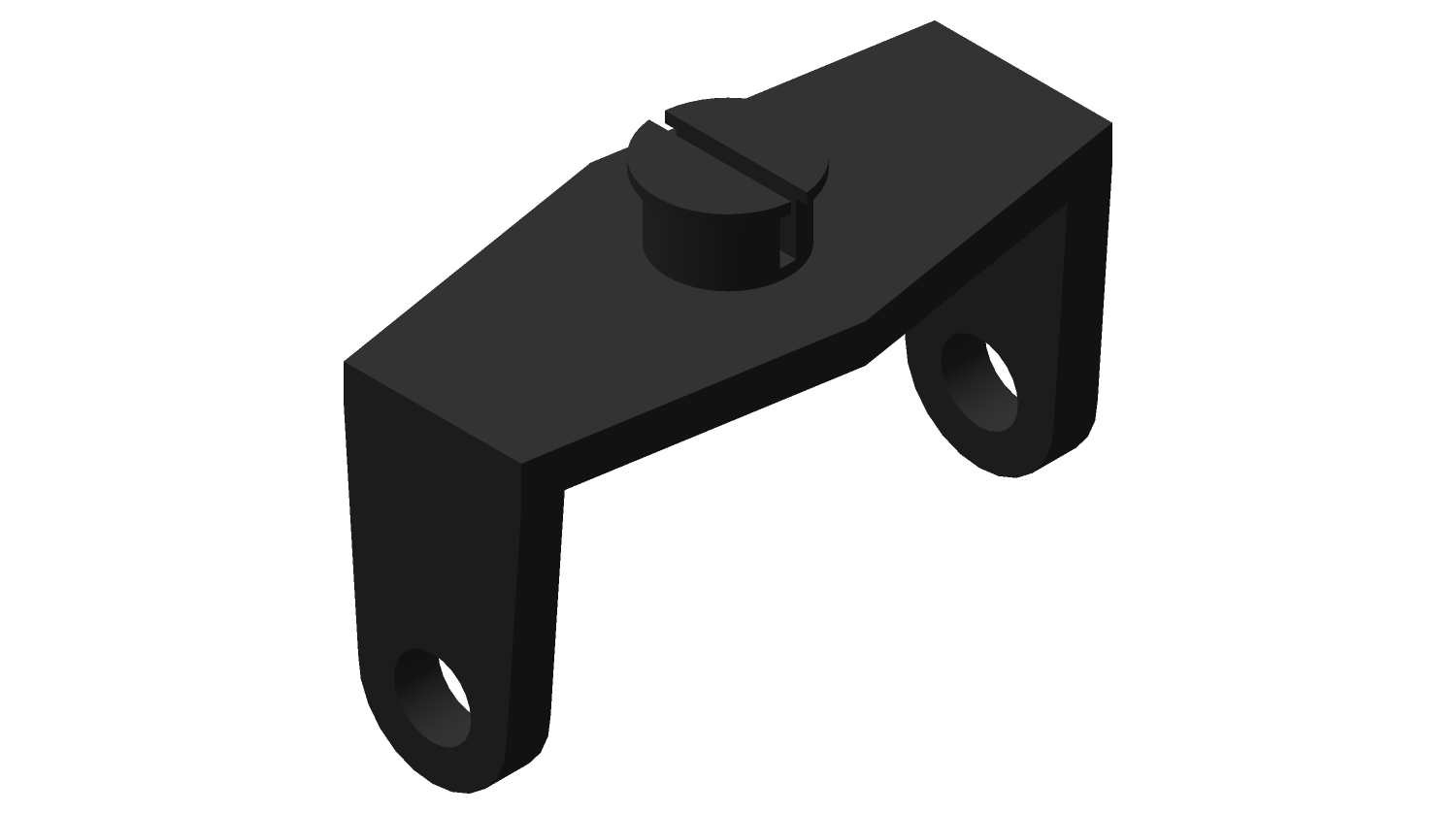

Bogey Bracket

Part: 3.02.001-2
Revision: v04
Release: 24-JAN-21
File: 3-02-001-2_v04.stl (36.6KB)
Suggested Print Settings

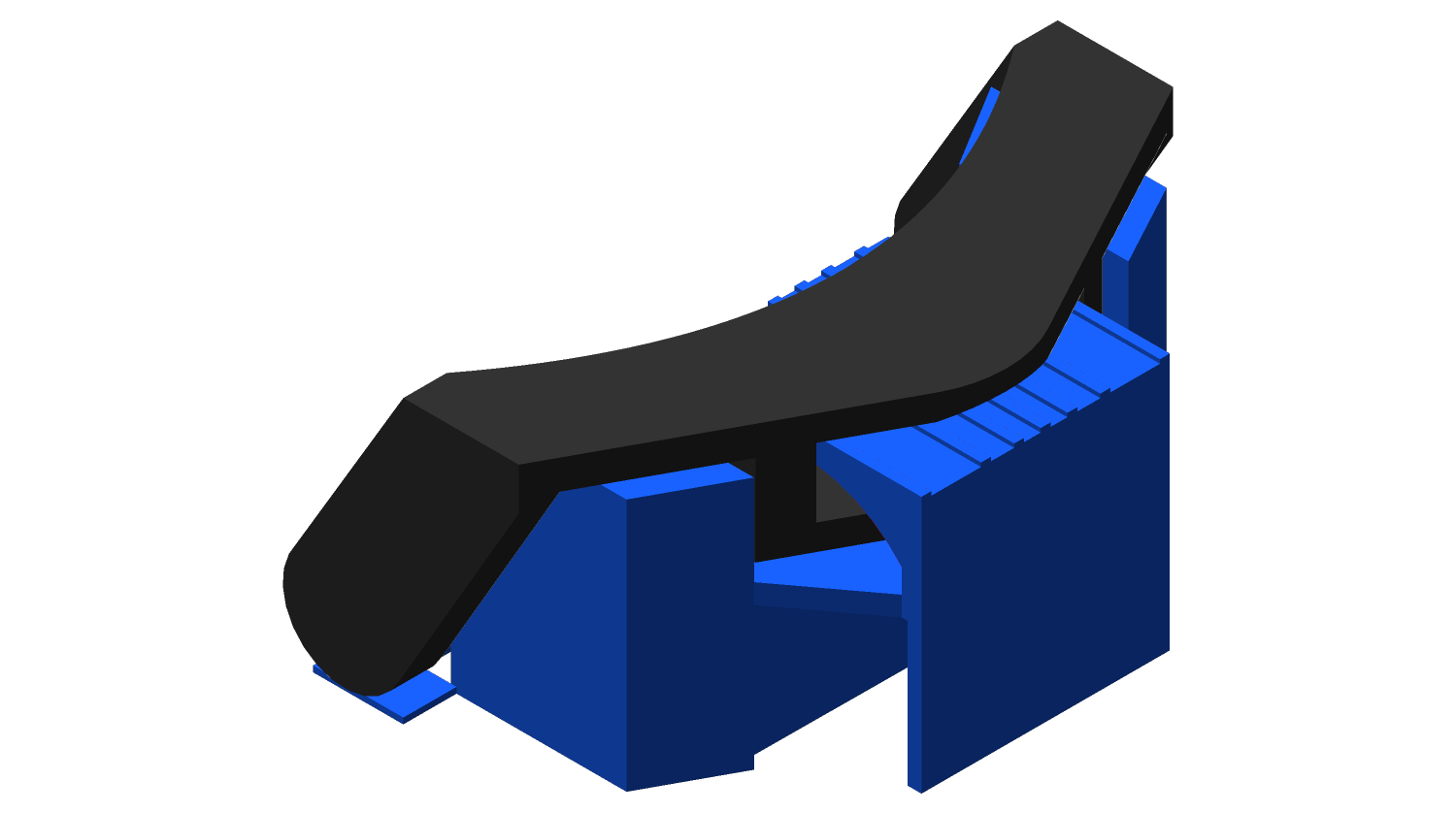

Coupling

Part: 3.02.001-3
Revision: v04
Release: 24-JAN-21
File: 3-02-001-3_v04.stl (64.9KB)
Suggested Print Settings

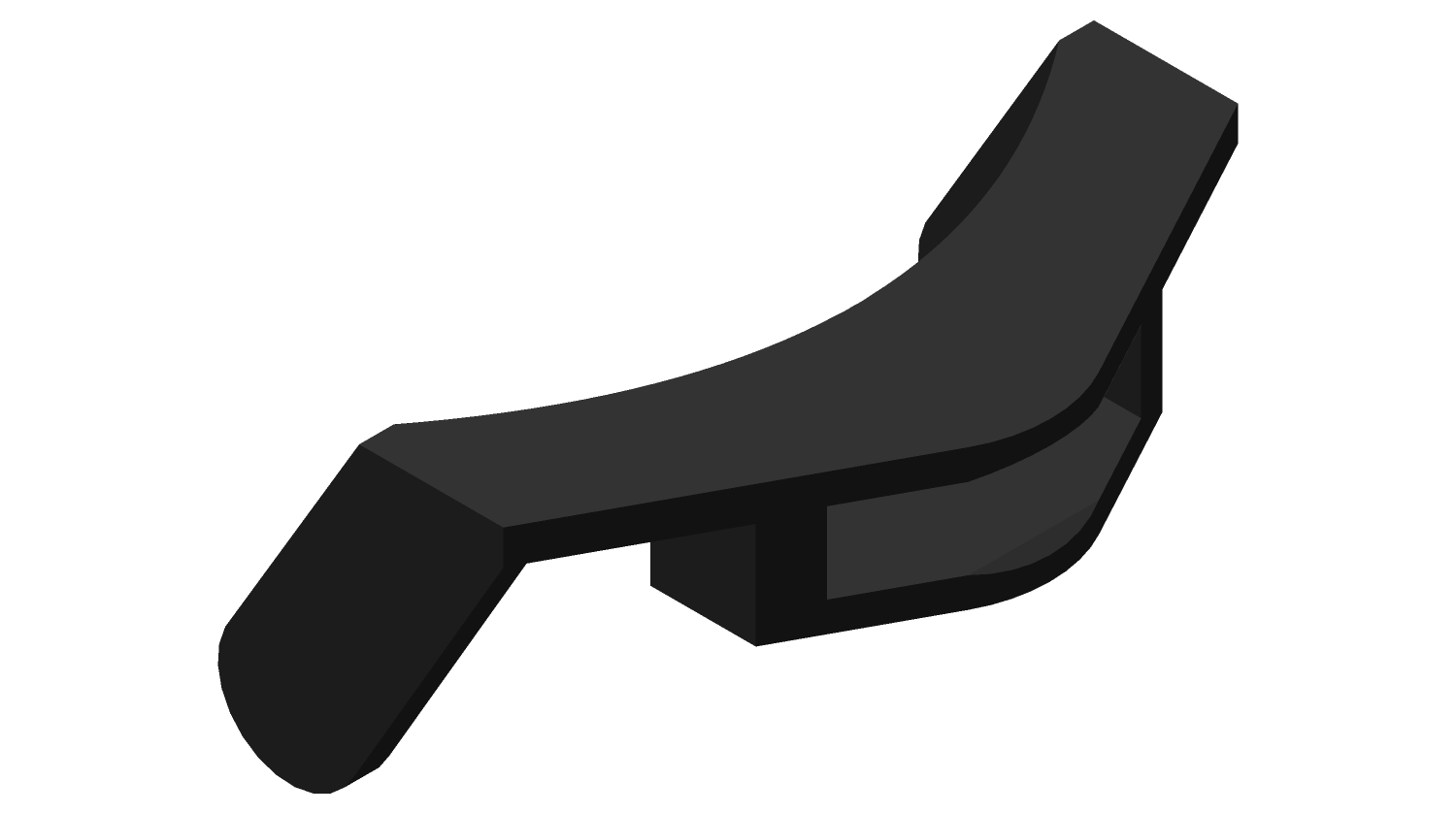

Coupling - No support

Part: 3.02.001-3
Revision: v04
Release: 24-JAN-21
File: 3-02-001-3-nsp_v04.stl (39.7KB)
Suggested Print Settings

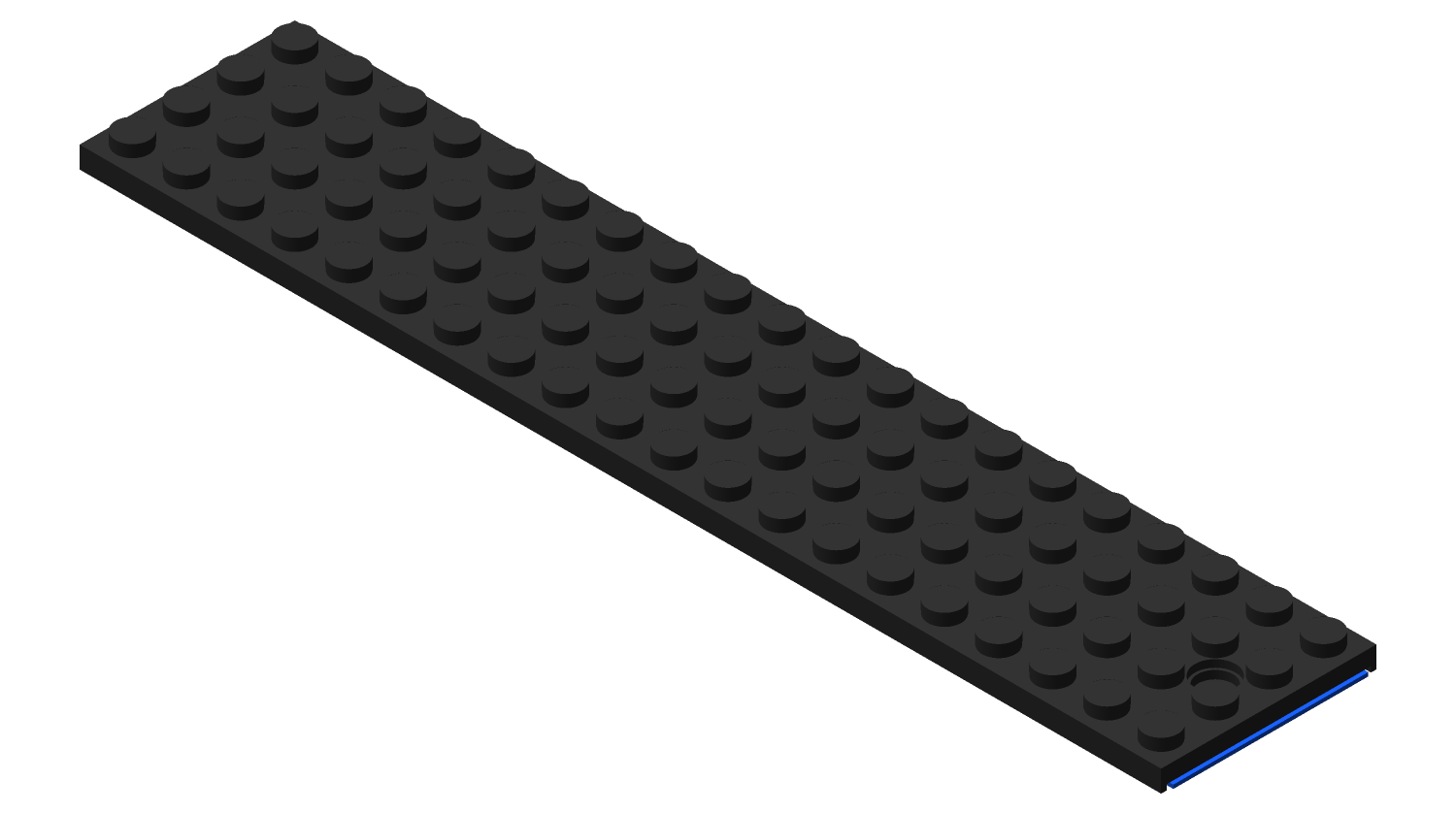

Base Plate

Part: 3.02.005-4
Revision: v07
Release: 24-JAN-21
File: 3-02-005-4_v07.stl (1,402.1KB)
Suggested Print Settings

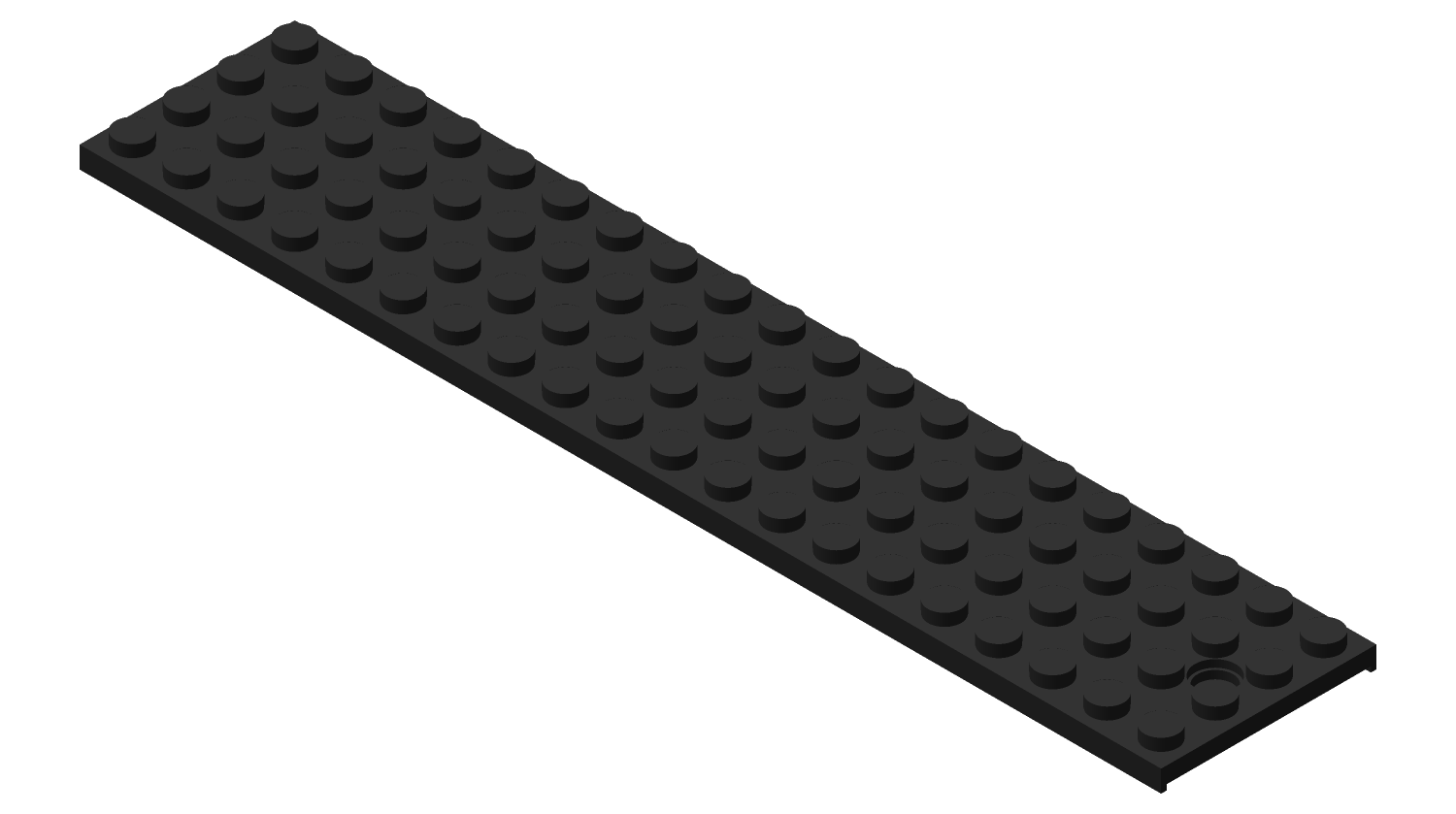

Base Plate - No support

Part: 3.02.005-4
Revision: v07
Release: 24-JAN-21
File: 3-02-005-4-nsp_v07.stl (1,396.9KB)
Suggested Print Settings

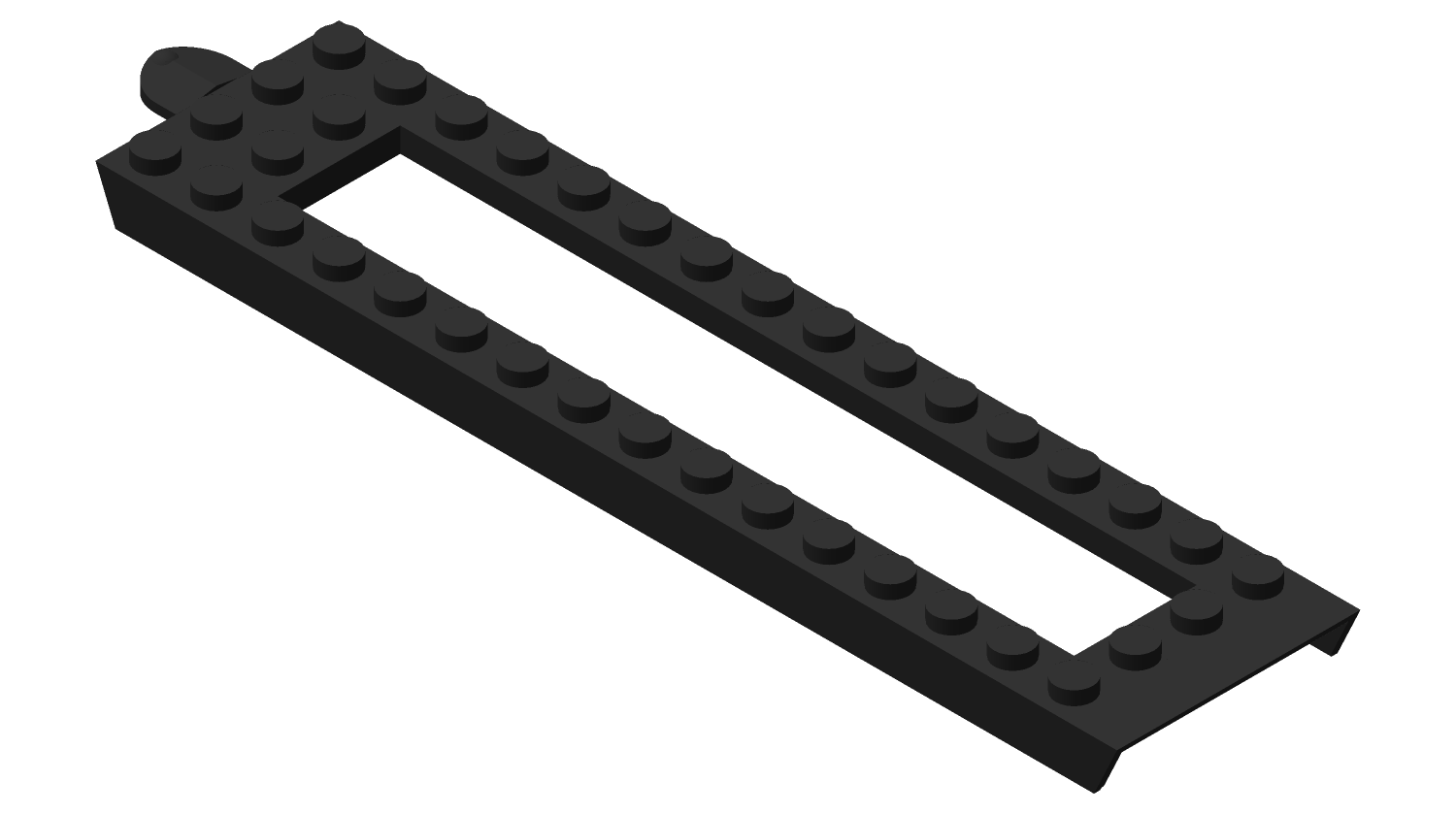

Chassis

Part: 3.02.005-5
Revision: v04
Release: 24-JAN-21
File: 3-02-005-5_v04.stl (551.3KB)
Suggested Print Settings

v03: 24-JAN-21 - Initial upload.
v04: 21-FEB-21 - Descretize bump on connector to have better
stability of slicing over a wide range range of slicers.

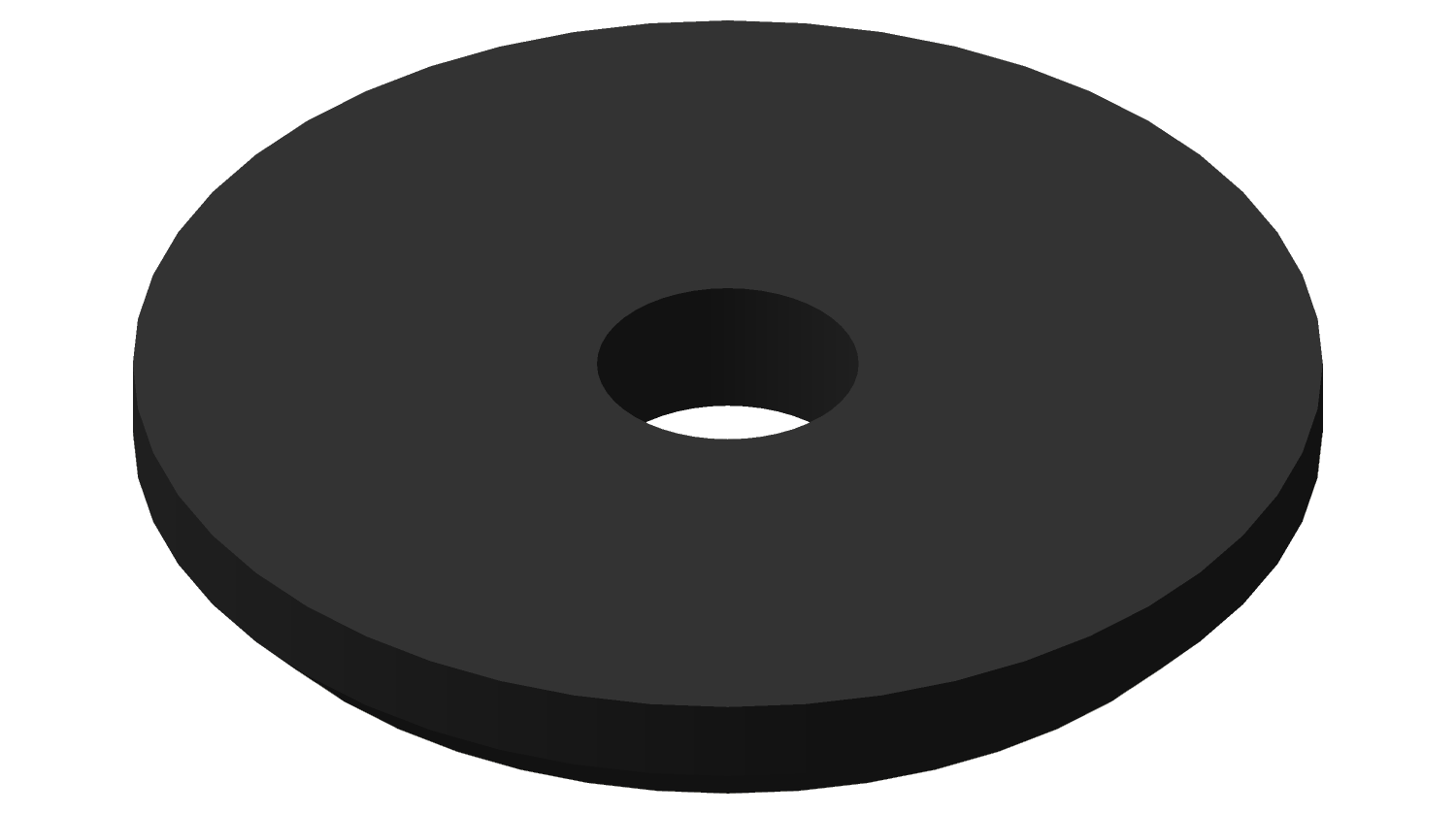

Wheel

Part: 3.02.001-6
Revision: v01
Release: 24-JAN-21
File: 3-02-001-6_v01.stl (23.5KB)
Suggested Print Settings
