Home > Products > Monorail > Trains

3.02.003 - Motor Cover - 32 Studs

Introduction

Part 3.02.003 is a monorail motor cover with 32 studs. It has the same geometry as the original LEGO® monorail motor cover.

Length: 4 studs
Width: 4 studs
Height: 6 studs

3D Models

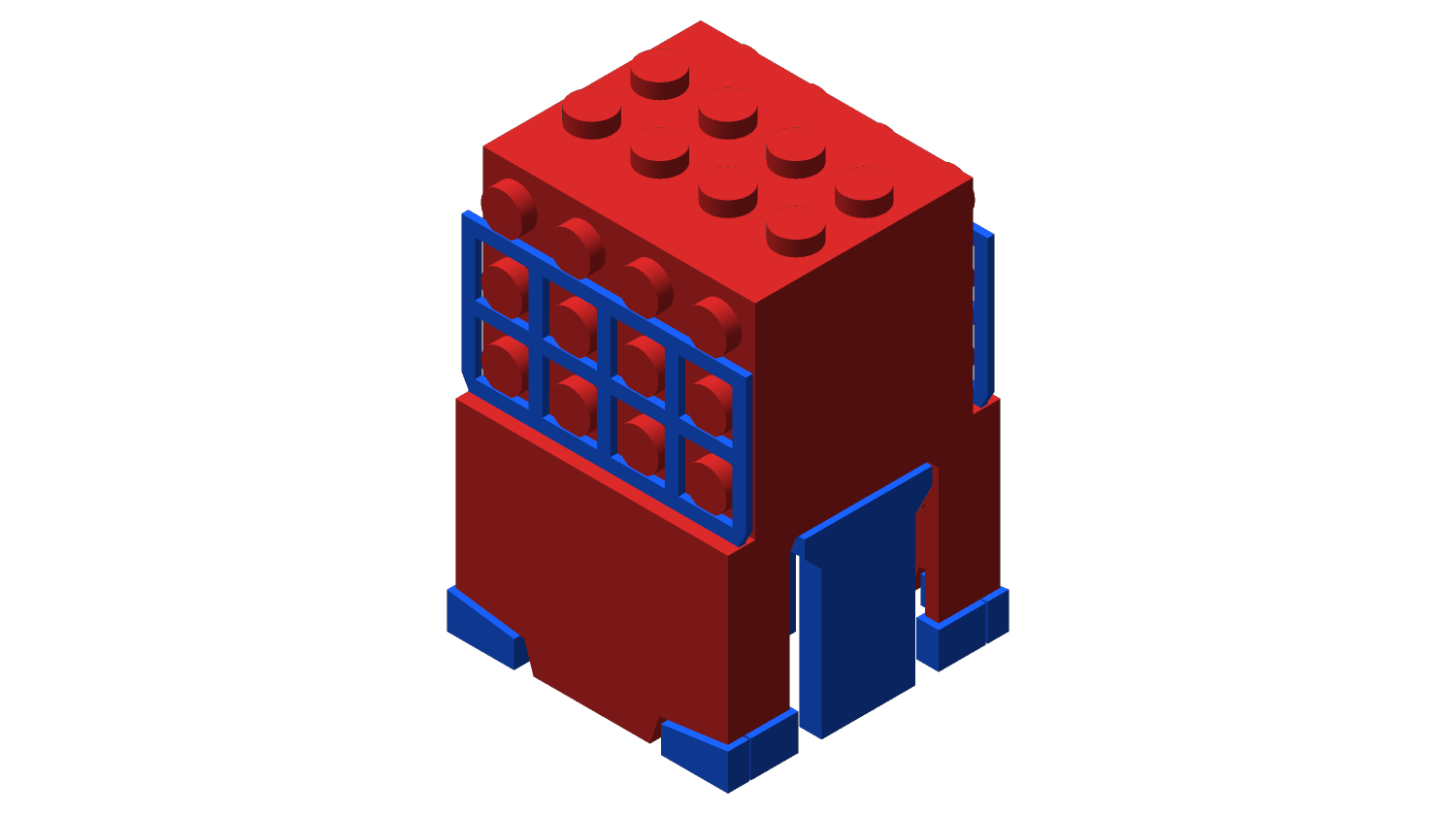

Motor Cover

Part: 3.02.003
Revision: v05
Release: 08-FEB-21
File: 3-02-003_v05.stl (271.3KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v03: 24-JAN-21 - Initial upload.
v04: 30-JAN-21 - Increase clutch power internal anti-studs.
v05: 08-FEB-21 - Correct clutch power internal anti-studs.

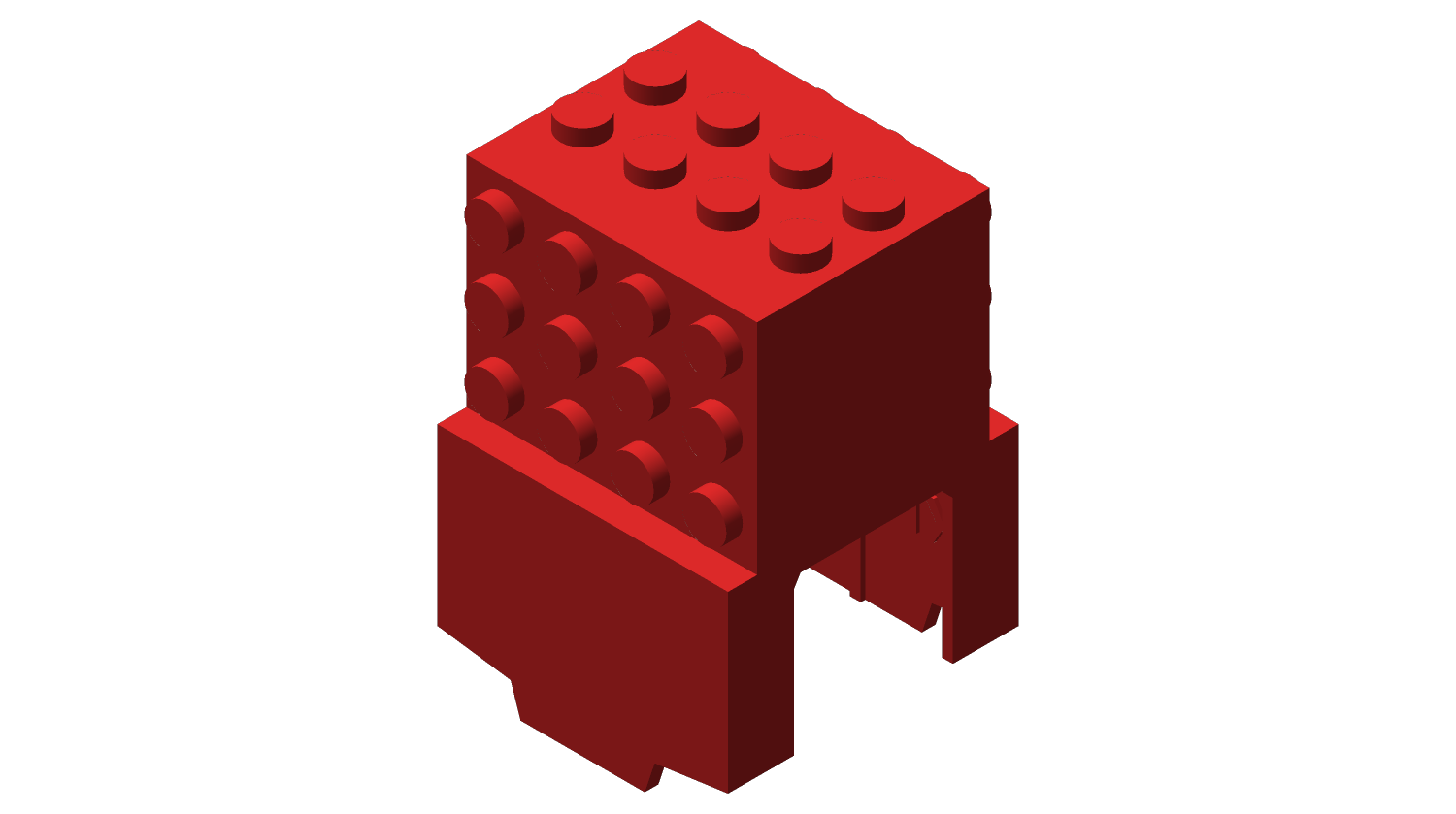

Motor Cover - No support

Part: 3.02.003
Revision: v05
Release: 08-FEB-21
File: 3-02-003-nsp_v05.stl (230.8KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20°
Infill: 30%

Model History

v03: 24-JAN-21 - Initial upload.
v04: 30-JAN-21 - Increase clutch power internal anti-studs.
v05: 08-FEB-21 - Correct clutch power internal anti-studs.

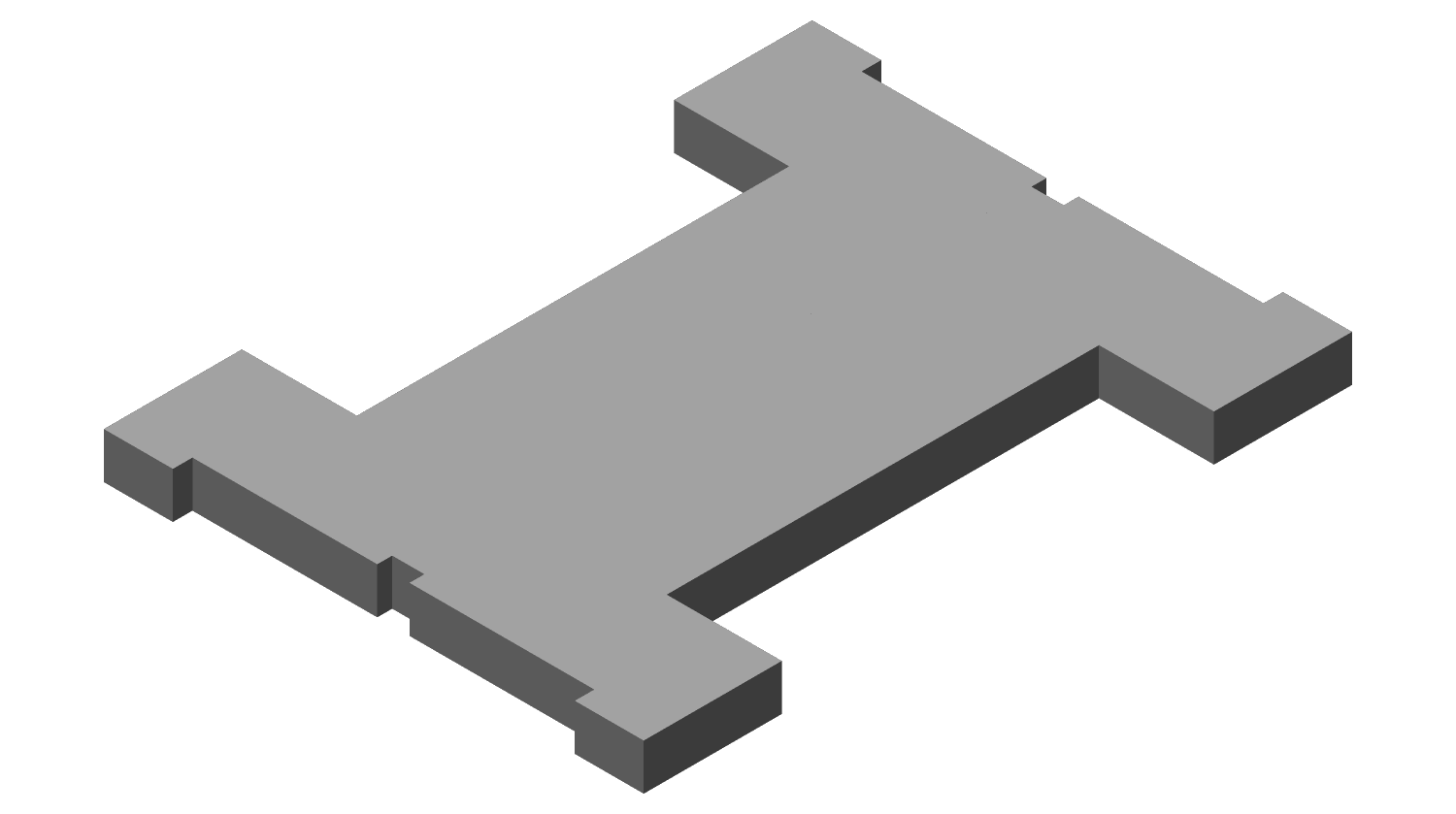

Shipping Clip

Part: 3.02.002-2
Revision: v01
Release: 24-JAN-21
File: 3-02-002-2_v01.stl (5.4KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 0
Infill: 30%
