3.02.001 - 16 Stud Long Extension Car
Introduction

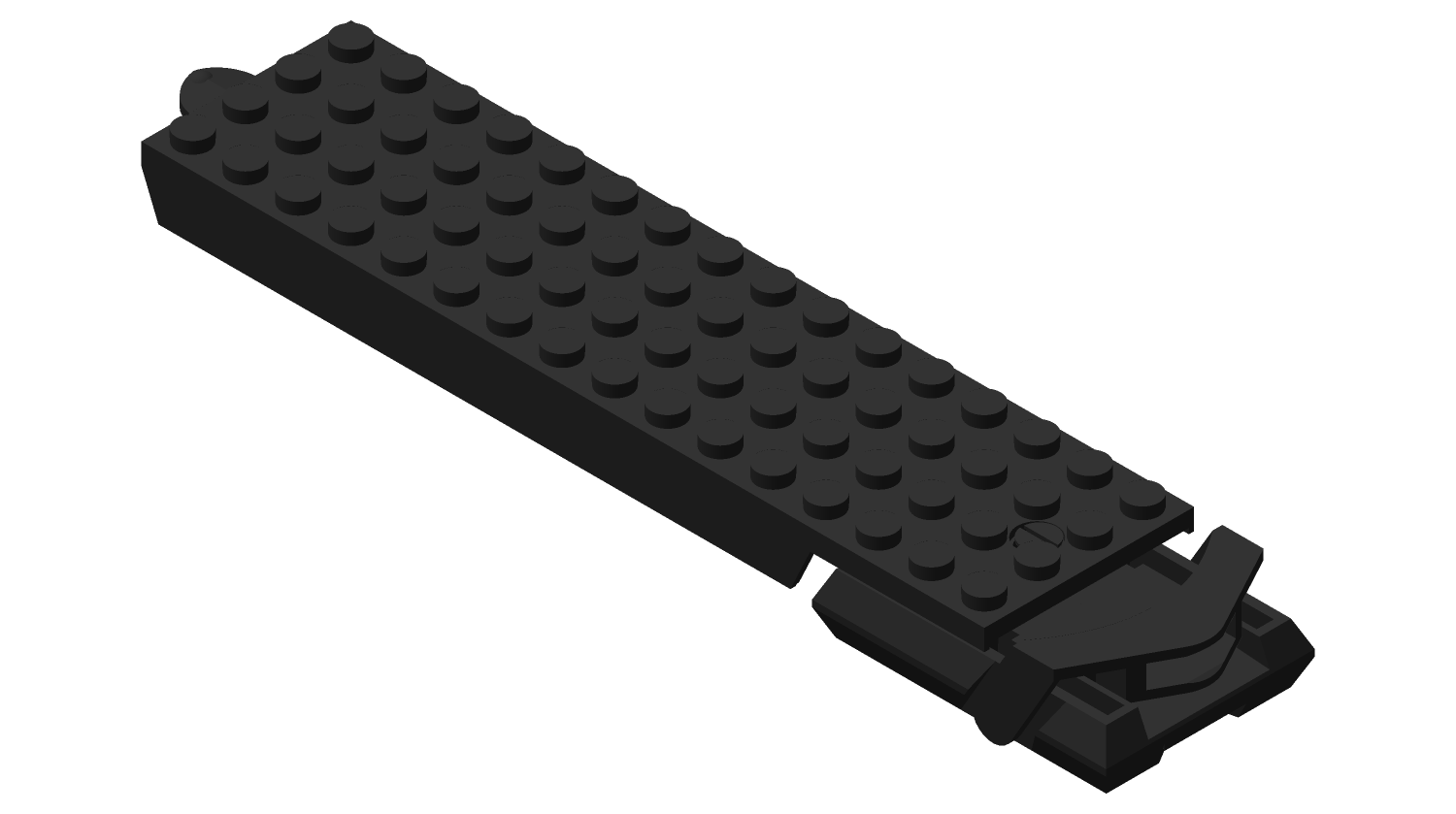

Part 3.02.001 is a 16 stud long extension car.
  • Length: 16 studs
  • Width: 4 studs
3D Models
Extension Car Bogey
Part: 3.02.001-1
Revision: v05
Release: 24-JAN-21
File: 3-02-001-1_v05.stl (90.9KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Bogey Bracket
Part: 3.02.001-2
Revision: v04
Release: 24-JAN-21
File: 3-02-001-2_v04.stl (36.6KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 245°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Coupling
Part: 3.02.001-3
Revision: v04
Release: 24-JAN-21
File: 3-02-001-3_v04.stl (64.9KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 245°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Coupling - No support
Part: 3.02.001-3
Revision: v04
Release: 24-JAN-21
File: 3-02-001-3-nsp_v04.stl (39.7KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 245°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: 20°
  • Infill: 30%

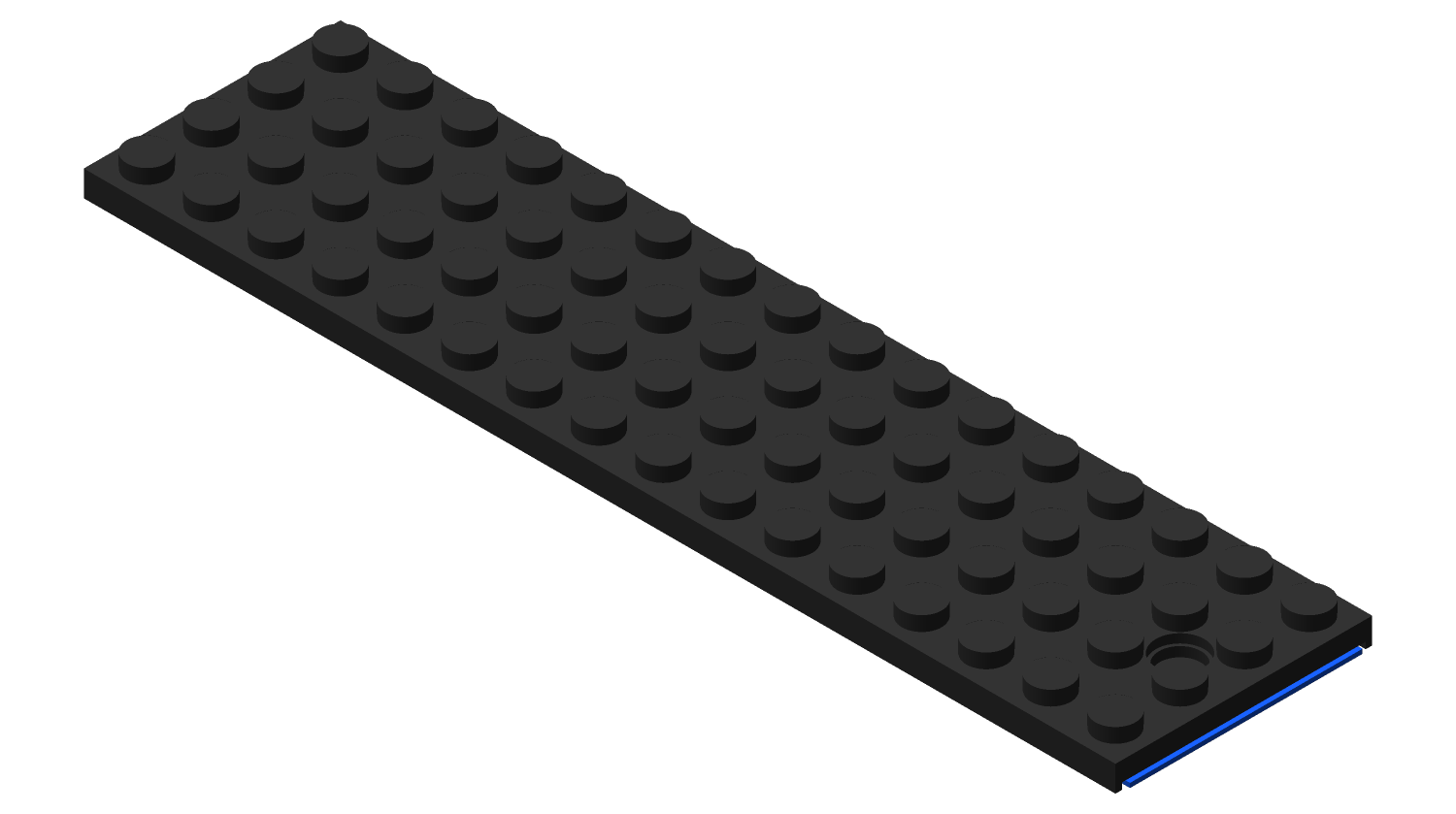

Base Plate
Part: 3.02.001-4
Revision: v06
Release: 24-JAN-21
File: 3-02-001-4_v06.stl (1,135.2KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

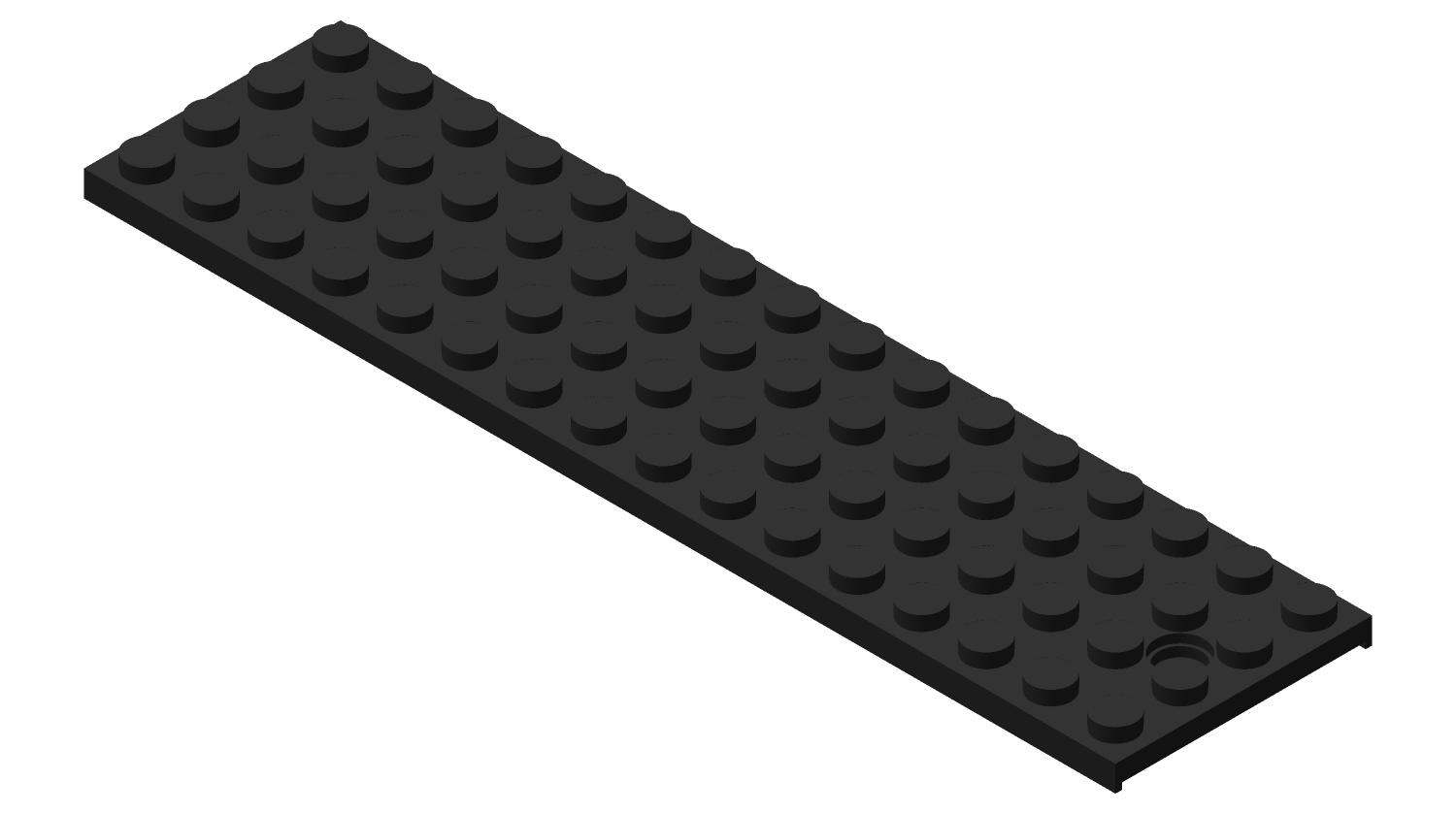

Base Plate - No support
Part: 3.02.001-4
Revision: v06
Release: 24-JAN-21
File: 3-02-001-4-nsp_v06.stl (1,130.0KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: 20°
  • Infill: 30%

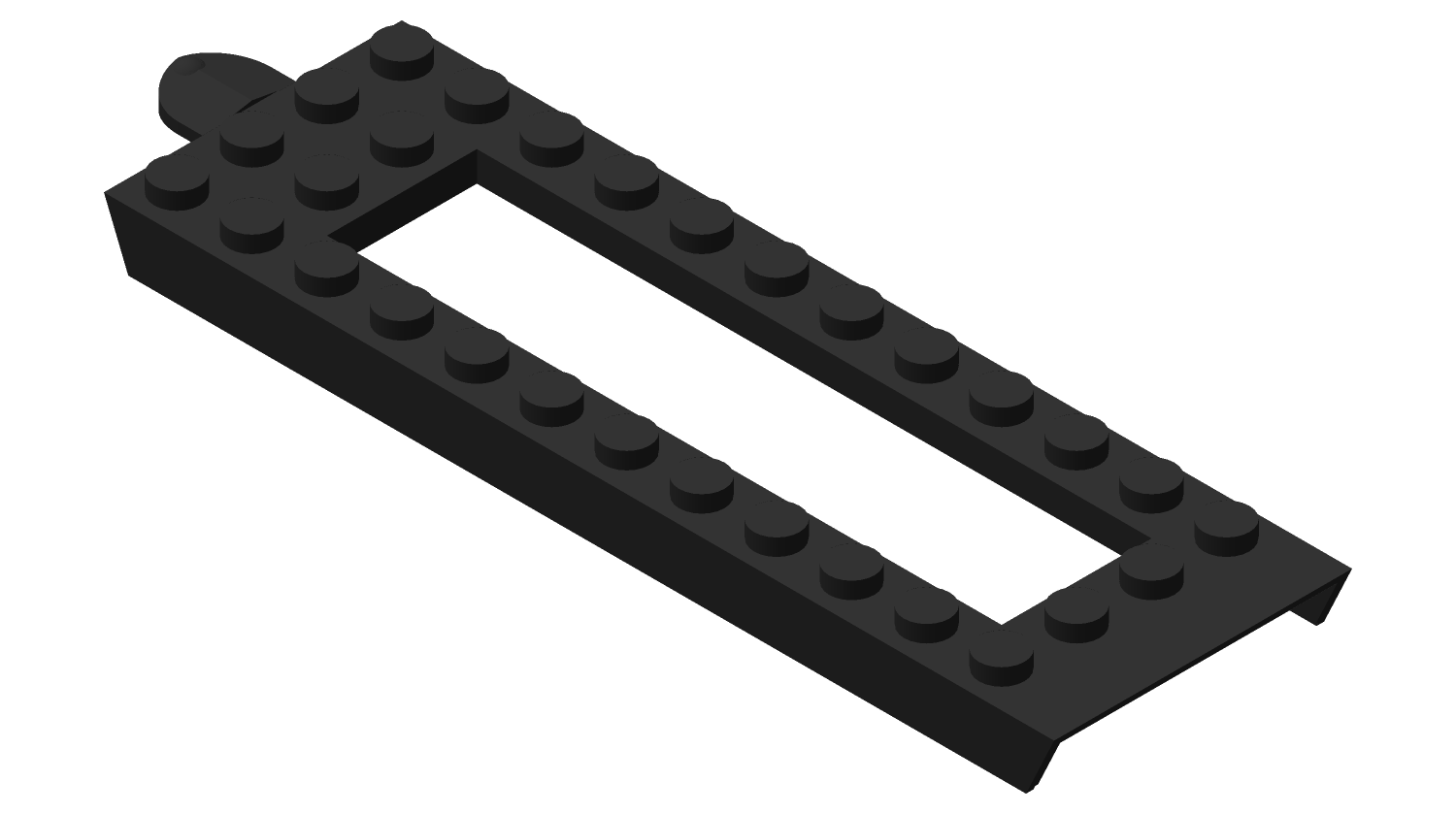

Chassis
Part: 3.02.001-5
Revision: v03
Release: 21-FEB-21
File: 3-02-001-5_v03.stl (440.4KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v02: 24-JAN-21 - Initial upload.
  • v03: 21-FEB-21 - Descretize bump on connector to have better
    stability of slicing over a wide range range of slicers.
Wheel
Part: 3.02.001-6
Revision: v01
Release: 24-JAN-21
File: 3-02-001-6_v01.stl (23.5KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%
